12 About the units and options
Installation and operation manual
16
ERA200~300AMYFB
Inverter outdoor unit for AHU option kit and air curtains
4P780153-1 – 2024.07

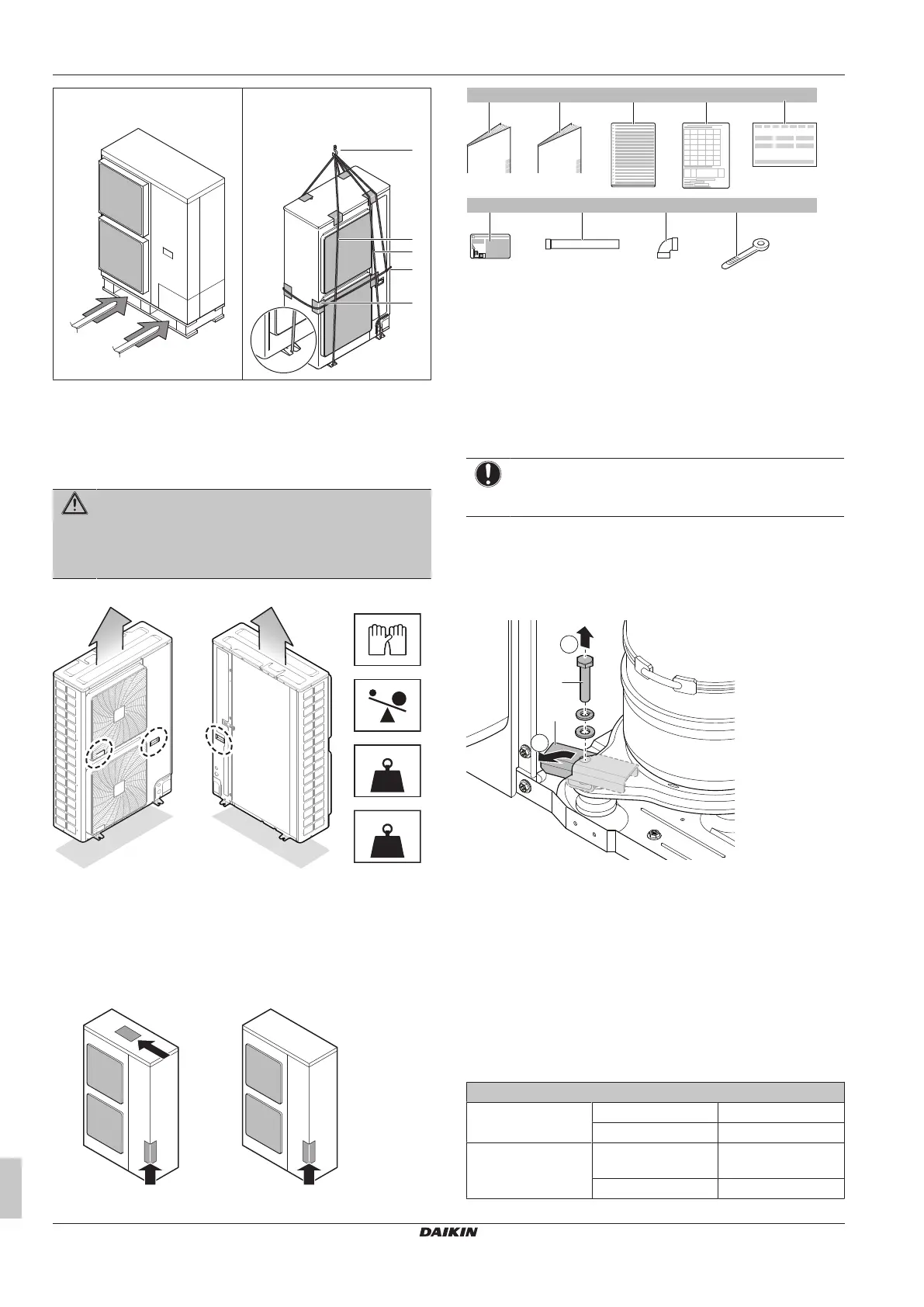

Forklift. If the unit remains on its
pallet, you can also use a forklift.
Crane. For ERA250+300
models, you can also use a
crane and lift the unit as follows:
c
b
a
b
d
a Lifting hook
b Two vertical ropes (at least 8m and Ø20mm) to lift the
unit
c One horizontal rope (also fixed to the lifting hook) to
prevent the unit from dropping
d Protective material (rags, soft material) between the
ropes and the casing to protect the casing
WARNING
The unit's center of gravity deviates to the right side
(compressor side). If you lift the unit using a crane and you
do not fix a horizontal rope to the lifting hook as shown, the
unit might drop.
Carry the unit slowly as shown:
±134
kg
ERA200
±163
kg
ERA250+300
11.2 To remove the accessories from
the outdoor unit
1 Remove the service cover. See "14.2.1 To open the outdoor
unit"[424].
2 Remove the accessories.
ERA200 ERA250+300
a
1×
b
1×
c
1×
d
1×
2× (ERA200)
3× (ERA250+300)
1×
f g h i
1×1×
e
2×
a General safety precautions
b Outdoor unit installation and operation manual
c Multilingual fluorinated greenhouse gases label
d Installation information leaflet
e Declaration of conformity
f Fluorinated greenhouse gases label
g Gas piping accessory1 (only for ERA250:Ø19.1mm)
h Gas piping accessory2 (ERA200:Ø19.1mm;
ERA250+300:Ø22.2mm)
i Cable tie (ERA200:2×; ERA250+300:3×)
11.3 To remove the transportation stay
NOTICE
If the unit is operated with the transportation stay attached,
abnormal vibration or noise may be generated.
The transportation stay for protecting the unit during transport must
be removed. Proceed as shown in the figure and procedure below.
1 Remove the bolt (a) and washers.
2 Remove the transportation stay (b) as shown in the figure
below.
1
2
a
b
a Bolt
b Transportation stay
12 About the units and options
12.1 About the outdoor unit
This installation manual concerns the ERA , full inverter driven, heat
pump system.
These units are intended for outdoor installation and aimed for
heating/cooling, and fresh air or air curtain applications.
Specification
Capacity Heating 25~37.5kW
Cooling 22.4~33.5kW
Ambient design
temperature
Heating –20~21°CDB
–20~15.5°CWB
Cooling –5~52°CDB
