15 Electrical installation
Installation and operation manual
26
EKEACBVE + EKEXVA50~500
Option kit for combination of Daikin outdoor units with field-
supplied air handling units
4P724517-1B – 2024.03

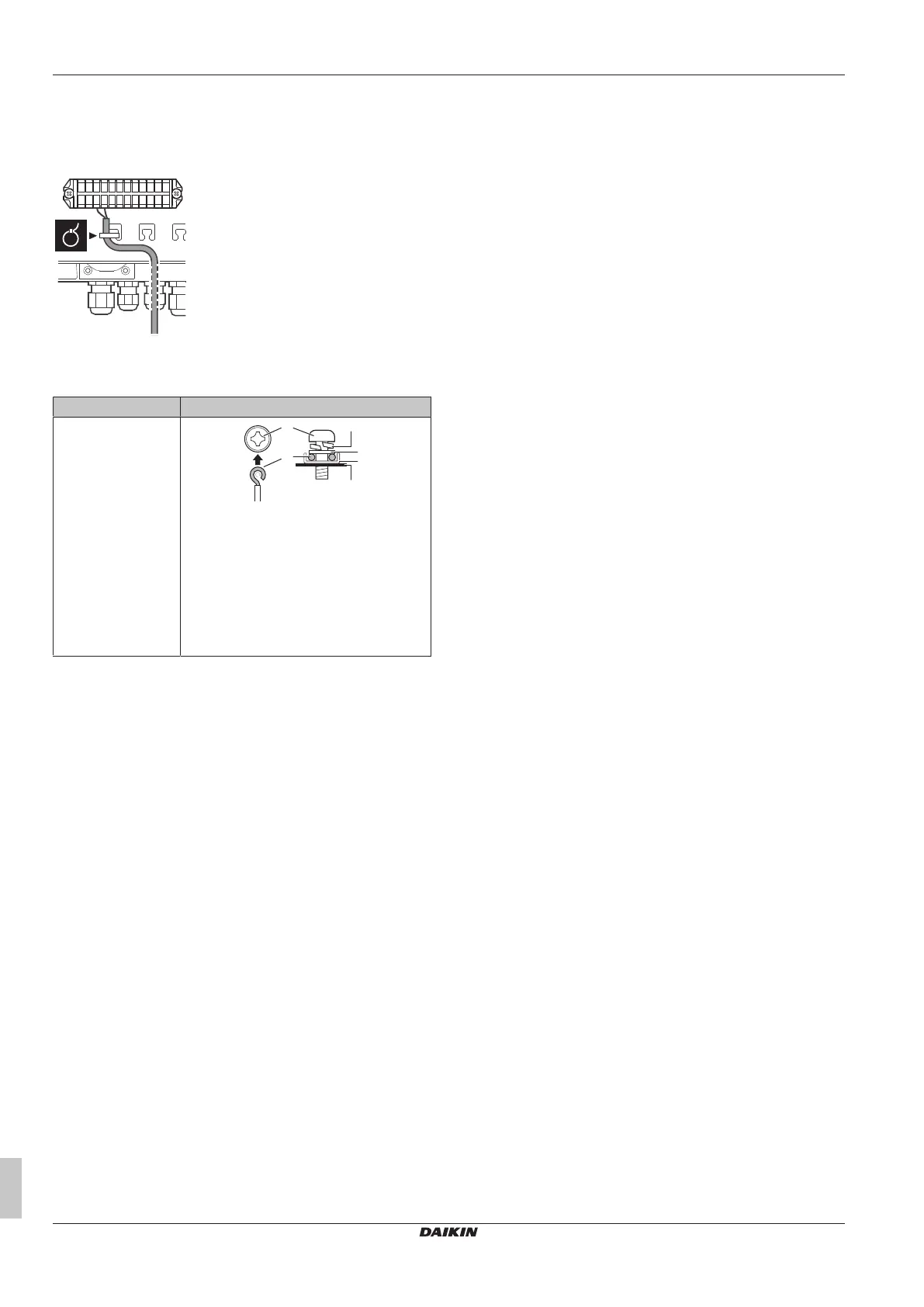

3 Pull the cables inside the control box through their dedicated
cable glands (as shown below: H1~H9) and close the screw nut
firmly in order to ensure good pull relief and water protection.
4 For all cables, provide an additional pull relief inside the control
box. The figure below shows one example.
5 Connect the earth wire of the power supply to the sheet metal
inside the EKEA as shown below to make sure that the earth
connection is rigidly fixed.
Wire type Installation method
Single-core wire
Or
Stranded conductor
wire twisted to "solid-
like" connection
d
a
b c
f
e
a Clockwise curled wire (single-core or
twisted stranded conductor wire)
b Screw
c Spring washer
d Flat washer
e Coupling washer
f Sheet metal
