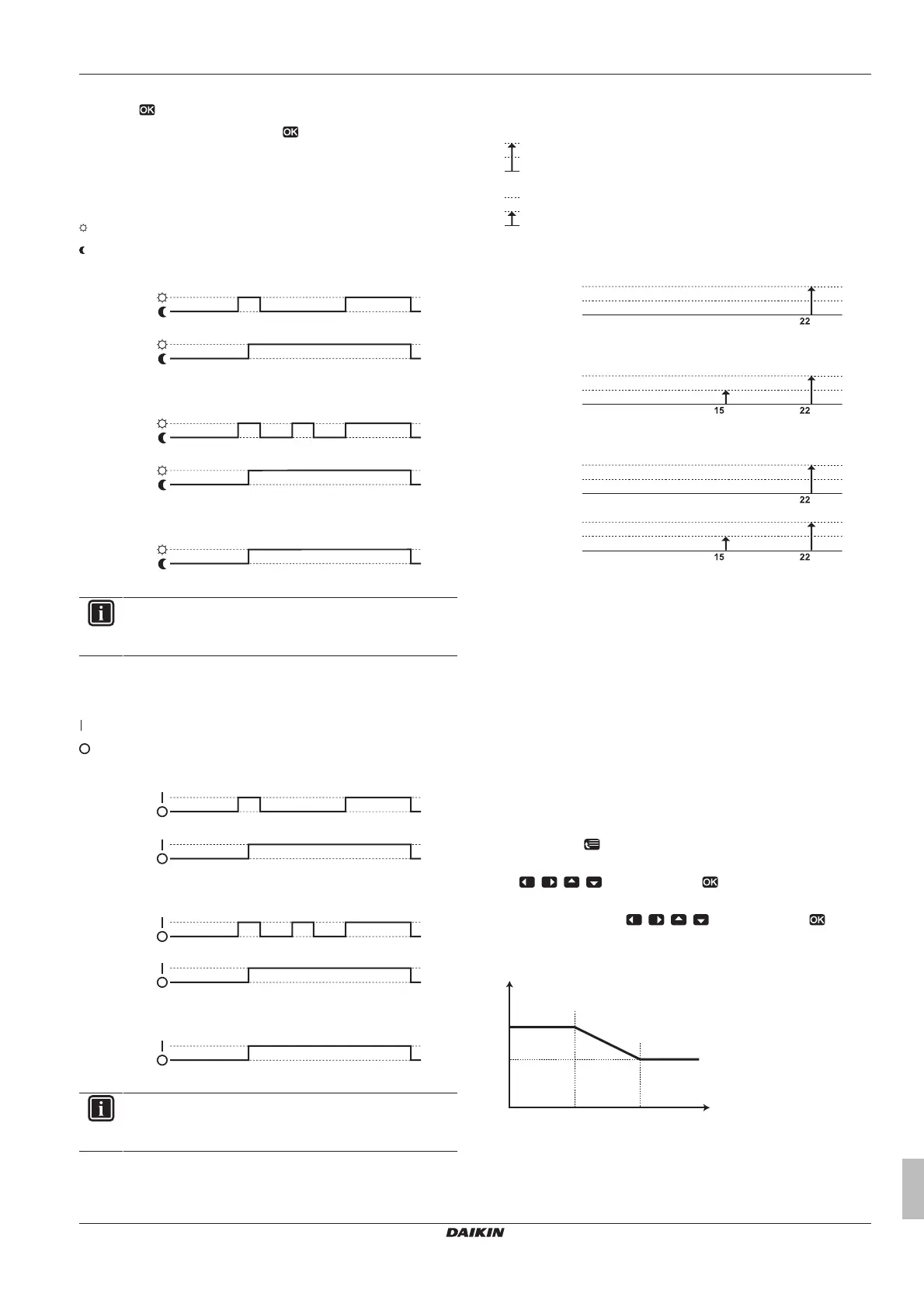

4 Operation
User reference guide
17
EBLQ05+07CAV3 + EDLQ05+07CAV3 + EKCB07CAV3 +
EK2CB07CAV3 + EKMBUHCA3V3 + EKMBUHCA9W1
Daikin Altherma low temperature monobloc
4P405545-1 – 2015.03
2 Select User defined 1, User defined 2 or User defined 3 and
press .
3 Change the name and press . (Only applicable for room
temperature schedules). Example: MyWeekSchedule
4.7.4 Predefined schedules: Room temperature
+ leaving water temperature (main)
: Desired temperature = Preset value (Comfort)
: Desired temperature = Preset value (Eco)
Predefined 1
Mon - Fri
07:00 09:00 17:00 23:00
Sat - Sun
23:0008:00
Predefined 2
Mon - Fri
07:00 09:00 17:0012:00 23:0014:00
Sat - Sun
23:0008:00
Predefined 3
Mon - Sun
23:0008:00
INFORMATION
The predefined schedules are applicable for both heating
and cooling operation.
4.7.5 Predefined schedules: Leaving water
temperature (additional)
: Additional zone = On
: Additional zone = OFF
Predefined 1
Mon - Fri
07:00 09:00 17:00 23:00
Sat - Sun
08:00 23:00
Predefined 2
Mon - Fri
07:00 09:00 17:0012:00 23:0014:00
Sat - Sun
08:00 23:00
Predefined 3
Mon - Sun
08:00 23:00
INFORMATION
The predefined schedules are applicable for both heating
and cooling operation.
4.7.6 Predefined schedules: DHWtank
temperature
a
: Start production of domestic hot water. Desired DHW tank
temperature = Preset value (Storage comfort)
b
: Start production of domestic hot water. Desired DHW tank
temperature = Preset value (Storage eco)
Predefined 1
Mon - Sun
a
b
:00
Predefined 2
Mon - Sun
a
b
:00 :00
Predefined 3
Mon - Fri
a
b
:00
Sat - Sun
a
b
:00 :00
4.8 Weather dependent operation
In space heating/cooling control, the leaving water temperature
setpoint mode can be:
▪ Fixed
▪ Weather-dependent (the leaving water temperature is determined
automatically depending on the outdoor temperature)
To select the setpoint mode, see the installer reference guide.
To set the parameters for the weather-dependent curve, see below.
4.8.1 To set the weather dependent settings
Prerequisite: You switched the permission level to Advanced end
user.
1 Go to [7.7]: > User settings > Set weather dependent.
2 For main leaving water temperature zone [7.7.1], modify with
, , , , and confirm with .
3 If applicable, for additional leaving water temperature zone
[7.7.2], modify with , , , , and confirm with .
Set weather-dependent heating/Set weather-dependent cooling
d
c
T
a
T
t
a b
T
t
Target leaving water temperature
T
a
Outdoor temperature
a Low outdoor ambient temperature
b High outdoor ambient temperature
