User’s Manual EM11A015H
intelligent Touch Manager
53

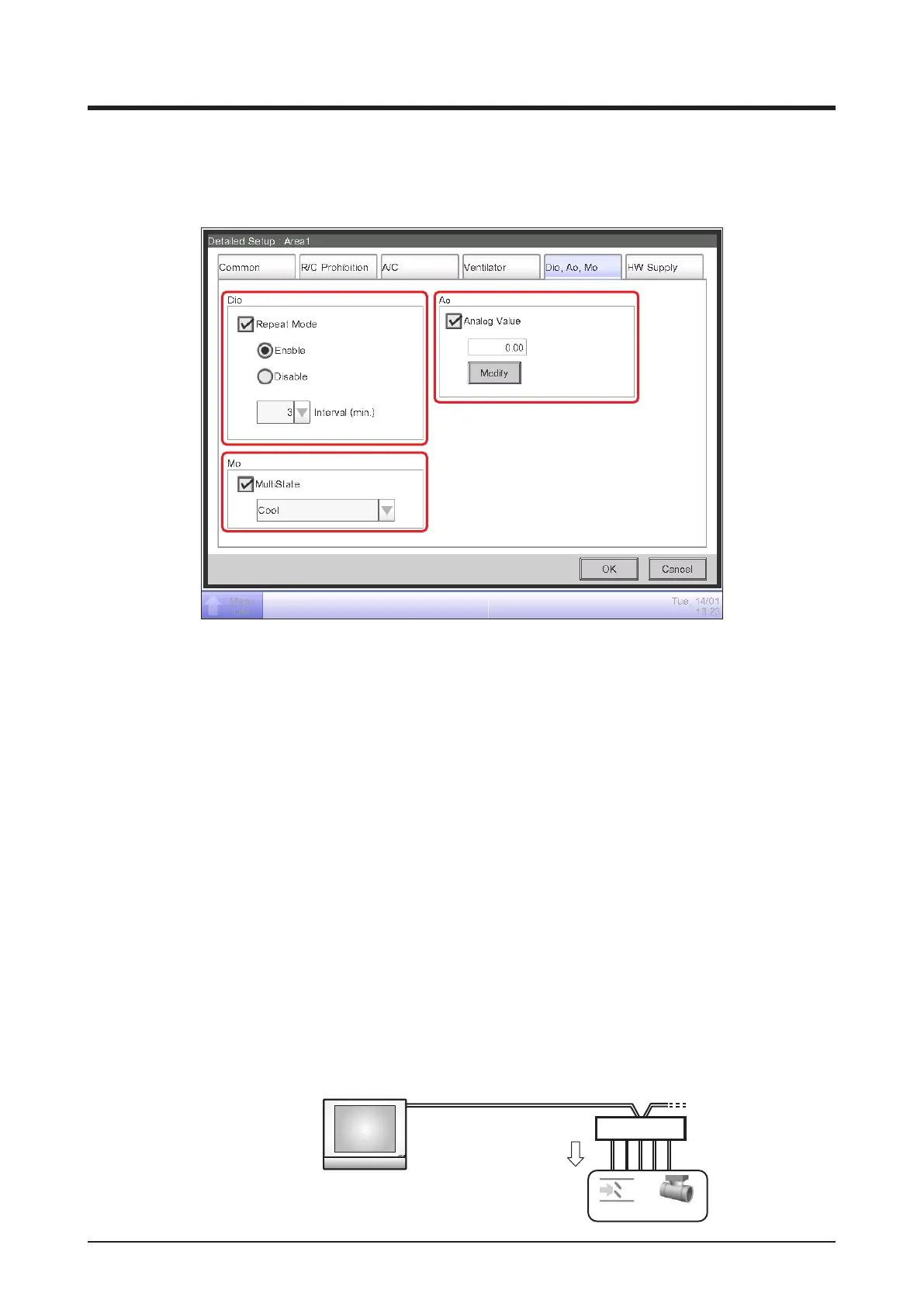

• Dio, Ao, Mo Tab
Sets up the Dio, Ao and Mo.
Change settings by selecting the relevant check boxes.
(1)
(2)
(3)
(1) Dio
Enable/disable Repeat Mode for Dio, and select and set up a repetition interval in the 1 to
10-minutes range, in increments of 1 minute.
When the Repeat Mode is enabled, a start/stop attempt will be repeated again at the specied
repetition interval.
(2) Ao
Ao refers to analog signal output.
This function enables the signal output equipment (I/O module) connected to the iTM to output a
current/voltage corresponding to the adjustment value from external equipment.
(It is used for the adjustment of building equipment, such as degree of aperture of a damper/valve.)
The range, incremental width, and unit of the analog values are set on the screen during trial.
(The unit setting may not be available.)
Ao control image (Example: Changing the degree of damper aperture)
(1) On the iTM, set the degree of aperture (analog value).
(2) A voltage corresponding to the analog value is output from the I/O module.
(3) The damper aperture is set according to the input voltage.
iTM
(1) Ao Setting
Set degree of aperture
to 50 (%).
(2) I/O module
Voltage output
(3) Damper
Set to 50% aperture
according to input
voltage.
I/O module
Damper Valve
