User’s Manual EM11A015H
intelligent Touch Manager
40
3. Names and Functions of Each Part
3-1 Front Panel and Side View
(2)
(1)
(3) (4) (5) (6) (7) (8) (9)
(10)
(11)
<Side>

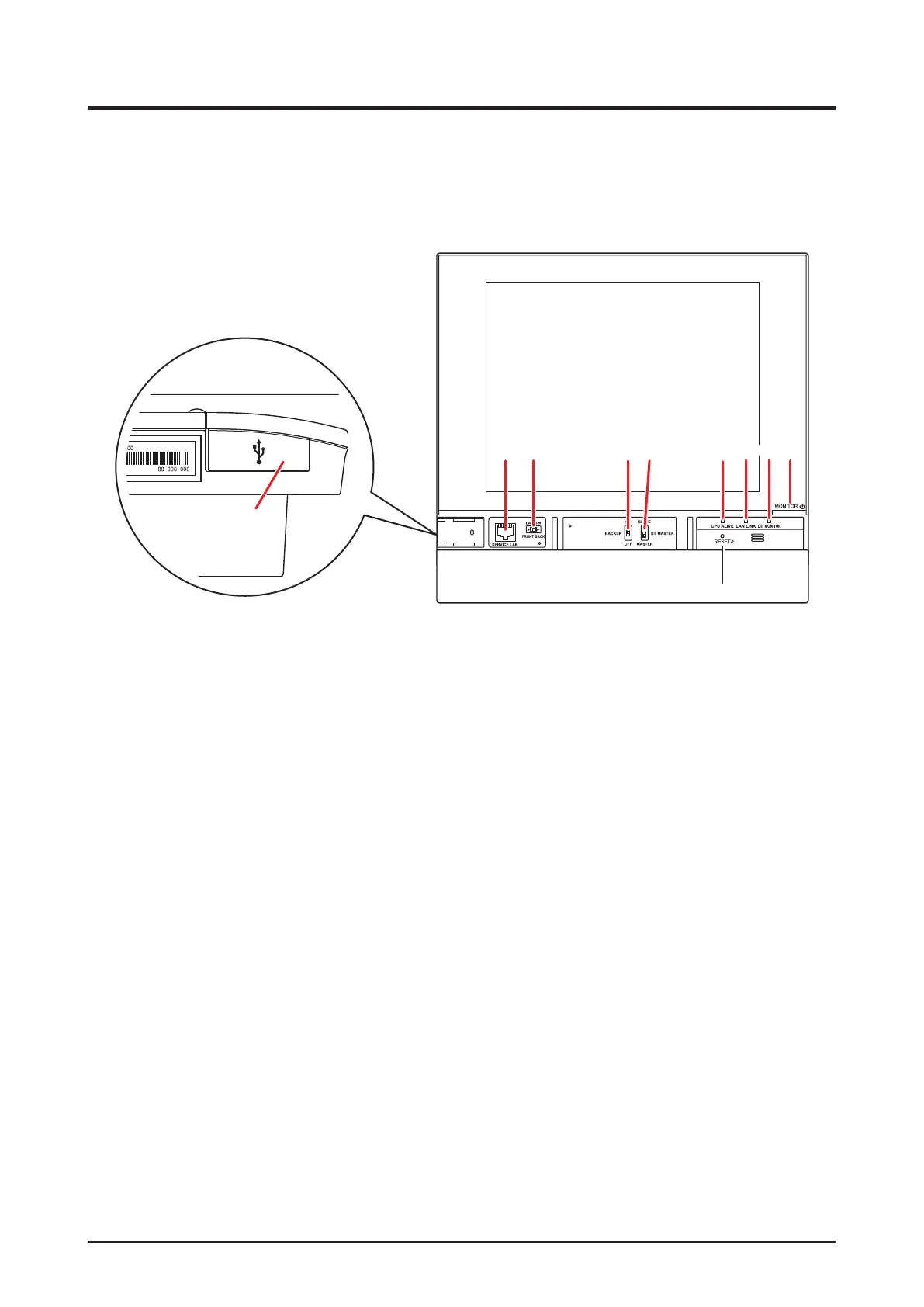

<Front panel>
(1) MONITOR
LCD touch panel for monitoring and performing operations.
(2) SERVICE LAN
Service LAN connection port. Unused.
(3) LAN SW
Switch for toggling between the LAN port on the rear and the SERVICE LAN port on the front.
When set to FRONT, you cannot close the cover.
To close the cover, set it to Back. (Be careful not to touch the switch inadvertently.)
(4) BACKUP
Power ON/OFF switch for settings backup battery. (Be careful not to touch the switch inadvertently.)
(5) DIII MASTER
Switch for setting up the MASTER and SLAVE when there are two or more DIII-NET central control
devices such as the intelligent Touch Manager.
(6) CPU ALIVE (Green)
This LED ashes when the CPU is operating normally.
If it is not flashing, an operational error occurred in the CPU. (It takes about 10 seconds to
determine the cause of an error.)
On: Software error
Off: Hardware error, power-off
Names and Functions
