User’s Manual EM11A015H
intelligent Touch Manager
143

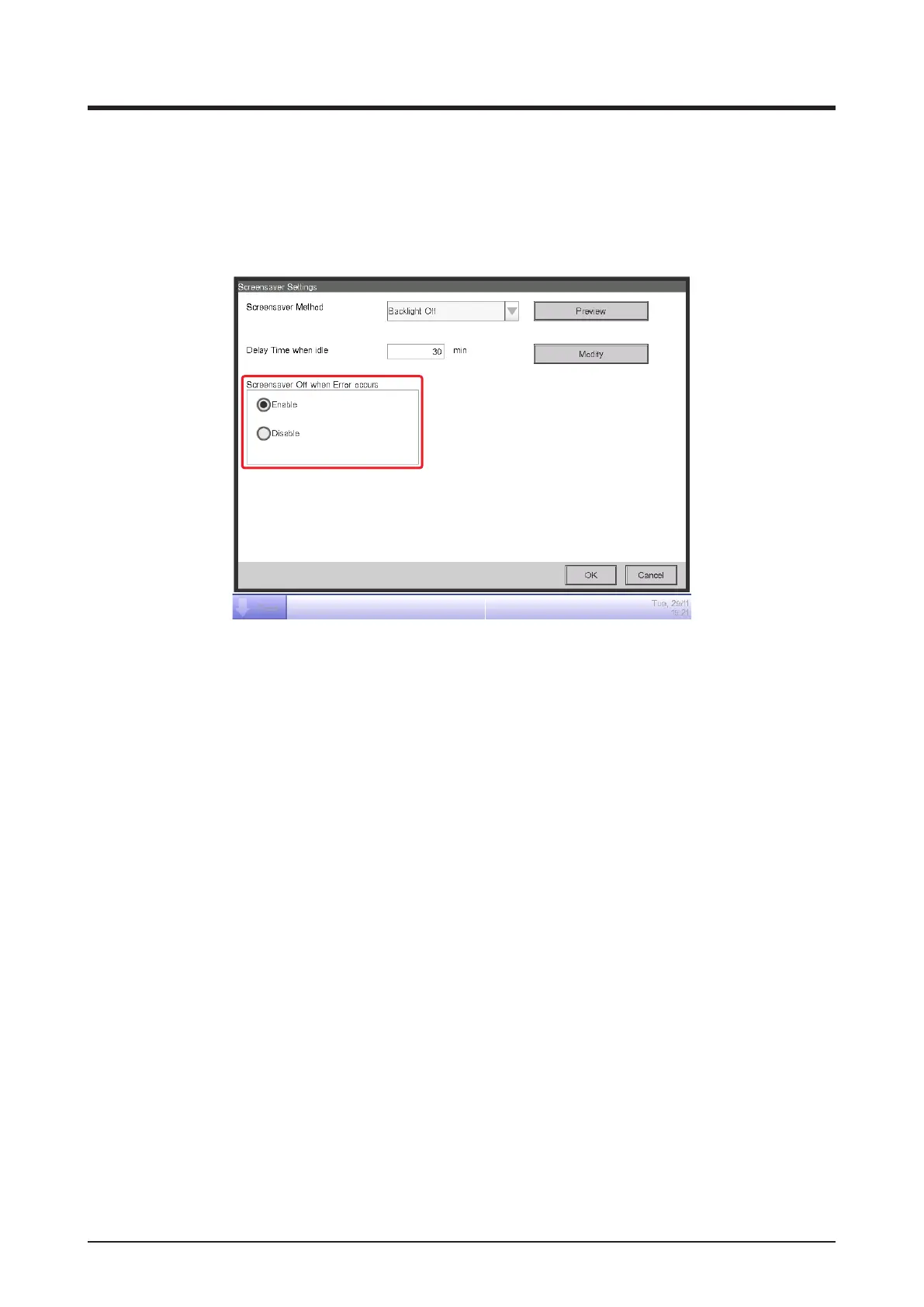

6-7 Setting up the Screensaver
You can set up or change the screensaver, as well as set up the setting for turning the screen off.
1. Touch the Screensaver button on the System Settings tab of the Menu List screen and display
the Screensaver Settings screen (see “4-5 Menu List Screen: System Settings Tab”).
(4)
(1)
(2)
(3)
2. Enable/disable and set up the screensaver type using the Screensaver Method (1) combo box.
Select from Disable, Backlight Off, Screen1, Screen2, and Screen3. Selecting Backlight Off will
turn off the screen when the idle time set in step 3 elapses.
Touch the Preview button (2) to preview the selected screensaver. Touch the screen to return to
the Screensaver screen.
3. Touch the Modify button (3) and enter the idle time until displaying the screensaver or turning
off the screen. You can specify an idle time of 1 to 60 minutes.
4. To automatically stop the screensaver, sound the buzzer, and display the Error Notication icon
when an error occurs while the screensaver is being displayed or when the emergency stop
occurred, select the Screensaver Off when Error occurs radio button (4).
To continue displaying the screensaver, select Disable.
5. Touch the OK button to close the screen.
