User’s Manual EM11A015H
intelligent Touch Manager
178

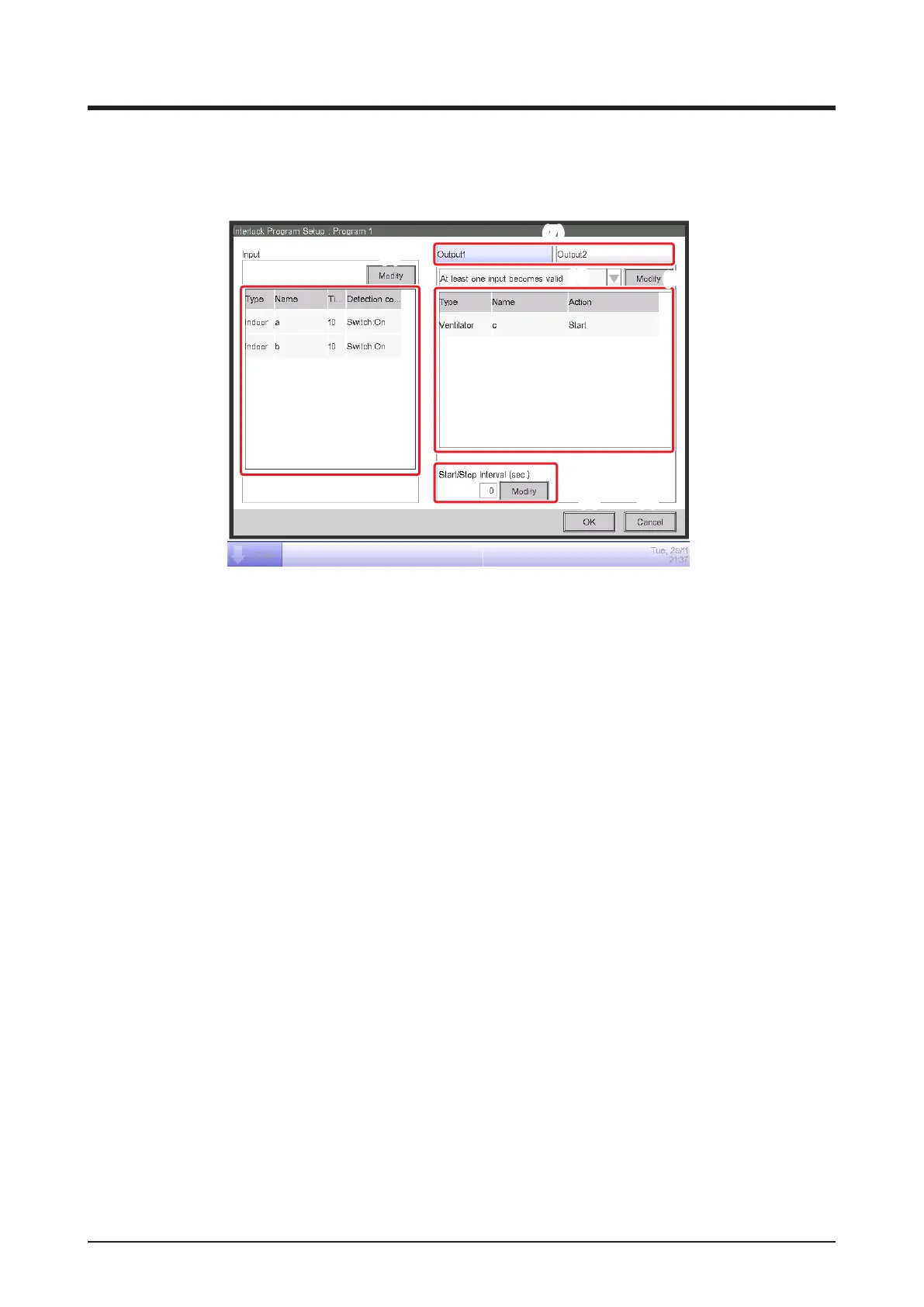

• Interlock Program Setup Screen
This screen is displayed when you touch the Edit button on the main Interlocking Control screen.
Sets up details for the interlocking program.
(2)
(1)
(7)
(3)
(4)
(5)
(6)
(8) (9)
(1) Input list
Displays the input conditions of the interlocking program.
(2) Modify button (Input)
Displays the Interlock Program Input screen that allows you to set the input conditions for
interlocking.
(3) Output list
Displays the outputs of the interlocking program.
(4) Input condition combo box
Selects the input conditions for an interlocking program output.
Select an input condition from: Not detected, At least one input becomes valid, All inputs become
valid, At least one input becomes invalid, and All inputs become invalid.
(5) Modify button (Output)
Displays the Interlock Program Output Setup screen that allows you to set up the event to be
output by the interlocking program.
(6) Sequential Start/Stop interval [sec.] eld
Sets up the delay for the outputs. When sending a switch order to multiple management points,
you can set up an interval for outputting the orders.
Touch the Modify button and enter the time in the Numerical Input dialog that appears.
The range of values you can enter is 0 to 60 seconds, in increments of 1 second.
(7) Output1/Output2 selection tab
Toggles between settings for Output1 and Output2. You can set up to two outputs to one
interlocking program.
(8) OK button
Saves the edit and closes the screen.
(9) Cancel button
Cancels the edit and closes the screen.
