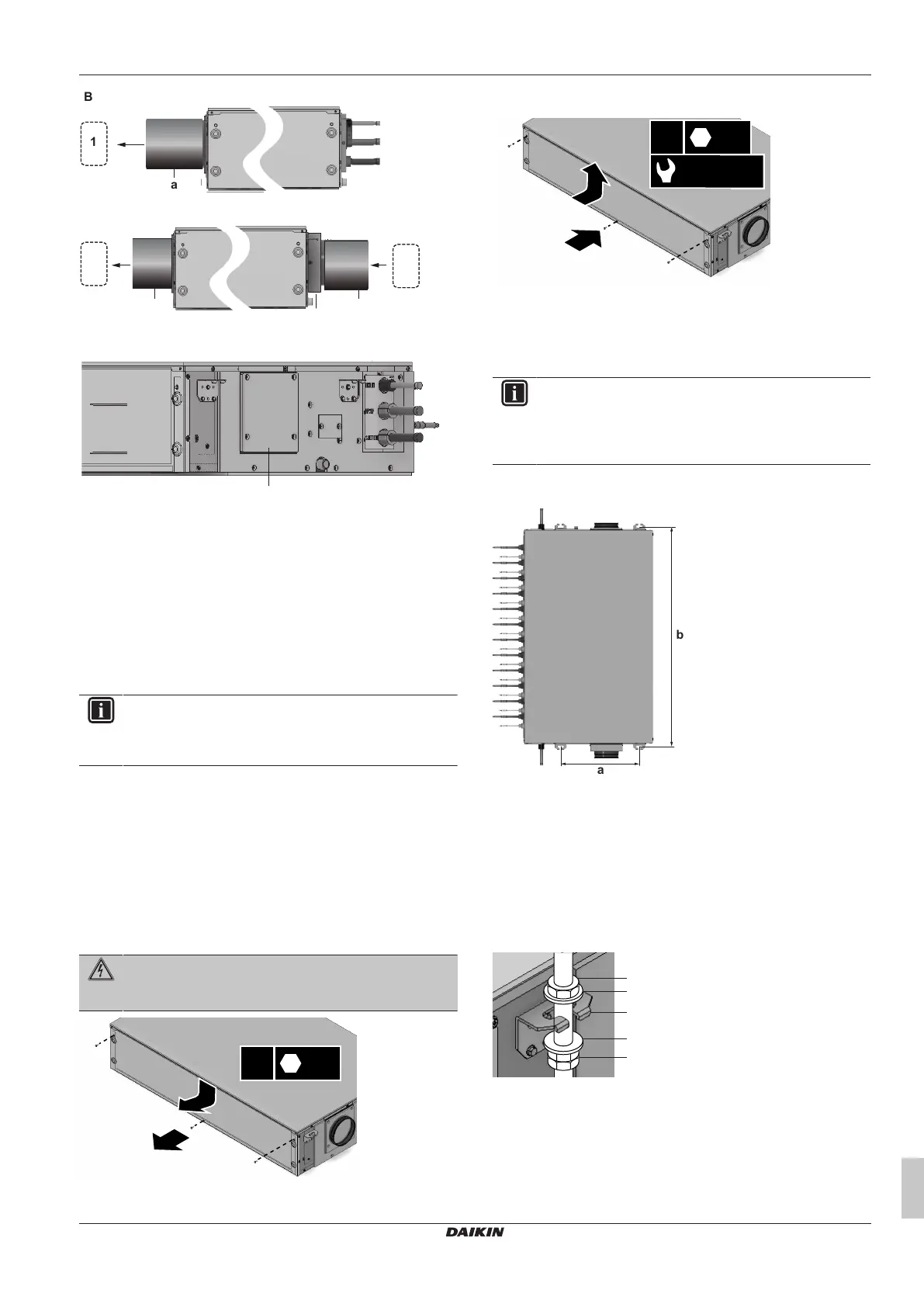

13 Unit installation
Installation and operation manual
25
BS4~12A14AJV1B9
VRV 5 branch selector unit
4P797565-1 – 2024.11
1
B
a
2
1
B’
a
a
b
C
c
A Default flow. Only ducting on the air outlet side. (Default
configuration)
A' Default flow. Ducting on both sides.
B Reversed flow. Only ducting on the air outlet side.
B' Reversed flow. Ducting on both sides.
C No extraction ventilation installed.
1 To extraction fan or another BS unit
2 From another BS unit
a Duct (field supply)
b EKBSDCK (option kit)
c Duct closing plate (accessory)
In case you need to reverse the airflow, switch the air inlet and outlet
side. See "13.5.3To switch the air in- and outlet side"[428].
INFORMATION
Some options may require additional service space. Sees
the installation manual of the used option before
installation.
13.3 Opening and closing the unit
13.3.1 About opening the unit
Some situations in which you have to open the unit can be:
▪ When connecting the electrical wiring.
▪ When maintaining or servicing the unit.
13.3.2 To open the unit
DANGER: RISK OF ELECTROCUTION
Do NOT leave the unit unattended when the service cover
is removed.
1
2
3× SW8
13.3.3 To close the unit
2
1
3× SW8
≤ 3.2 N·m
13.4 Mounting the unit
13.4.1 To mount the unit
INFORMATION
Optional equipment. When installing optional equipment,
also read the installation manual of the optional equipment.
Depending on the field conditions, it might be easier to
install the optional equipment first.
1 Install four M8 or M10 suspension bolts into the ceiling slab.
Respect the following distances:
a
b
a Suspension bolt pitch (length): 513mm
b Suspension bolt pitch (width):
630mm (BS4A)
1030mm (BS6~8A)
1430mm (BS10~12A)
2 Install a nut, two washers and a double nut onto each
suspension bolt. Leave enough space for maneuvering with the
unit between the nut and double nut.
3 Position the unit by hooking the hanger brackets of the unit
around the suspension bolts, in between the two washers.
a
b
b
d
c
a Nut (field supply)
b Washer (field supply)
c Hanger bracket
d Double nut (field supply)
