12 Special requirements for R32 units
Installation and operation manual
20
BS4~12A14AJV1B9
VRV 5 branch selector unit
4P797565-1 – 2024.11
Field settings
Multiple BS units in parallel – one extraction fan
Code Description Value
[2-0]
(a)
Cluster indication 1: enable
[2-1]
(a)
Cluster number #
(b)
[2-2]
(a)
Cluster configuration 0 (default): parallel
[2-4]
(c)
Safety measures 1 (default): enable
[2-7]
(c)
Ventilated enclosure 1 (default): enable
(a)
Set on ALL main PCBs (A1P, A2P and A3P) of the BS unit.
(b)
Assign a unique cluster number to each cluster in the system. All
BS units in the same cluster MUST have the same cluster
number.
(c)
Set ONLY on the LEFTMOST main PCB (A1P) of the BS unit.
Note: For more information, see "16.1Making field settings"[436].
BS unit test run
Before BS unit operation, it is required to perform a test run that
simulates a refrigerant leak. See "17.2 BS unit test run" [4 40] for
more details.

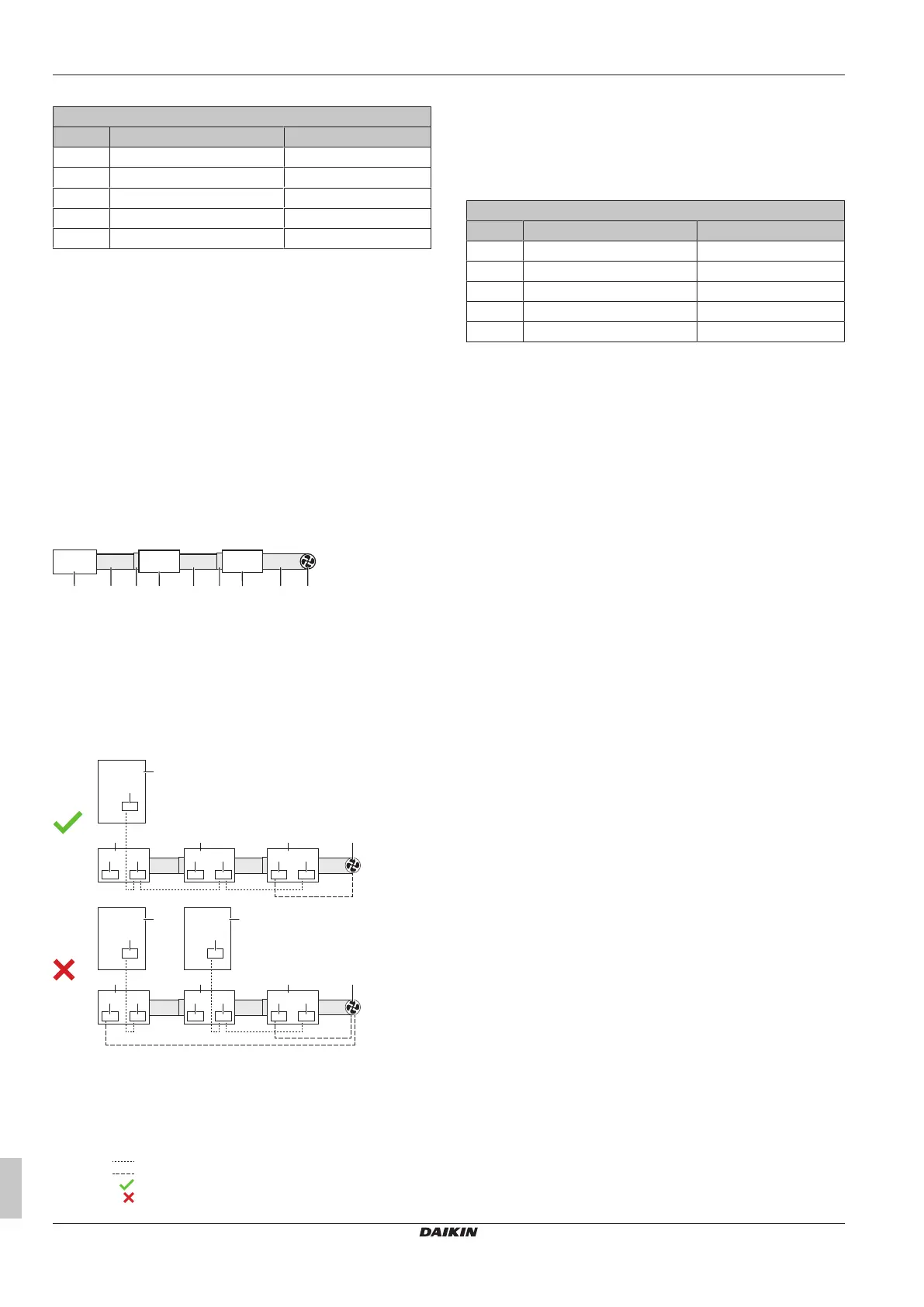

Multiple BS units in series – one extraction fan
In this configuration, multiple BS units are connected in series to a
single extraction fan. The air flows through every BS unit to the
extraction fan. In case of a refrigerant leak in any BS unit, the
dampers of all BS units will open and allow air evacuation to the
extraction fan.
a a a db cc bb
a BS unit
b Ductwork
c EKBSDCK
d Extraction fan
It is sufficient to connect the extraction fan circuit to only one BS unit
of the cluster (see "15.5To connect the external outputs"[435]). It
is not allowed to have BS units in the same series cluster that belong
to different outdoor unit systems.
Example
a a a f
c e c e d e
A
e
a b b f
d e c e d e
A
e
B
e
a BS unit belonging to outdoor unit A
b BS unit belonging to outdoor unit B
c Extraction fan output terminal – NOT connected
d Extraction fan output terminal – connected
e Interconnection wiring terminal
f Extraction fan
A Outdoor unit A
B Outdoor unit B
Interconnection wiring
Extraction fan output wiring
Allowed
NOT allowed
The option kit EKBSDCK is required each time a duct is connected
to the air inlet (damper side) of the BS unit.
An online tool (VRV Xpress) is available to find the required pressure
capacity for selecting the correct fan size. Only use this online tool
for the calculation.
Field settings
Multiple BS units in series – one extraction fan
Code Description Value
[2-0]
(a)
Cluster indication 1: enable
[2-1]
(a)
Cluster number #
(b)
[2-2]
(a)
Cluster configuration 1: series
[2-4]
(c)
Safety measures 1 (default): enable
[2-7]
(c)
Ventilated enclosure 1 (default): enable
(a)
Set on ALL main PCBs (A1P, A2P and A3P) of the BS unit.
(b)
Assign a unique cluster number to each cluster in the system. All
BS units in the same cluster MUST have the same cluster
number.
(c)
Set ONLY on the LEFTMOST main PCB (A1P) of the BS unit.
Note: For more information, see "16.1Making field settings"[436].
BS unit test run
Before BS unit operation, it is required to perform a test run that
simulates a refrigerant leak. See "17.2 BS unit test run" [4 40] for
more details.
