10 | Finishing the outdoor unit installation

Installer reference guide

59

AZAS100~140MUV/Y

Sky Air Active-series

4P743509-1B – 2024.05

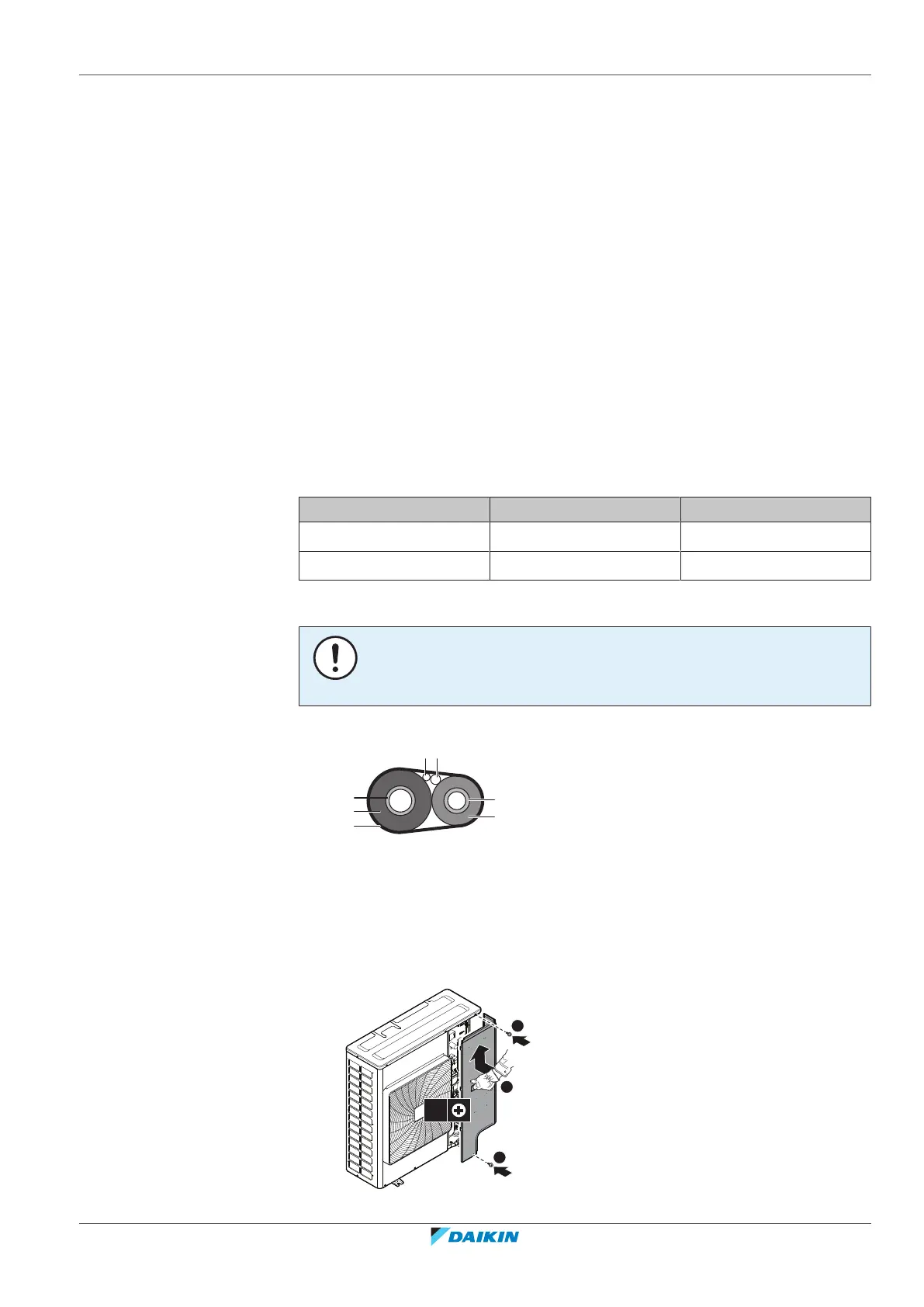

10 Finishing the outdoor unit installation

In this chapter

10.1 To insulate the refrigerant piping .......................................................................................................................................... 59

10.2 To check the insulation resistance of the compressor .......................................................................................................... 60

10.1 To insulate the refrigerant piping

After finishing the charging procedure, the piping must be insulated. Take into

account the following points:

▪ Be sure to insulate the liquid and gas piping (for all units).

▪ Use heat resistant polyethylene foam which can withstand a temperature of 70°C

for liquid piping and polyethylene foam which can withstand a temperature of

120°C for gas piping.

▪ Reinforce the insulation on the refrigerant piping according to the installation

environment.

Ambient temperature Humidity Minimum thickness

≤30°C 75% to 80% RH 15mm

>30°C ≥80% RH 20mm

Between outdoor and indoor unit

NOTICE

It is recommended that the refrigerant piping between indoor and outdoor unit is

installed in a ducting or the refrigerant piping is wrapped with finishing tape.

1 Insulate and fix the refrigerant piping and cables as follows:

g

b

a

f

e

cd

a Gas pipe

b Gas pipe insulation

c Interconnection cable

d Field wiring (if applicable)

e Liquid pipe

f Liquid pipe insulation

g Finishing tape

2 Install the service cover.

2×

2

1
