7 | Piping installation
Installer reference guide
40
AZAS100~140MUV/Y
Sky Air Active-series
4P743509-1B – 2024.05

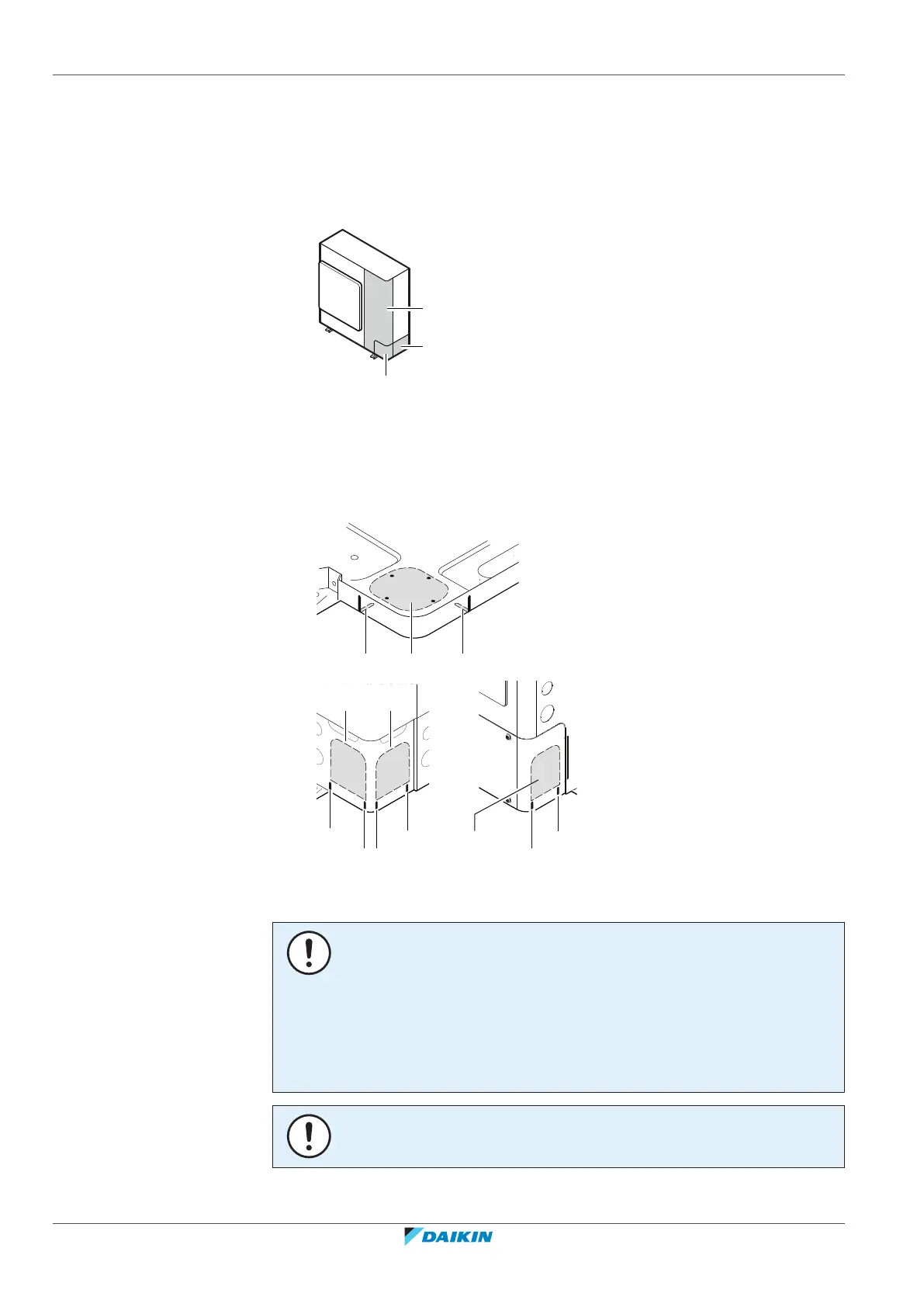

d Rear connection
1 Remove the following plates:
For details, see "6.2.2To open the outdoor unit"[426].
▪ Remove the service cover (a) and the piping intake front plate (b).
▪ In case the refrigerant piping is routed to the rear side of the unit, also
remove the piping intake rear plate (c).
a
c
b
a Service cover
b Piping intake front plate
c Piping intake rear plate
2 Remove the knockout hole(a) in the bottom plate or in the piping intake plate
by tapping on the attachment points with a small flat screwdriver and a
hammer. Optionally, cut out the slits (b) with a metal saw.
b a b
b
b
b
b
a a
b
b
a
a Knockout hole for piping
b Slit
NOTICE
Precautions when making knockout holes:
▪ Avoid damaging the casing and underlying piping.
▪ After making the knockout holes, we recommend to remove the burrs and paint
the edges and areas around the edges using repair paint to prevent rusting.
▪ When passing electrical wiring through the knockout holes, wrap the wiring with
protective tape to prevent damage.
NOTICE
Avoid bending the bottom plate when removing the knockout hole.
3 Connect the gas and liquid piping.
