6 | Unit installation
Installer reference guide
30
ARXF50F5V1B
R32 split series
4P769827-14D – 2024.08
▪ Height of windbreaker ≥1.5× height of outdoor unit
▪ Mind the service space requirements when installing the windbreaker.
a
b
c
d
c
d

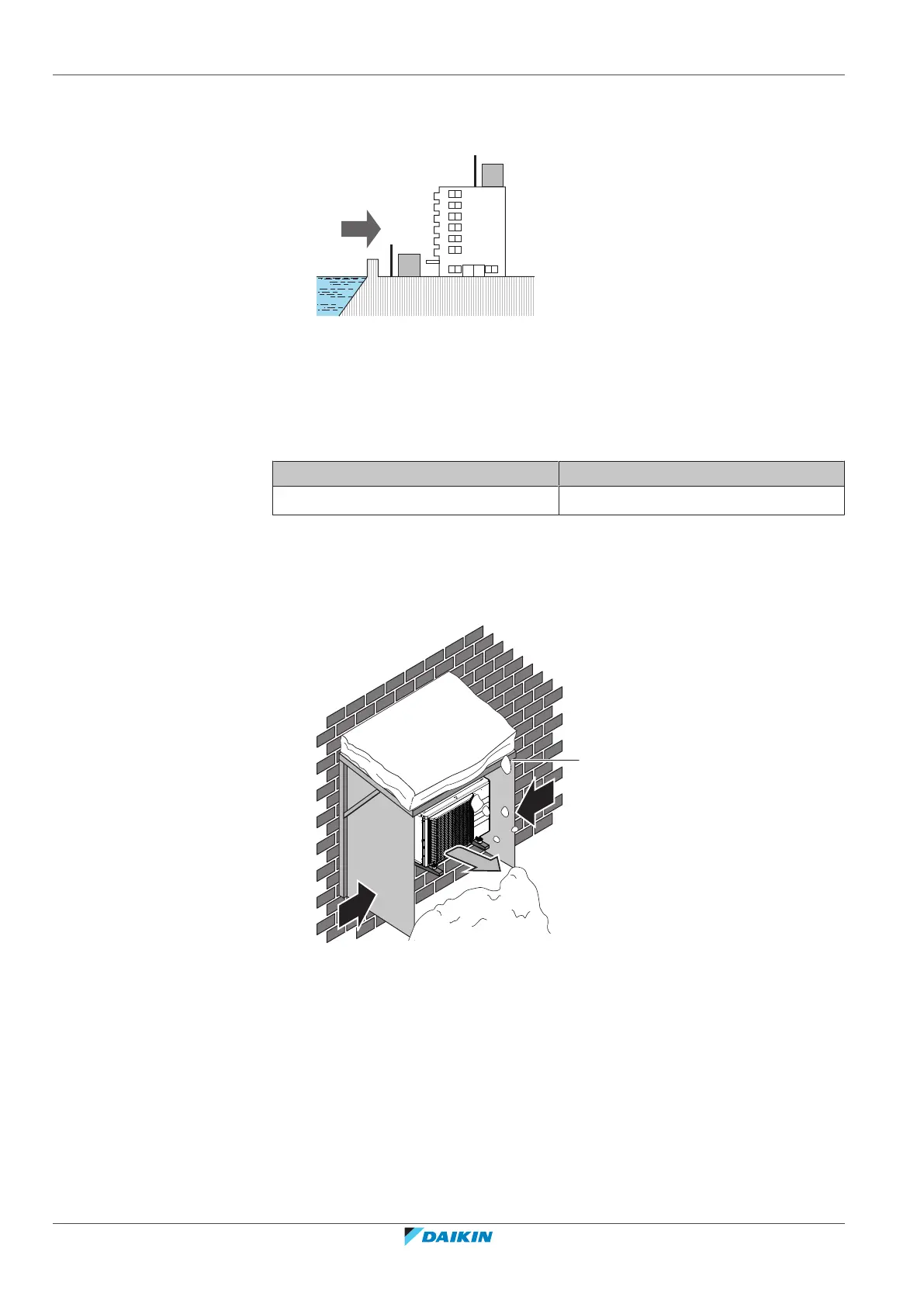

a Sea wind
b Building
c Outdoor unit
d Windbreaker
The outdoor unit is designed for outdoor installation only and for ambient
temperatures specified in the table below (unless otherwise specified in the
operation manual of the connected indoor unit).
Cooling Heating
–10~48°C DB –15~24°C DB
6.1.2 Additional installation site requirements of the outdoor unit in cold climates
Protect the outdoor unit against direct snowfall and take care that the outdoor unit
is NEVER snowed up.
a
b
b
c
a Snow cover or shed
b Prevailing wind direction
c Air outlet
It is recommended to provide at least 150 mm of free space below the unit
(300mm for heavy snowfall areas). Additionally, make sure the unit is positioned at
least 100mm above the maximum expected level of snow See "6.3Mounting the
outdoor unit"[431] for more details.
In heavy snowfall areas it is very important to select an installation site where the
snow will NOT affect the unit. If lateral snowfall is possible, make sure that the heat
exchanger coil is NOT affected by the snow. If necessary, install a snow cover or
shed.
