7 | Piping installation
Installer reference guide
38
2MXM-A8, 3MXM-A8, 4MXM-A8, 5MXM-A8
R32 Split series
4P766272-5C – 2025.05
a b

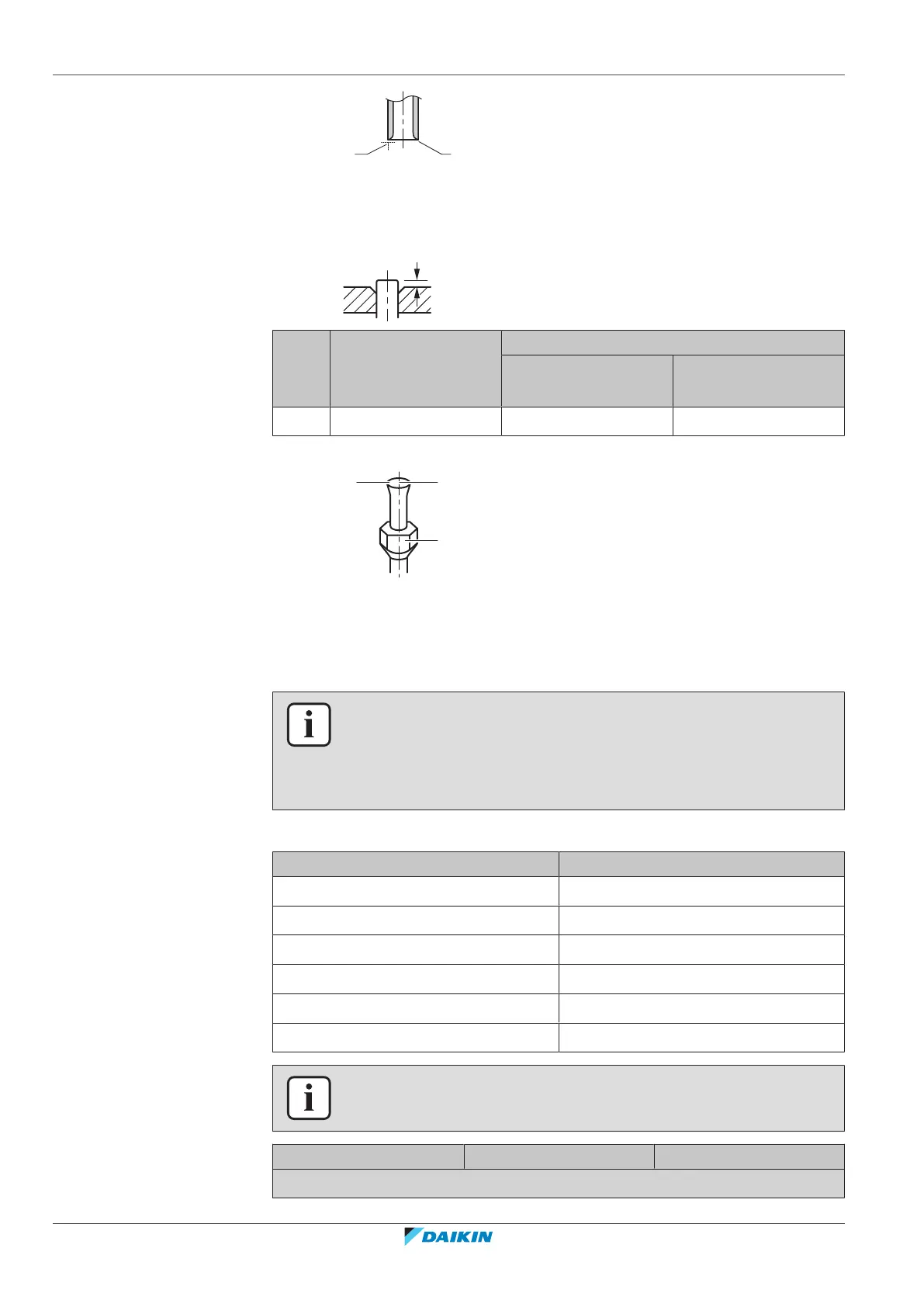

a Cut exactly at right angles.
b Remove burrs.
3 Remove the flare nut from the stop valve and put the flare nut on the pipe.
4 Flare the pipe. Set exactly at the position as shown in the following figure.
A
Flare tool for R32
(clutch type)
Conventional flare tool
Clutch type
(Ridgid-type)
Wing nut type
(Imperial-type)
A 0~0.5mm 1.0~1.5mm 1.5~2.0mm
5 Check that the flaring is properly made.
a b
c
a Flare’s inner surface MUST be flawless.
b The pipe end MUST be evenly flared in a perfect circle.
c Make sure the flare nut is fitted.
7.2.6 Connections between outdoor and indoor unit using reducers
INFORMATION
▪ For the DHW generator for Multi use the same reducer as for the 20 class indoor
unit.
▪ For the Hybrid for Multi, see the indoor unit installation manual for the capacity
class and applicable reducer.
Total indoor unit capacity class that can be connected to this outdoor unit:
Outdoor unit Total indoor unit capacity class
2MXM68 ≤10.2kW
3MXM40 ≤7.0kW
3MXM52 ≤9.0kW
3MXM68, 4MXM68 ≤11.0kW
4MXM80 ≤14.5kW
5MXM90 ≤15.6kW
INFORMATION
It is NOT possible to connect only 1 indoor unit. Connect at least 2 indoor units.
Port Class Reducer
2MXM68
