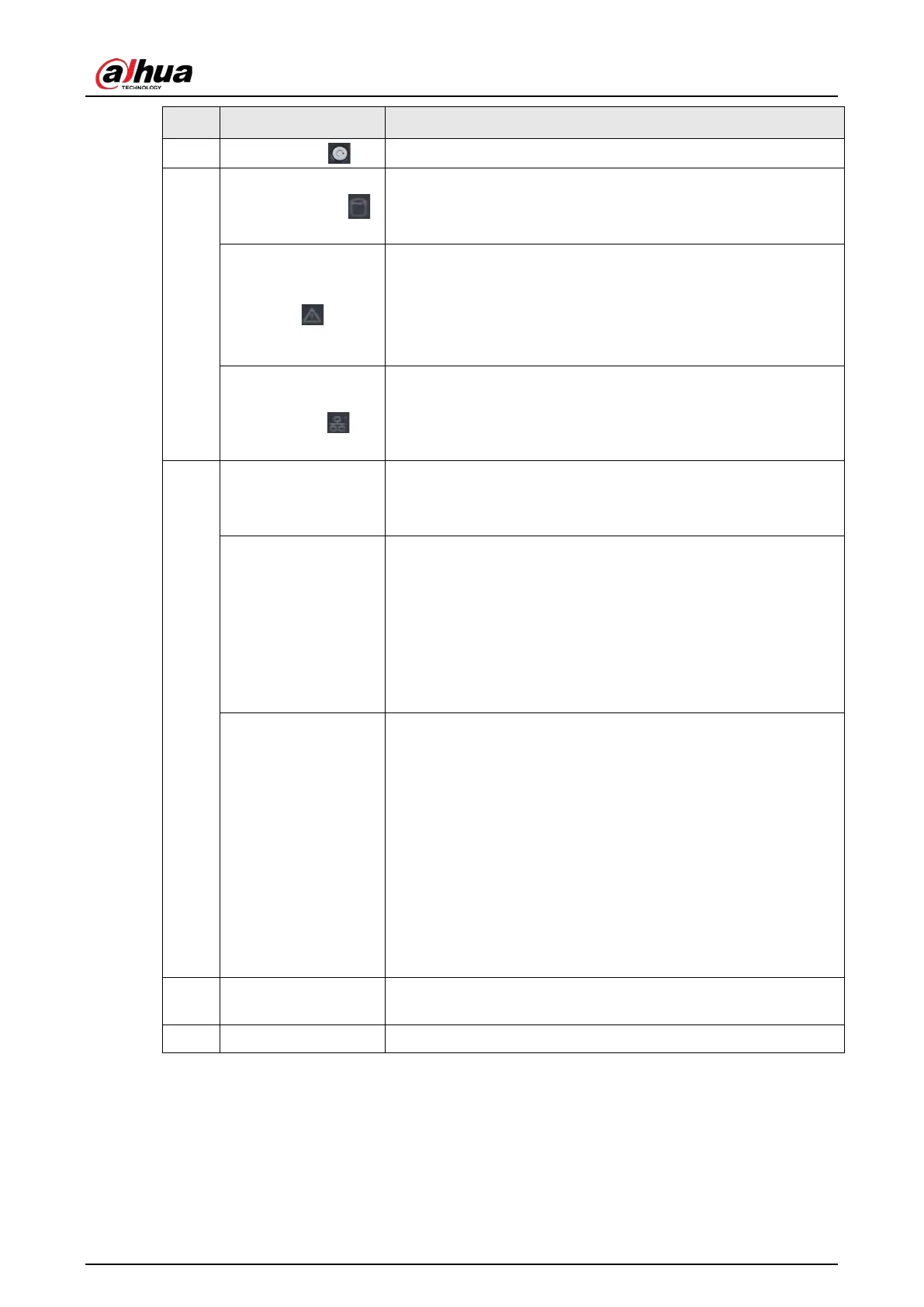

No. Port/Indicator Description

Reset button

Restart the server.

2

Power indicator

It indicates the power status.

●

Blue: The server is powered on.

●

Off: The server is not powered on.

System status

indicator

It indicates the running status of the server.

●

Green indicator flashing: The server is running.

●

Indicator is off: The server is not running.

●

Red indicator flashing: The server works in the degraded

status, such as no fan detected or abnormal operation.

Network status

indicator 1/2

It indicates the current network status, corresponding to the left

and right Ethernet ports of the rear view.

●

Green indicator flashing: Network connected.

●

Indicator is off: The Ethernet port is not in use.

3

HDD status indicator

It indicates the HDD running status.

●

Blue indicator light is on: HDD has been installed.

●

Indicator is off: HDD has not been installed.

HDD read-write

indicator

It indicates the HDD read-write status.

●

When a RAID card is not installed:

◇

Green indicator flashing: HDD is in the read-write status.

◇

Indicator is off: HDD is not in place or failed.

●

When a RAID card is installed:

◇

Green indicator flashing: HDD is in the read-write status.

◇

Indicator is off: HDD is not in place or failed.

HDD

failure/positioning

indicator

It indicates HDD failure or HDD positioning.

●

The indicator does not take effect when a RAID card is not

installed.

●

When a RAID card is installed:

◇

Red indicator is on: HDD failure is detected.

◇

Red indicator flashing (at a frequency of 4 Hz): HDD is

being located.

◇

Red indicator flashing (at a frequency of 1 Hz): RAID is

being restructured.

◇

Indicator is off: HDD is running normally or is not in the

slot.

4 VGA port

VGA video output port outputs analog video signals and can be

connected to a monitor to view the local interface of the server.

5 USB 3.0 port Connects a mouse, keyboard, USB storage device, and more.
