1.3 Rear Panel

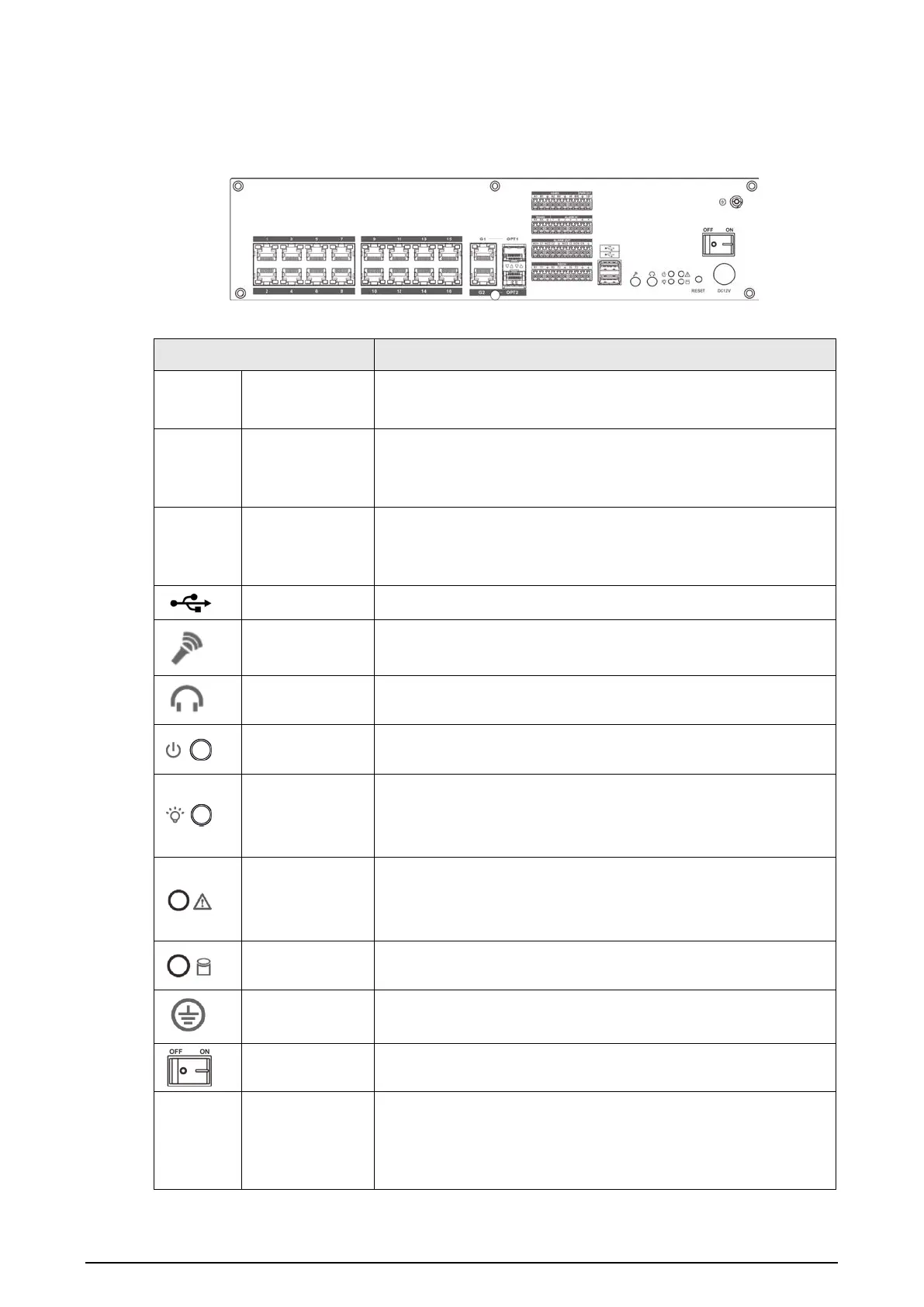

Figure 1-3 Rear panel

Table 1-2 Description of ports on rear panel

Port Description

1–16 Network port

16 RJ-45 self-adaptive Ethernet ports.

They are on the same network segment with G2.

G1/G2 Dual NICs port

Two 1000 Mbps Ethernet ports.

They are physically separated, available for connecting to

cameras and platforms on different network segments.

OPT1/OP

Optical port

Two 1000 M SFP optical fiber ports.

OPT1 and G1, OPT2 and G2 are respectively on the same network

segment.

USB3.0 port Connects with external USB storage devices. Reserved function.

Audio input

port

1-channel audio input port. Reserved function.

Audio output

port

1-channel audio output port. Reserved function.

Power indicator

Displays the status of the power supply. Solid red means the

Device is working normally.

Operation

indicator

Displays the operation status of the Device.

●

Solid green: The Device runs normally.

●

Flashes green: The Device is being upgraded.

Alarm indicator

Display the alarm status of the Device.

●

Solid red: The alarm is enabled.

●

Flashes red: The alarm is triggered.

HDD status

indicator

Displays the status of HDD. The indicator flashes green when the

HDD is exchanging data.

Ground port

This port must be grounded to improve device reliability.

Otherwise, the Device will lose its lightning protection function.

Power button Turns on/off the Device.

RESET Reset button

Restores the Device to factory defaults.

Press and hold the button for more than 10 seconds when the

Device is working, and the system configuration restores to

factory defaults.
