Installation

ENGLISH 3

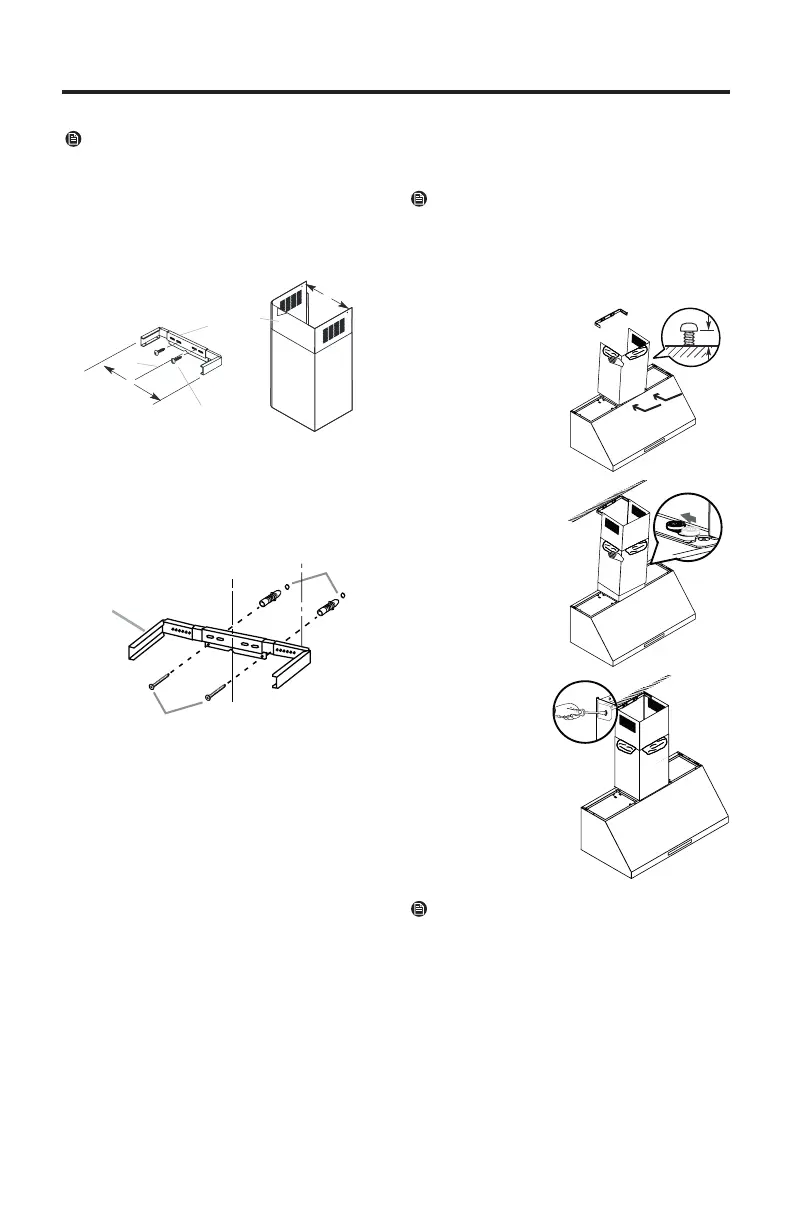

Install Duct Cover Bracket

NOTE

Secure Pro Canopy Hood to the wall before installing

the Duct Cover. See “Installation” section on the Hood

Installation Manual.

1. Assemble the 3 pieces of the vent cover bracket with

2 - 4.2 x 8 mm screws provided using the Torx 20

adapter. The assembled bracket should be sized to t

inside the upper vent cover (X).

A. Vent cover bracket

assembly

B. Upper vent cover

C. 2 - 4.2 x 8 mm screws

D. Centerline

D

A

C

B

X

X

2. Position vent cover bracket on wall at the top of the

ceiling, use a center line to align the support with the

hood.

3. Mark the hole locations.

B

C

E

D

A

A. 2 - 8 x 40 drywall anchors

B. Centerline on wall

C. Vent cover support bracket

D. 2 - 5 x 45 mm screws

E. Centerline of bracket

4. Drill ³/₈” (9.5 mm) holes for wall anchors and insert

anchors ush with the wall.

Install Duct Cover

When using upper and lower vent covers, push lower

covers down onto hood and lift upper cover to ceiling and

install with two mounting screws.

NOTE

The upper vent cover may be reversed to hide slots.

1. Unistall and remove the motor if it is installed on the

hood.

2. Place a tissue or soft cloth between duct covers to

prevent scratching while installing.

3. Lift the duct cover over

the hood and swivel

toward the wall. Insert

the hood base pins

into the duct cover

lower slots.

4. Once the four pins

are already inserted,

push the duct cover to

x them. Remove the

tissue or soft cloth.

5. Carefully pull the

top part of the

extension upwards.

Screw the left and

right sides of the

extension to the

mounting bracket

with 2 -3.5 x 9.5 mm

screws.

6. Replace the motor if removed.

NOTE

The installation height above the counter top should

be considered. Cutting and modication of one duct

cover may be required to t various ceiling heights. Any

modications should be done by a professional installer

using suitable safety devices and observing the proper

safety recommendations.
