DMS-3130 Series Layer 3 Stackable Managed Switch Hardware Installation Guide
16
2. Hardware Components
This chapter describes the front, rear, and side panel components of both switches in the series.
DMS-3130-30TS Switch
DMS-3130-30PS Switch
DMS-3130-30TS Switch
Front Panel Components
The front panel of DMS-3130-30TS features a variety of LED indicators and ports.

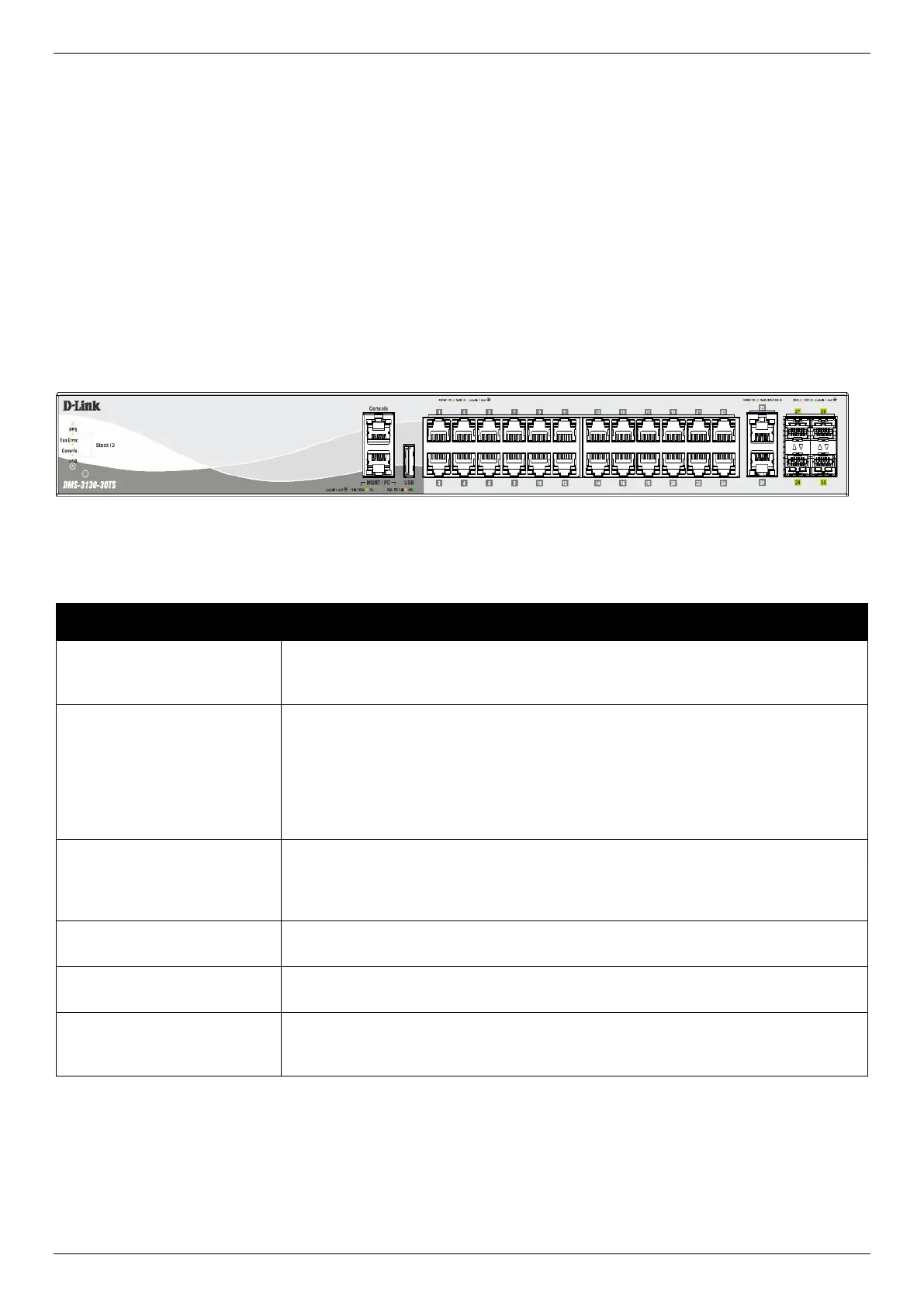

Figure 2-1 Front panel view of the DMS-3130-30TS
Ports on the front panel of this switch
Port
Description
USB
Inserting a flash drive into the USB 2.0 Type-A port provides an additional storage
space for portable firmware images and configuration files that can be copied to
and from the NVRAM of the Switch.
MGMT
The RJ45 Management (MGMT) port is an IP-based, Out-Of-Band (OOB) port for
Telnet, web, or SNMP management that operates at 10/100/1000 Mbps wire-
speed. This port can be used to configure the Switch without being connected to
the network.
The MGMT port can also be used to supply the Switch with 90W DC power using
Power over Ethernet (PoE). This can be used as the main power source or as the
secondary power source to the Switch.
Console (RJ45)
The RJ45 console port can be used to connect to the Command Line Interface
(CLI) of the Switch for configuration, management, and monitoring. This port uses
a special console cable (included in this package) with a RJ45-to-Serial interface
to connect the Switch and the serial port (COM) of the PC.
2.5GBASE-T RJ45 Ports
The Switch is equipped with 24 RJ45 Ethernet ports. These ports can operate at
100 Mbps, 1 Gbps, or 2.5 Gbps wire-speed.
10GBASE-T RJ45 Ports
The Switch is equipped with 2 RJ45 Ethernet ports. These ports can operate at 100
Mbps, 1 Gbps, 2.5 Gbps, 5 Gbps, or 10 Gbps wire-speed.
25 Gigabit SFP28 Ports
The Switch is equipped with 4 SFP28 (or optional SFP+) ports. These ports can
operate at 10 Gbps or 25 Gbps wire-speed and support a wide collection of SFP+
or SFP28 transceivers.
For a complete list of SFP transceivers that are compatible with this switch, refer to the Port Functions sections in
Appendix A - Technical Specifications.
LED Indicators
Located on the front panel of this switch are LED indicators: Power, Console, RPS, Fan Err, USB, Link/Act indicators
for all the ports, and Stack ID.
