DXS-3130-28-P Layer 3 Stackable Managed Switch Hardware Installation Guide
18
3. Installation
This chapter covers the installation guidelines and steps and procedures of D-Link DXS-3130-28P switches.
Installation Guidelines
Installing the Switch without a Rack
Installing the Switch in a Standard 19" Rack
Installing Transceivers into the Transceiver Ports
Power On (AC Power)
Connecting PoE BT to the switch
Installation Guidelines
This section will discuss the hardware installation guidelines that the user must follow to install this switch properly and
safely into the appropriate environment.
Visually inspect the power cord and check if it is fully secured to both the power connector, on the Switch, and the
electrical outlet that supplies power.
Install the Switch in a cool and dry place within the acceptable operating temperature and humidity ranges. For more
information about the acceptable operating temperature and humidity ranges, refer to the Physical and Environmental
section.
Install the Switch in a site free from strong electromagnetic field generators such as motors, vibration, dust, and direct
exposure to sunlight.
Installing the Switch without a Rack
This section is intended to guide the user through installing the Switch in an area other than a switch rack. Firstly,
attach the included rubber feet to the bottom of the Switch. Then, look for the marked blocks on the bottom of the
Switch for attaching the rubber feet. These markings are usually found at each corner on the bottom of the device.
The rubber feet help cushion the Switch, further protecting the casing from scratches and also preventing it from
scratching other surfaces.

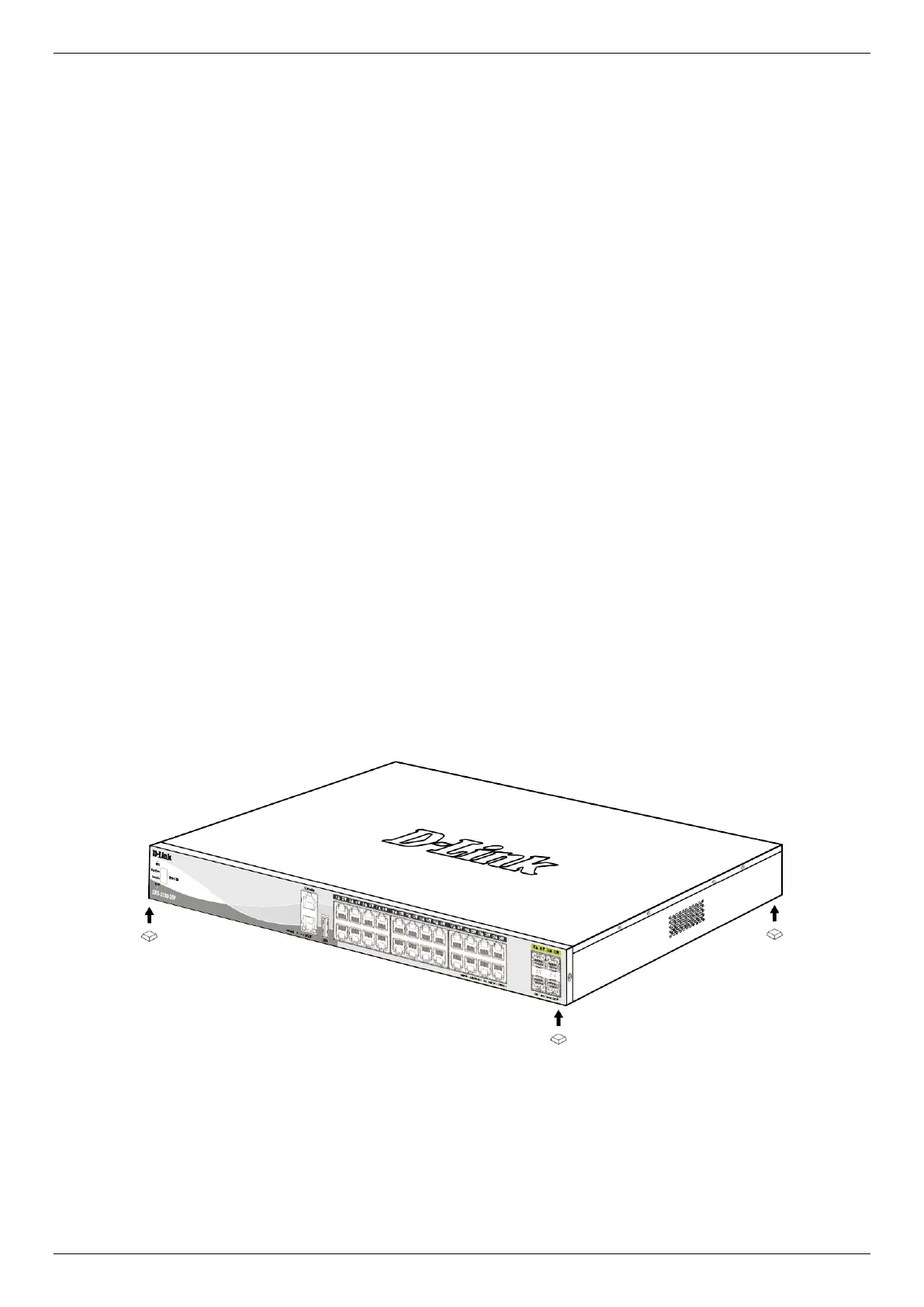

Figure 3-1 Attaching rubber feet to the Switch
Install the Switch on a sturdy, level surface that can support the weight of the Switch (see the Weight section in
Appendix A - Technical Specifications.). Do not place any heavy objects on the Switch. The power outlet should be
within 1.82 meters (6 feet) distance to the Switch. Make sure that there is proper and adequate heat dissipation and
ventilation from and around the Switch. Leave at least 10 cm (4 inches) of space at the front, sides, and rear of the
Switch for ventilation.
