3
ENGLISH
Switch Connection
Caution: The redundant power supply should
be disconnected from its power source before
connecting to the switch. Directly connecting a
powered RPS to the switch may cause damage
to the switch’s internal power supply.
Insert one end of the DC power cable into the
receptacle on the switch and the other end into
the redundant power supply.

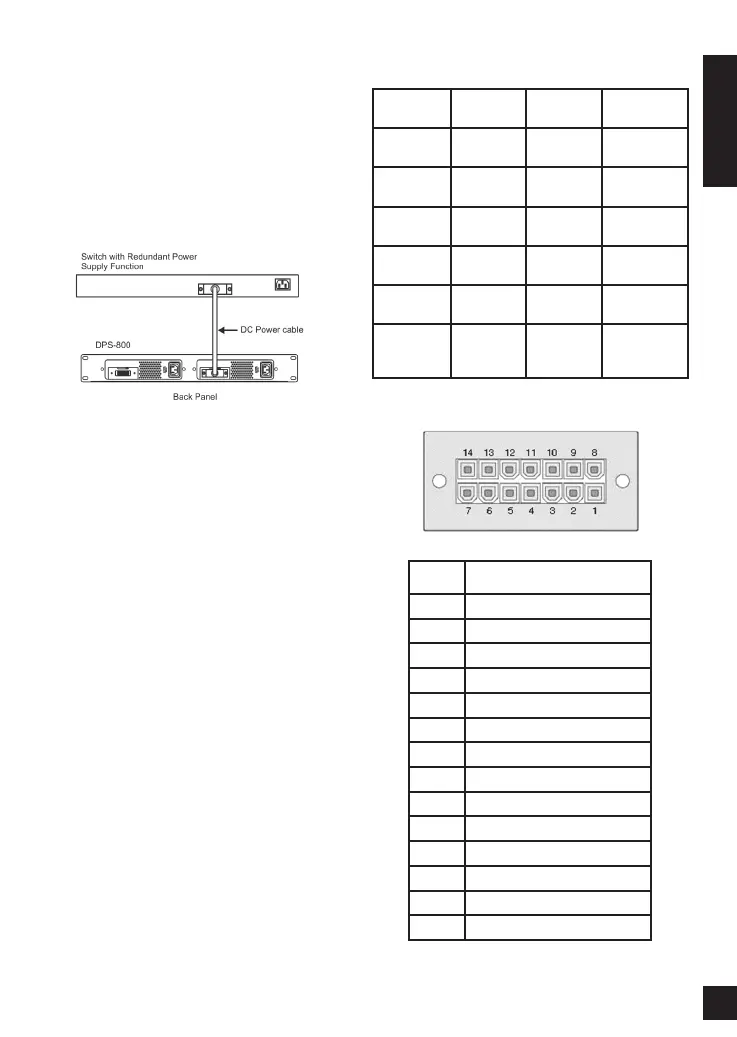

Connecting a single RPS in a DPS-800 rack to
a switch
Power Connection
Connecting AC Power (DPS-200A/500A)
Using a standard AC power cable, connect
the redundant power supply to the main AC
power source. A green LED on the front of the
DPS-200A/DPS-500A will glow to indicate a
successful connection.
Connecting DC Power (DPS-500DC)
1. Firmly attach the DC power source to the
negative and positive contacts on the wiring
assembly.
• The negative pole (-) connects to the -48V
contact.
• The positive pole (+) connects to the -48V
RTN contact.
• If available, an earth ground may be
connected to the center contact post.
2. Tighten the contact screws to secure the
connection.
No change in switch conguration is necessary
when connecting to the RPS.
Product Specication
Model
Name
DPS-200A DPS-500A DPS-500DC
Input
Voltage
100 to
240 V AC
100 to
240 V AC
-36 to
72 V DC
Input
Frequency
50-60 Hz 50-60 Hz -
Input
Current
1.5 A 4 A 6 A
Output
Voltage
12 V 12 V 12 V
Output
Current
13 A 13 A 12.5 A
Operation
Tempera-
ture
0 to 50°C 0 to 50°C 0 to 50°C
Pin Assignment
Pin DPS-200A/500A/500DCA
1 GND
2 N/C
3 +12 V
4 +12 V
5 +12 V
6 +12 V
7 GND
8 N/C
9 N/C
10 RPS Present
11 N/C
12 N/C
13 PWR-Good
14 GND
