DIS-200G Series Industrial Gigabit Ethernet Smart Managed Switch
9
Web User Interface (Web UI)
By clicking the Exit button in the Smart Wizard, you will enter the Web-based Management interface.
Areas of the User Interface
The figure below shows the Web UI in the Standard Mode. Three distinct areas that divide the user
interface, as described in the table.
The following Areas can be observed in the above window:
Parameter Description
AREA 1
Select the folder or window to display. Open folders and click the
hyperlinked window buttons and subfolders contained within them
to display windows.
AREA 2
Presents Switch status based on user selection and the entry of
configuration data. In addition, hyperlink of Settings is offered to
enable quick Gateway configuration.
AREA 3
Presents a toolbar used to access function like Save, Tools, the
Wizard and Online Help, accessing the Web UI in the Surveillance
Mode, and a Logout option.
Click the Surveillance Mode option to change the switch mode
from
Standard Mode to Surveillance Mode.
The user account and IP address currently logged into the Web UI
will also be displayed in this toolbar.

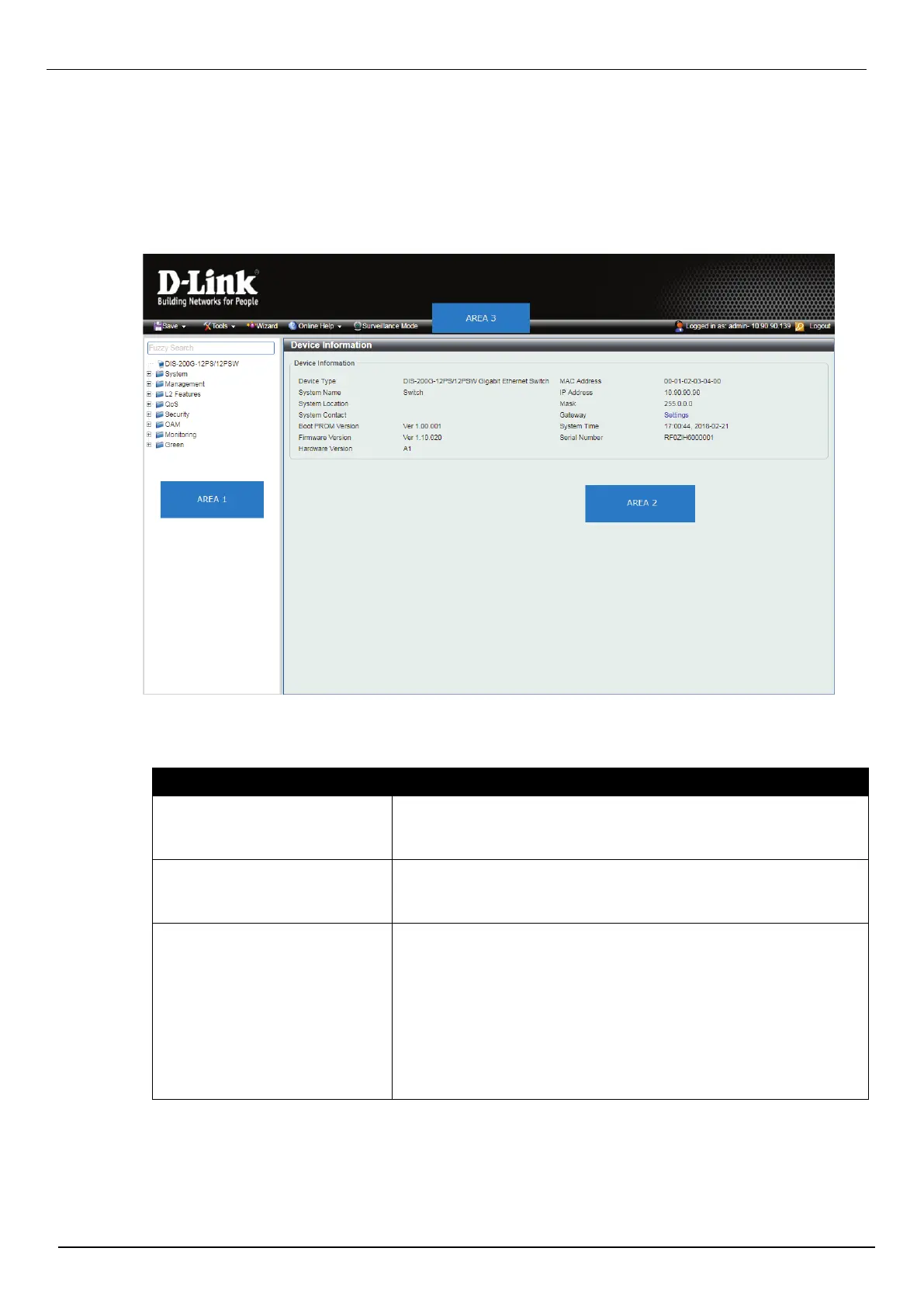

Figure 2-7 Web UI (Standard Mode)
