DGS-3224TG Gigabit Ethernet Switch User’s Guide
Port Trunking

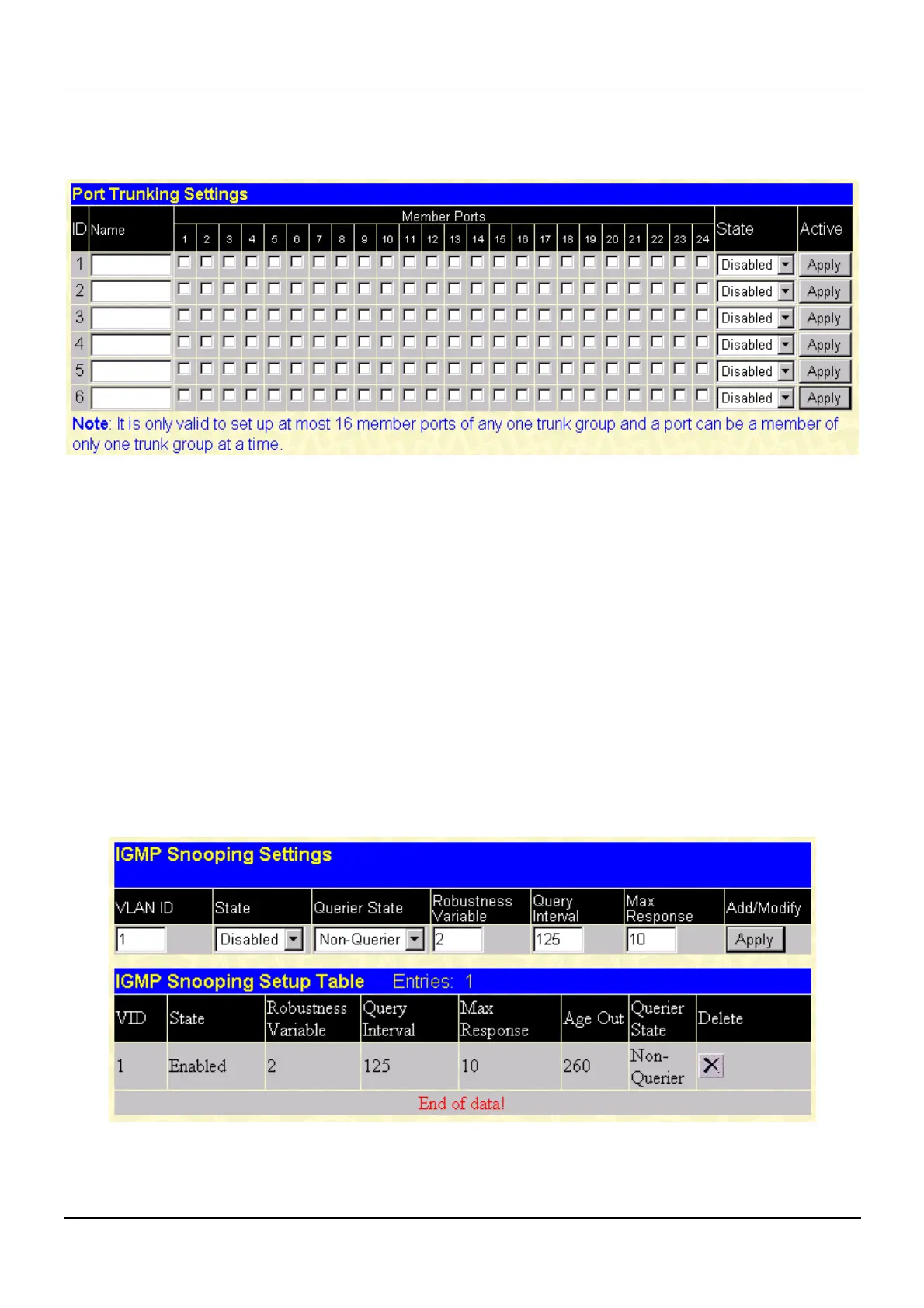

Figure 7-6. Port Trunking Settings window
The Switch supports up to 6 trunk groups. Trunks are groups of ports that are banded together to form
a single, logical, high-bandwidth data pipe. The maximum number of member ports for a trunk group is
16.
To create or modify a trunk group, enter a name in the first field, check the ports that will compose the
port trunk, and change the Status field to Enabled. Click Apply to activate your settings.
Items in the above window are defined as follows:
• Name – The user-assigned name of the trunk group.
• Member Ports – Check the number of ports that will be members of the trunk group.
• State – Enables or disables the trunk group.
IGMP Snooping
Figure 7-7. IGMP Snooping Settings window
87
