DGS-3224TG Gigabit Ethernet Switch User’s Guide
Ingress Filter Settings
To set ingress filtering on a port, highlight Configure Port Ingress Filter on the IEEE 802.1Q VLANs
Configuration menu and press Enter:

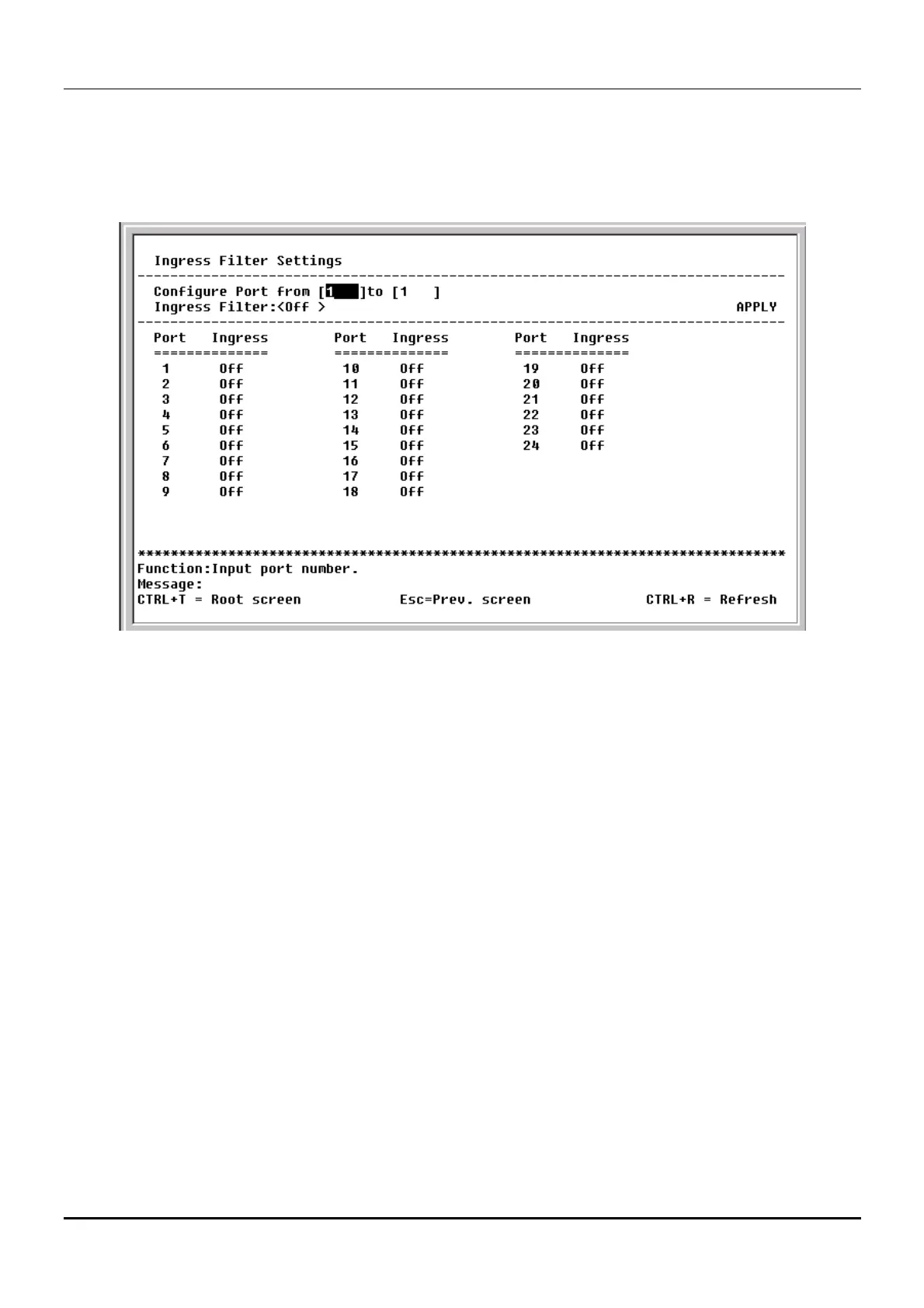

Figure 6-24. Ingress Filter Settings screen
Highlight the Configure Port from [1 ] to [1 ] field and enter the range of port numbers you want to
configure. Then use the space bar to toggle between On and Off in the Ingress Filter field.
An Ingress Filter enables the port to compare the VID tag of an incoming packet with the both the VIDs
and PVIDs of VLANs assigned to the port. If the VID tag of an incoming port is different from either the
VID or PVID assigned to the port, the port filters (drops) the packet.
Port GVRP Settings
GARP VLAN Registration Protocol (GVRP) is a Generic Attribute Registration Protocol (GARP) application
that provides 802.1Q-compliant VLAN pruning and dynamic VLAN creation. With GVRP, the switch can
exchange VLAN configuration information with other GVRP switches, prune unnecessary broadcast and
unknown unicast traffic, and dynamically create and manage VLANs on switches connected through
802.1Q ports.
To enable a port to dynamically become a member of a VLAN, highlight Configure Port GVRP Settings
on the IEEE 802.1Q VLANs Configuration menu and press Enter:
52
