DGS-3224TG Gigabit Ethernet Switch User’s Guide
Note: Observe the following formulas when setting the above parameters:
Max. Age ≤ 2 x (Forward Delay - 1 second)
Max. Age ≥ 2 x (Hello Time + 1 second)
Port Spanning Tree Settings
In addition to setting Spanning Tree parameters for use on the switch level, the DGS-3224TG allows for
the configuration of Spanning Tree Protocol on individual ports.
To define individual ports, highlight Port Settings on the Configure Spanning Tree menu above and
press Enter.

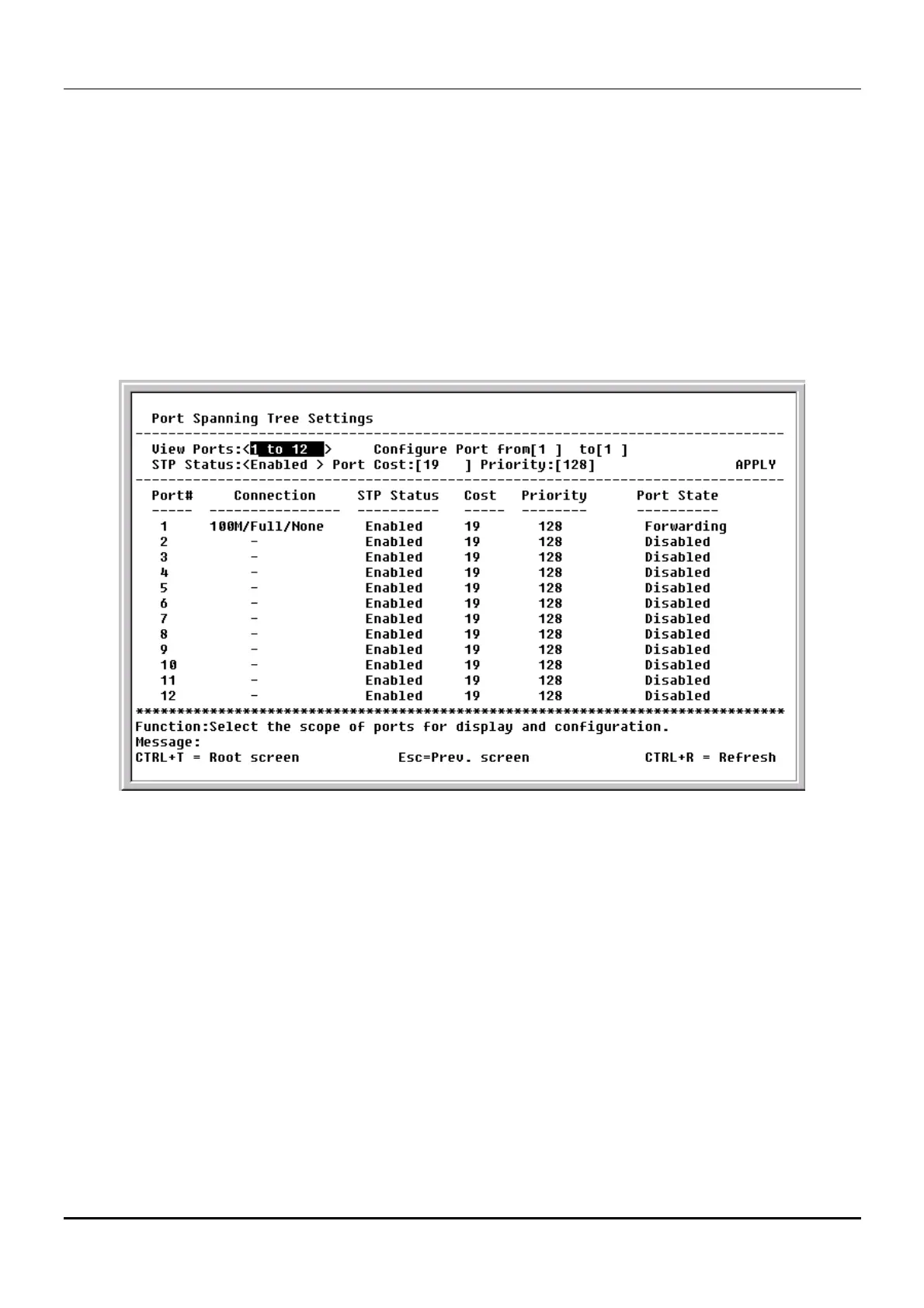

Figure 6-17. Port Spanning Tree Settings screen
Toggle the View Ports field to the range of ports to be configured. Enter the port number or port range
in the Configure Port from [ ] to [ ] field. After enabling or disabling STP Status, you can set the
spanning tree port cost and priority.
Configure Static (Destination-Address Forwarding) Table
The Configure Static (Destination-Address Forwarding) Table menu allows you to access screens to
create, modify, and delete both Static Unicast Forwarding Table and Static Multicast Forwarding Table
entries, respectively.
Highlight Configure Static (Destination-Address Forwarding) Table on the Configuration menu and
press Enter:
46
