DGS-3224TG Gigabit Ethernet Switch User’s Guide

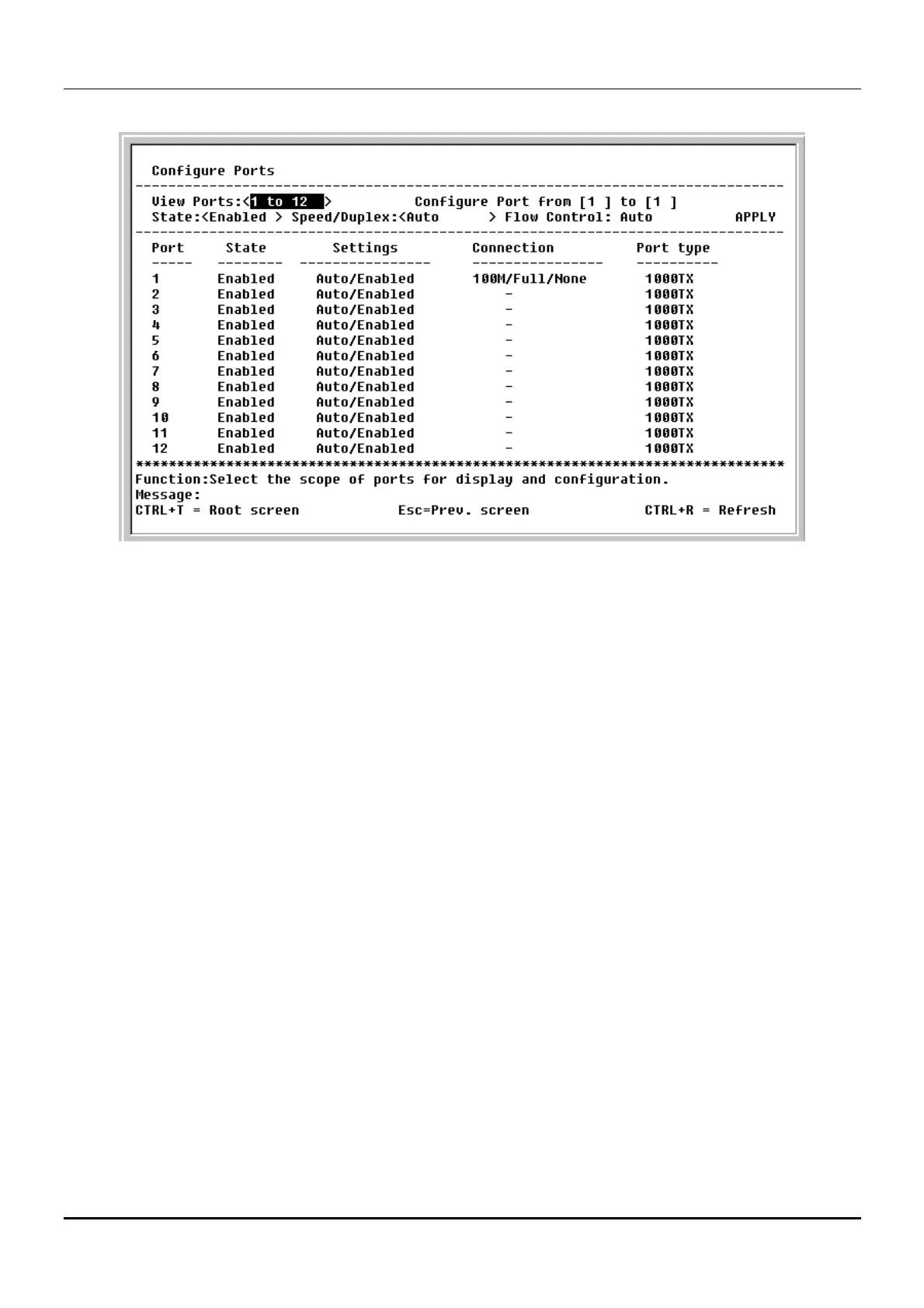

Figure 6-15. Configure Ports screen
Toggle the View Ports field, using the space bar, to view the configuration of either ports 1 through 12,
13 through 20, or 21 through 24. To configure a specific port, toggle the Configure Port from [ ] to [ ]
field until the appropriate port number or port range appears.
Toggle the State field to either enable or disable a given port.
Toggle the Speed/Duplex field to select the speed and duplex/half-duplex state of the ports1x to 20x.
Auto means auto-negotiation between 10, 100, and 1000 Mbps devices, in full- or half-duplex mode.
The Auto setting allows the twenty copper ports to automatically determine the fastest settings the
device the port is connected to can handle, and then to use those settings. The other options are
100M/Full, 100M/Half, 10M/Full, 10M/Half. There is no automatic adjustment of port settings with
any option other than Auto. Flow Control can be enabled or disabled manually when any setting other
than Auto is selected. Please note that the switch’s four GBIC ports only support 1000M/Full.
Configure Spanning Tree Protocol
To globally configure STP on the Switch, highlight Configure Spanning Tree Protocol on the
Configuration menu and press Enter:
44
