DGS-3224TG Gigabit Ethernet Switch User’s Guide

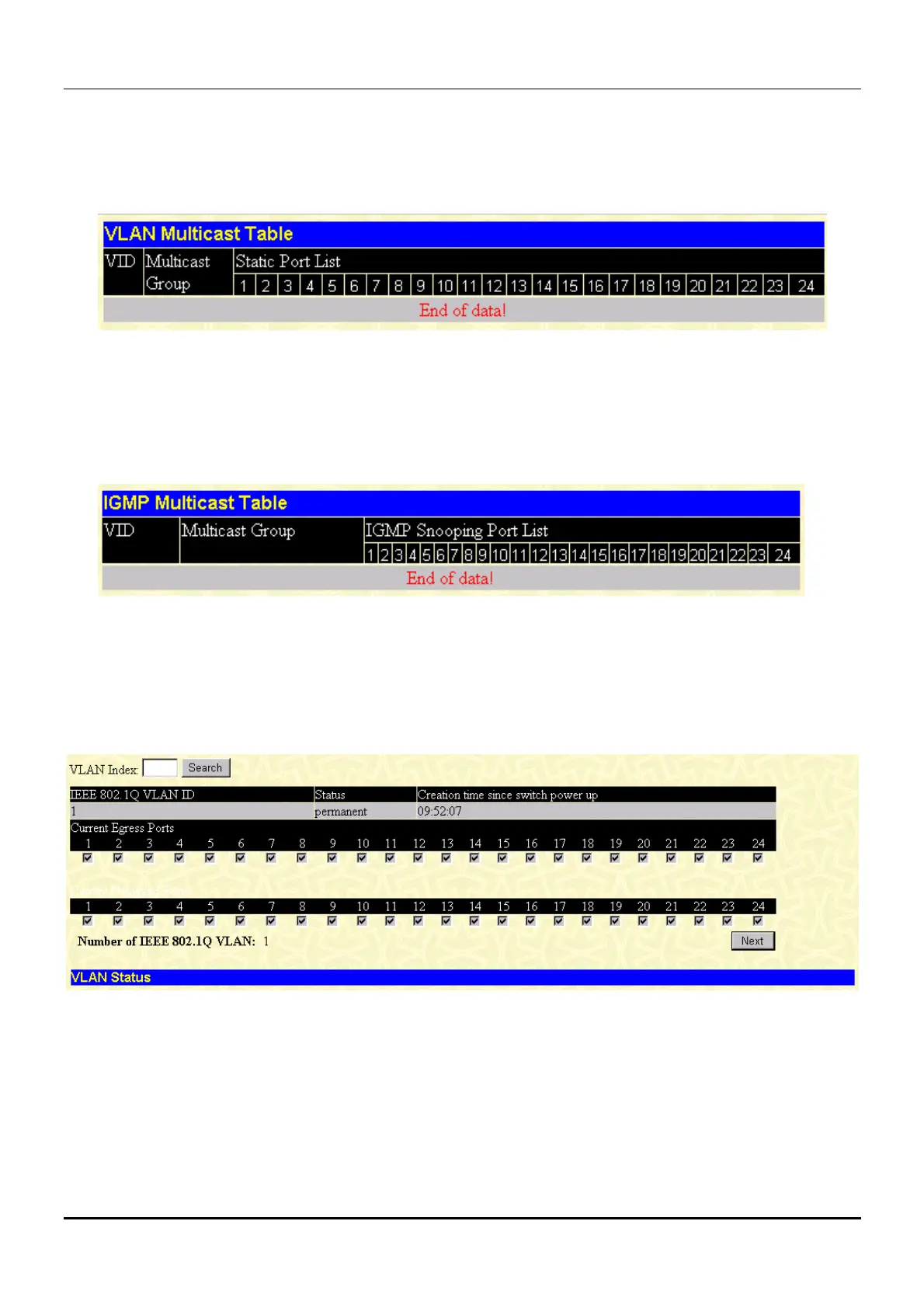

VLAN Multicast Table
This read-only table displays the VLAN multicast table for each VLAN ID on the switch.
Figure 7-41. VLAN Multicast Table window
IGMP Multicast Table
This read-only table displays the IGMP multicast table for each VLAN ID on the switch.
Figure 7-42. IGMP Multicast Table window
VLAN Status
This table displays VLAN information for the specified VLAN.
Figure 7-43. VLAN Status window
The information is described as follows:
• VLAN Index – The VLAN for which the VLAN table is displayed.
• Status – This indicates the current status of the VID listed above.
• Creation time since switch power up – The hours, minutes, and seconds since the switch was
last rebooted.
117
