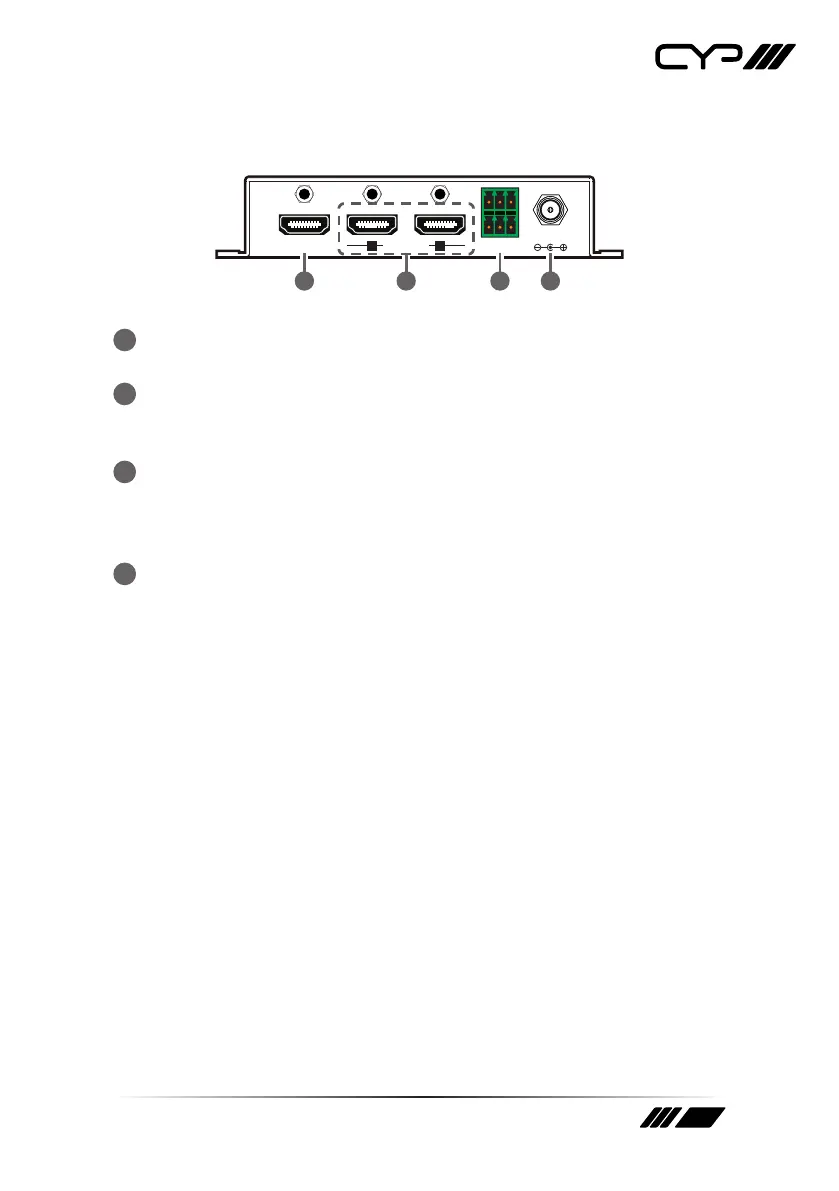

6.2 Rear Panel
HDMI IN HDMI OUT RS-232
DC 5V
A B
OUT
IN
1 2 3 4
1
HDMI IN: Connect to HDMI source equipment such as a media player,
game console or set-top box.
2
HDMI OUT A~B: Connect to HDMI TVs, monitors or amplifiers for
digital video and audio output. Each output can display a different
resolution with a choice between the HDMI source or a test pattern.
3
RS-232: Connect the upper 3-pins directly to a PC, laptop or other
serial control device to send RS-232 commands to control the unit.
Connect the lower 3-pins directly to a serial controllable device to
send signal event automation RS-232 commands to it.
4
DC 5V: Plug the 5V DC power adapter into the unit and connect it to
an AC wall outlet for power.
