6. OPERATION CONTROLS AND FUNCTIONS

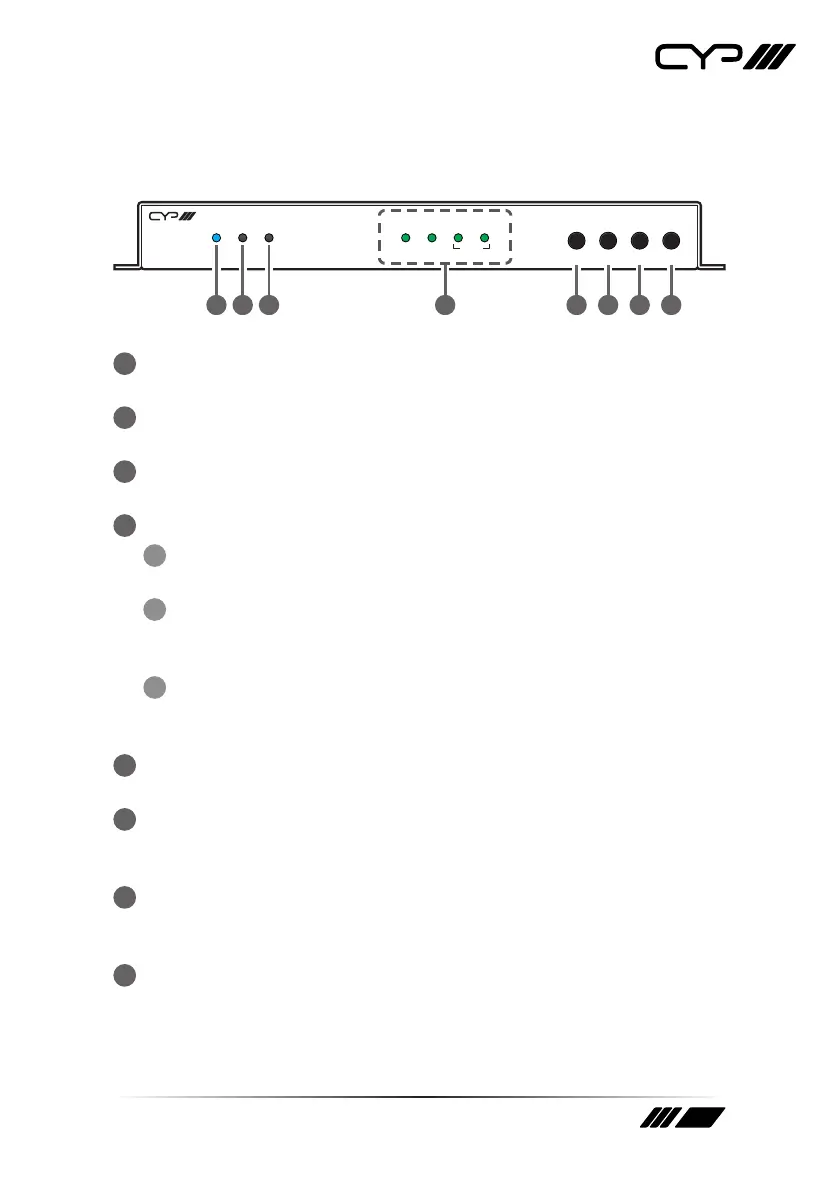

6.1 Front Panel
POWER T/R SOURCE GbE VIDEOTX
LINK
RX MENU
INFO
–
+
ENTER
SDV-CTRX
1
2 3 5 6 7 8
4
1
POWER LED: This LED will illuminate to indicate the unit is on and
receiving power.
2
T/R LED: This LED indicates if the unit is in Transmitter (Green LED) or
Receiver (Amber LED) mode.
3
SOURCE LED: This LED will illuminate when the local HDMI input is
live and selected.
4
STREAMING STATUS LED BLOCK:
A
GbE LED: This LED will illuminate and blink to indicate a live and
active connection on the gigabit Ethernet port.
B
VIDEO LED: This LED will illuminate when a video signal is live on
the 10GbE streaming port. When no video is active the LED will
remain off, even if the streaming connection is valid.
C
TX & RX LINK LEDs: These LEDs will illuminate and blink to
indicate data transmission and reception activity across the 10GbE
streaming connection.
5
MENU BUTTON: Press to enter the OSD menu, or to back out from
menu items.
6
− (MINUS) BUTTON: Press to move down or adjust selections within
OSD menus. When not in a menu, press to manually toggle between
inputs.
7
+ (PLUS) BUTTON: Press to move up or adjust selections within
OSD menus. When not in a menu, press to manually toggle between
inputs.
8
ENTER/INFO BUTTON: When inside an OSD menu, press to confirm a
selection within the OSD or to go deeper into a menu item. When not
in a menu, press to activate the Information OSD.
