6. OPERATION CONTROLS AND FUNCTIONS

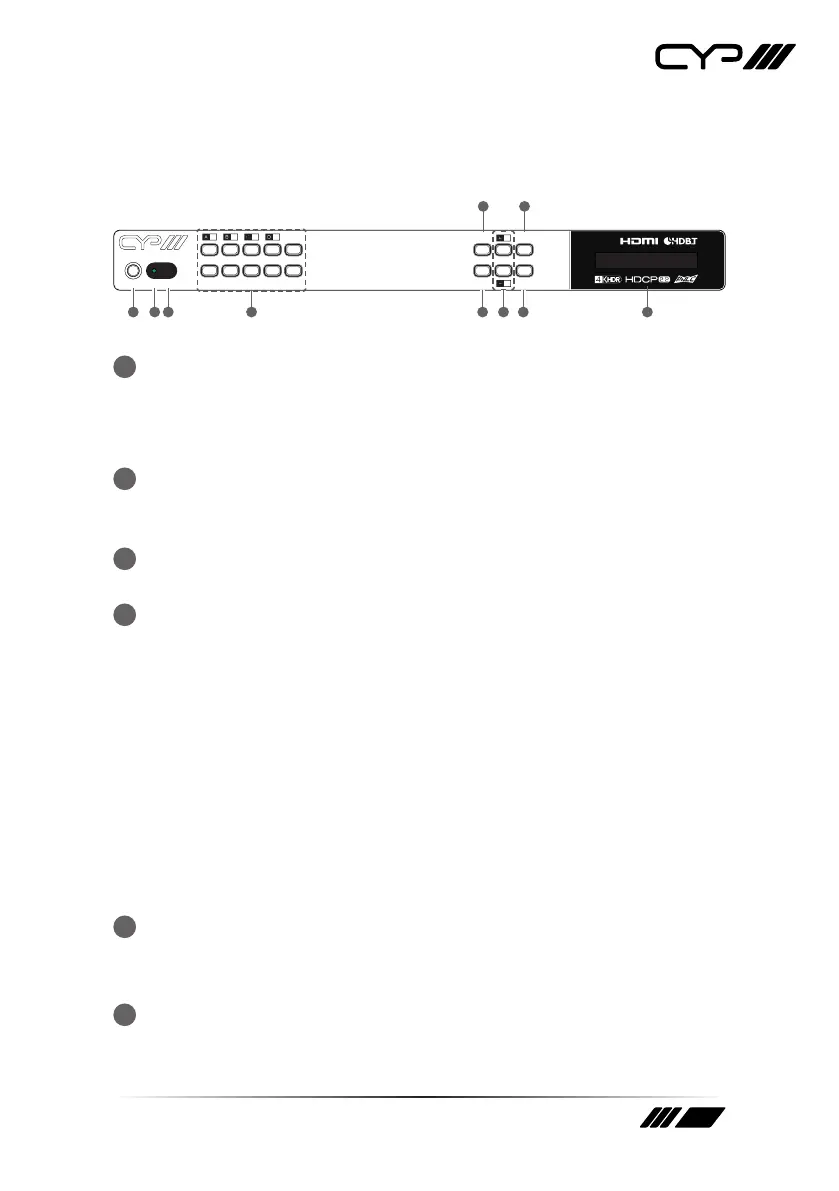

6.1 Front Panel
OUT
POWER
LOCK
1 2 3 4
98710
ENTER
PRESET
MENU
/CANCEL
IN
5
6
PUV-44XPL-AVLC
1 2 3 4 6 7 8 10
5 9
1
POWER Button: Press this button to power the unit on or place it into
stand-by mode.
Note: Network functionality and PoH remains active when the unit is in
stand-by mode.
2
POWER LED: This LED will illuminate green to indicate the unit is on
and receiving power. When the unit is in stand-by mode the LED will
illuminate red.
3
IR Window: Accepts IR signals from the included IR remote for control
of this unit only.
4
OUTPUT A~D/INPUT 1~4/NUMBER 1~10 Buttons: Press the “OUT”
button to enter output selection mode. Next, press the output keys
(A~D) of the outputs you wish to route a source to (they will flash to
indicate selection). Next, press the “IN” key followed by the input (1~4)
you wish to route to the selected outputs. Finally, press “ENTER” to
confirm your selection and execute the routing change.
For example, if you wish to display input 1 on outputs A~D then the
following sequence of button presses should be performed: OUT
→
A,
B, C, D
→
IN
→
1
→
ENTER
Note: When directly entering Ethernet address information into the unit
all 10 buttons are used to represent the numbers from 0 to 9 (button 10 =
0) to make number entry more streamlined.
5
MENU/CANCEL Button: Press to enter the OLED menu, or to back out
from menu items.
Note: For a description of the OLED menu tree, please refer to section 6.6.
6
ENTER Button: Press to confirm a selection or to go deeper into a
menu item.
