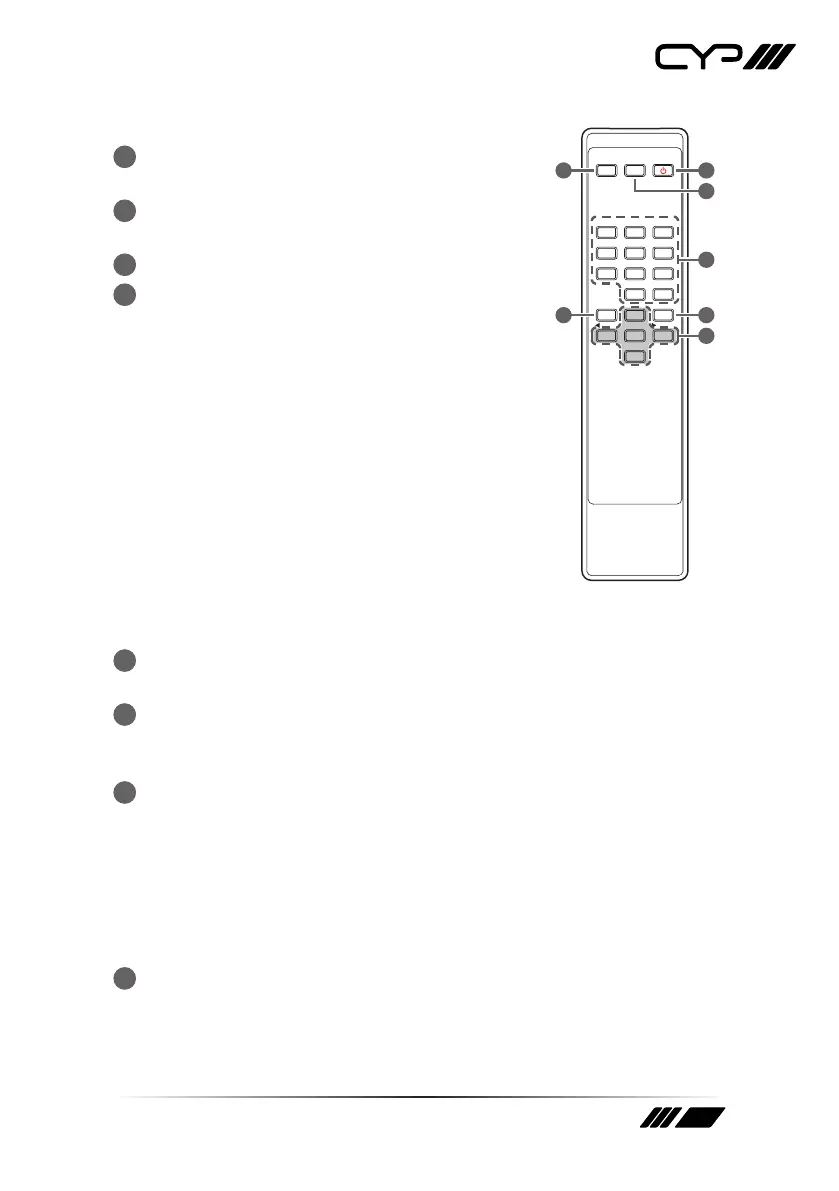

6.3 Remote Control
1
POWER Button: Press to power the unit on or
place it into stand-by mode.
2
LOCK Button: Press to lock/unlock the front
panel of the matrix unit.
3
MUTE Button: No function.
4
IN 1~4, OUT A~D & PATTERN Buttons:
[Local matrix control]: When controlling
the unit directly, input and output selection
behaves the same as the front panel buttons
with the “Pattern” button acting as an additional
test pattern source.
Note: Refer to section 6.1 for more details.
[Zone A/V Pairing]: When controlling the unit
via an HDBaseT receiver in a remote location,
pressing buttons 1~10 will switch to the A/
V source assigned to the number depending
on your current zone. These assignments are
configured via the WebGUI.
Note: Refer to section 6.7.2 for more details.
5
MENU/CANCEL Button: Press the “MENU/CANCEL” button to enter
the OLED menu, or to back out from menu items.
6
PRESET Button: Recall matrix presets. Press the “Preset” button
followed by a number button to recall the stored preset assigned to
that number. The presets are configured within the WebGUI.
7
+/IN Button: Within the menu, this button moves you up within the
menu tree. Otherwise, in routing mode, this button allows you to
make your input source selection.
-/OUT: Within the menu, this button moves you down within the
menu tree. Otherwise, this button starts routing mode and allows you
to begin your output destination selections.
◄
/VOL- &
►
/VOL+ Button: No function.
8
ENTER: Press this button to confirm selections.
Note: This remote control is designed for the full family of matrix
products. Some functions are not available on all units.
POWERLOCKMUTE
1/A 2/B 3/C
4/D 5/E 6/F
7/G 8/H 9/I
10/J PATTERN
+/IN
MENU/
CANCEL
PRESET
/VOL+
/VOL-
CR-163
ENTER
-/OUT
1
2
4
3
5
7
6
