3

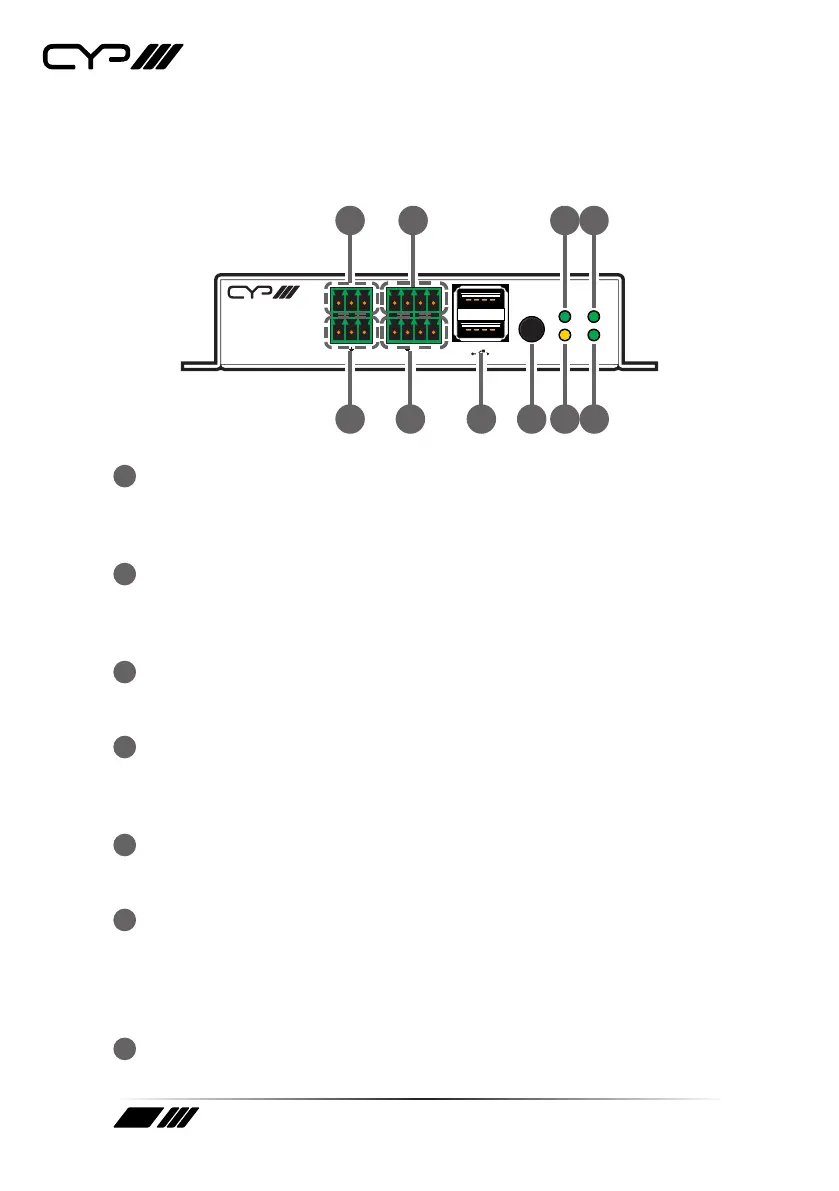

6. OPERATION CONTROLS AND FUNCTIONS
6.1 Front Panel
AUDIO IR
IN
OUT
LR R PWRT
TEST PASS
FAIL
LINK
PUV-3050TX-UA
2
1 3 7 9
4 5 6 8 10
1
AUDIO IN 3-pin Terminal Block: Connect to the analogue audio
output of a device such as a media player or game console using a
3-pin adapter cable. Audio is sent to the analogue audio output on
the connected compatible receiver.
2
AUDIO OUT 3-pin Terminal Block: Connect to powered speakers or
an amplier for analogue audio output using a 3-pin adapter cable.
Audio is sourced from the analogue audio input on the connected
compatible receiver.
3
RS-232 4-pin Terminal Block: Connect to a PC, laptop, or serial
controllable device with a 4-pin adapter cable for the extension of
RS-232 signals between both ends of the HDBaseT connection.
4
IR 4-pin Terminal Block (In/Out): Connect to both an IR Blaster and
Extender using a 4-pin Y-adapter cable to transmit and receive IR
control signals and extend them to devices connected to the other
end of the HDBaseT connection.
5
USB 2.0 Ports (Type-A): Connect directly to standard USB devices
such as a mouse, keyboard, or ash drive to extend their USB
functionality to the currently active Micro-USB host port.
6
TEST Button: Press this button to initiate a simple HDBaseT cable
quality test. While the test is in process, both the TEST and FAIL LEDs
will blink.
Note: This feature requires connection to a compatible receiver. This
function will not provide a result if no receiver is connected.
7
PASS LED: This LED will illuminate solidly to indicate that the most
