6. OPERATION CONTROLS AND FUNCTIONS

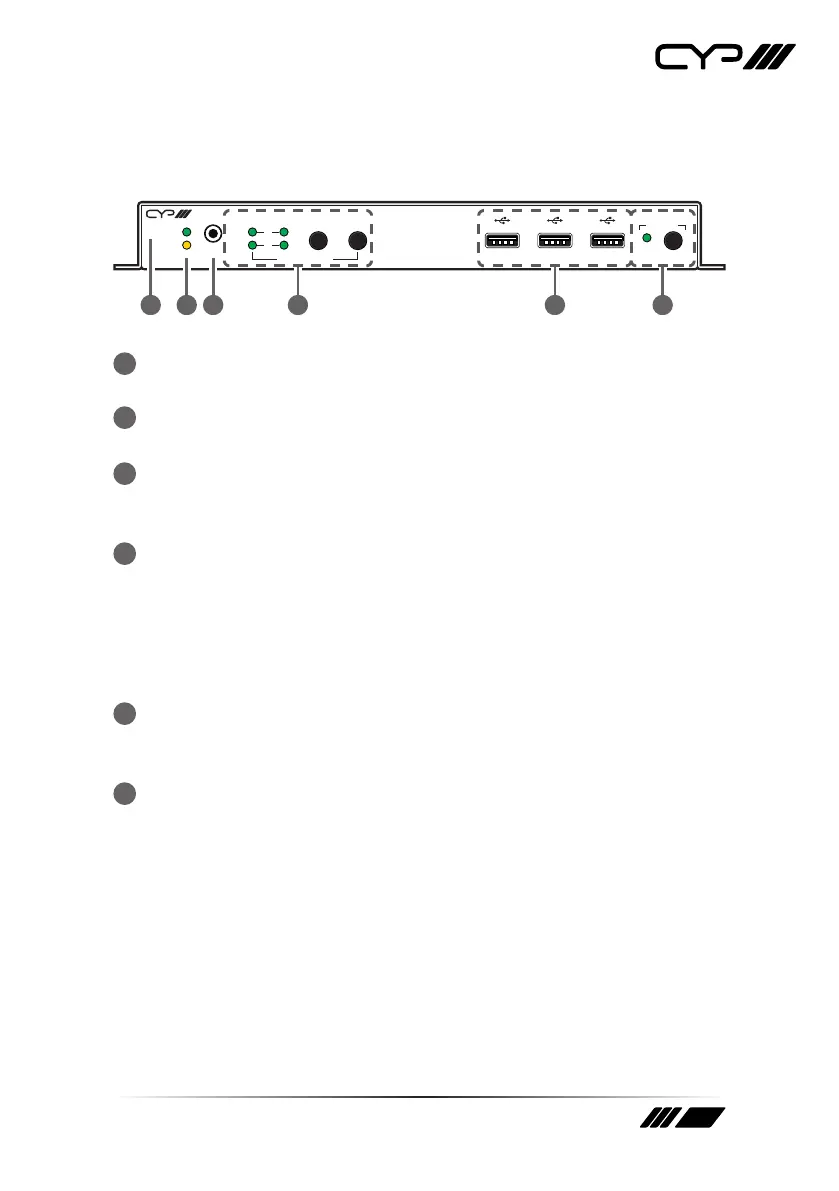

6.1 Front Panel
POWER
LINK
1OUT1
2OUT2
LOCAL
RS-232
HDMI OUT 1OUT 2CAT5e/6/7 USB
SELECT
VIDEO SELECT
SERVICE
PUV-2600RX
1 2 3 4 5 6
1
POWER LED: This LED will illuminate to indicate the unit is on and
receiving power.
2
LINK LED: This LED will illuminate solidly when a live connection with
a compatible Transmitter is active.
3
LOCAL RS-232 Port: Connect directly to a PC, laptop, or other serial
control device with a 3.5mm adapter cable to send RS-232 commands
to control the unit.
4
OUT 1 Button & LEDs: Press this button to toggle between the
available inputs for HDMI output 1. The OUT 1 LED will illuminate to
indicate which source is currently selected.
OUT 2 Button & LEDs: Press this button to toggle between the
available inputs for HDMI output 2. The OUT 2 LED will illuminate to
indicate which source is currently selected.
5
USB Device Ports (Type A): Connect directly to standard USB
devices such as a mouse, keyboard or flash drive to extend their USB
functionality to the currently active USB Host Port.
6
USB SELECT Button & LED: Press this button to toggle between
using the USB Host Port on the Receiver or the USB Host Ports on the
connected Transmitter. The LED will illuminate when the USB Host
Port on the Receiver is active. If the LED is off, then one of the USB
Host Ports on the connected Transmitter is active.
Note: Changing the USB host will force the HDBaseT connection to briefly
disconnect while it reconfigures. The connected host (PC, Laptop, etc.)
may also take a moment to detect all available devices.
