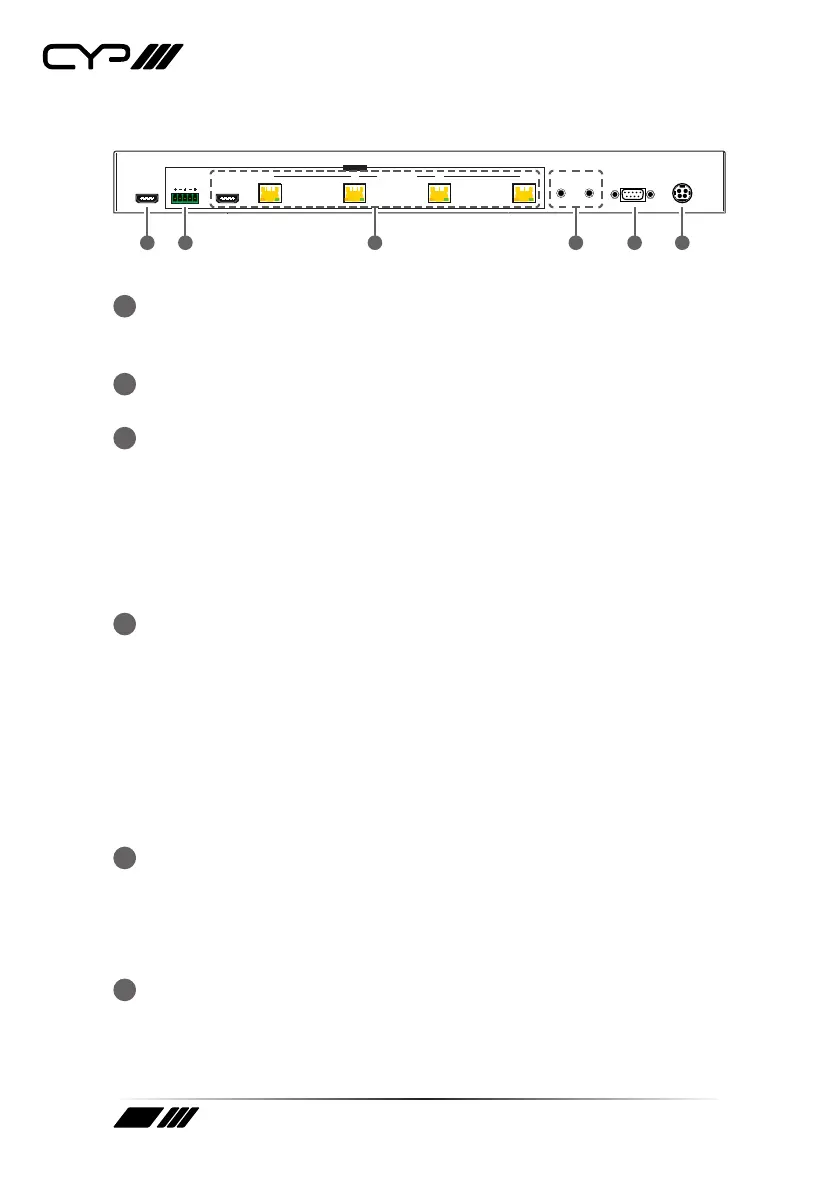

6.2 Rear Panel
HDMI IN
++
LR
IR IN IR OUT RS-232 DC 24V
HDMI
A
E
BCD
CAT 5e/6/7 OUT
OUT
ANALOG
1 2 3 4 5 6
1
HDMI IN Port: Connect to HDMI source equipment such as a media
player, game console, or set-top box. DVI sources are supported with
the use of an HDMI to DVI adapter.
2
ANALOGUE R/L Terminal Block: Connect to powered speakers or an
amplier for analogue stereo audio output.
3
OUTPUT PORT BLOCK
HDMI OUT E Port: Connect to an HDMI TV, monitor, or amplier for
digital video and audio output.
CAT 5e/6/7 OUT A~D Ports: Connect to compatible HDBaseT
receivers with single Cat.5e/6/7 cables for transmission of all data
signals. PoH will also be supplied to connected compatible PD
Receivers.
4
IR IN Port: Connect to an IR Extender to receive local IR control
signals and extend them to devices connected to the other end of all
HDBaseT connections. Ensure that the remote being used is within
direct line-of-sight of the IR Extender.
IR OUT Port: Connect to the provided IR Blaster to transmit IR signals
from the other end of the HDBaseT connection to devices within
direct line-of-sight of the IR Blaster.
Note: To help avoid potential simultaneous IR signal conicts, IR support
for each HDBaseT port and the local ports can be congured individually.
5
RS-232 Port: Connect to a PC, laptop, or serial controllable device for
the extension of RS-232 signals between this unit and the connected
HDBaseT receivers or to send RS-232 commands to control the unit.
Note: Switching between local control and RS-232 extension is congured
within the OSD menu.
6
DC 24V Port: Plug the 24V DC power adapter into this port and
connect it to an AC wall outlet for power.
