6. OPERATION CONTROLS AND FUNCTIONS

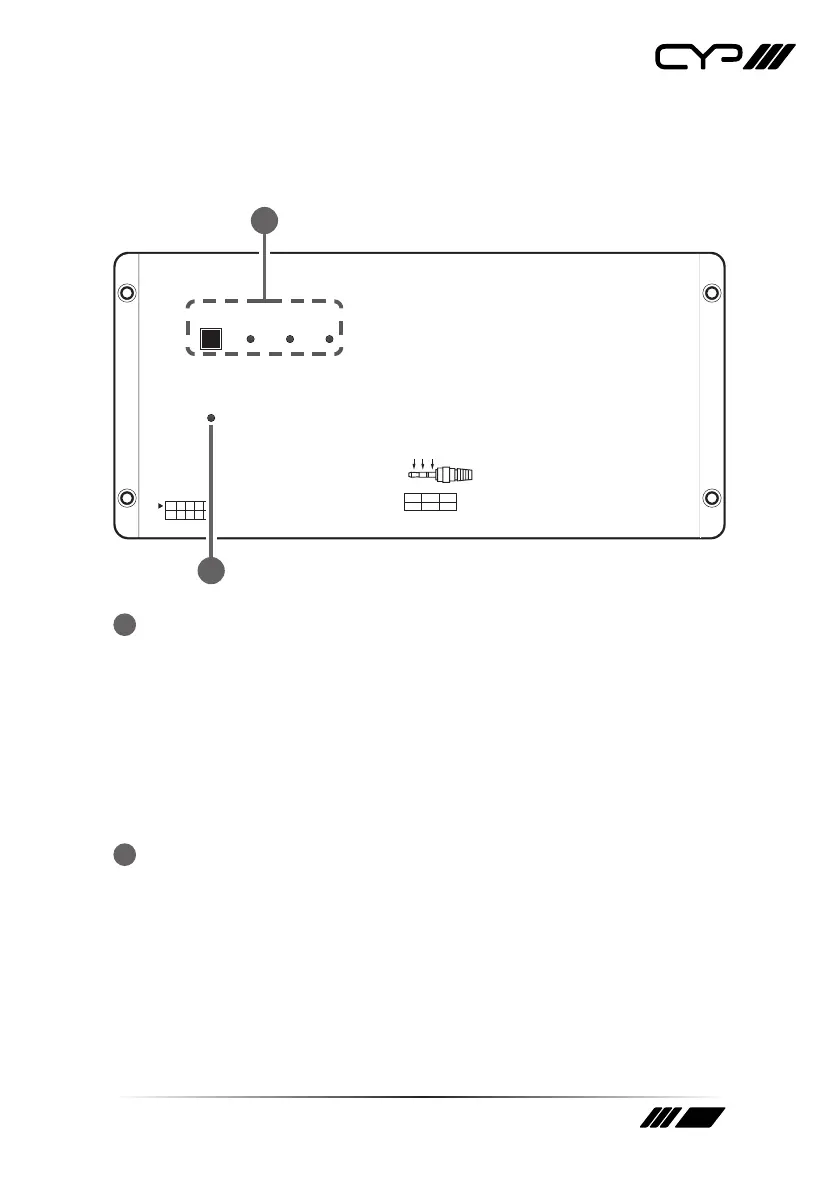

6.1 Transmitter's Top Panel
LANSERVICE RS-232TRIGGER IN IR OUTIR IN
IR IN
IR OUT
OUT
IN
GND GND
321
GND
3.3V
12
3
HDMI IN
DP IN HDMI OUT
CAT 5e/6/7 OUT
VGA IN
AUDIO IN
8
5V
65
4
GND
213
7
LOCK
SOURCE VGA
IN
HDMI
IN
DP
IN
2
1
1
SOURCE & LEDs: Press this button to sequentially switch through
the available inputs. The LED will illuminate GREEN to indicate which
source is currently selected. Live, but unselected, sources will be lit
RED.
This unit supports a total of 4 sources (3 on the Tx, 1 on the Rx). The
selection sequence is: Tx VGA
→
Tx HDMI
→
Tx DP
→
Rx HDMI
→
Tx
VGA
→
Etc. When the Rx’s HDMI input is selected, the Tx’s local
mirrored HDMI output will continue to display the last local input that
was selected.
2
LOCK LED: This LED will be lit when the unit’s controls are in the
locked state.
