10

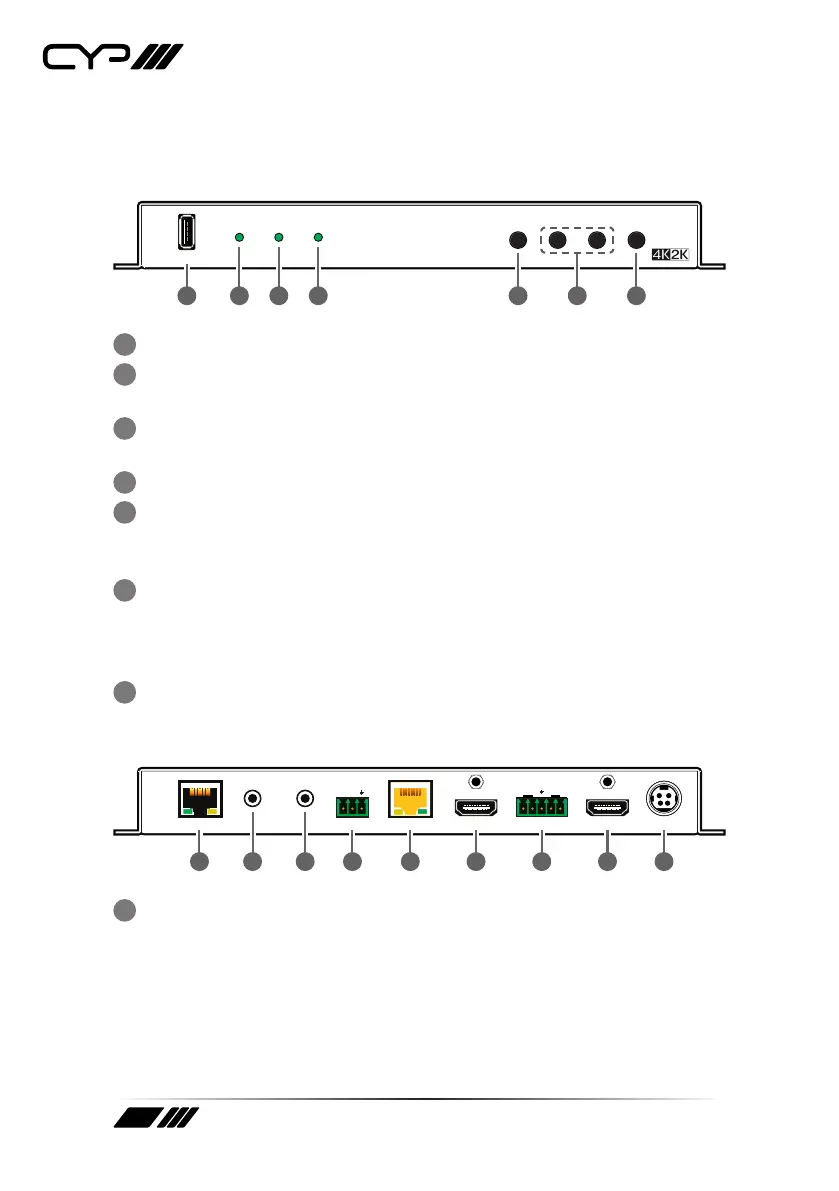

6. OPERATION CONTROLS AND FUNCTIONS
6.1 Transmitter Front Panel
POWER 4K2K SYNC MENU ENTER
TEST PATTERN
-
+
SERVICE
PUV-1550S-TX
1 2 3 4 5 6 7
1
SERVICE: This slot is reserved for rmware update use only.
2
POWER: This LED will illuminate to indicate the unit is on and
receiving power.
3
4K2K: This LED will illuminate to indicate the input source contains a
4K UHD signal.
4
SYNC: This LED will illuminate when a live input source is detected.
5
MENU: Press to enter the OSD menu, or to back out from menu items.
Press and hold this button together with the “-” button for 3 seconds
to reset the unit back to factory defaults.
6
DOWN & UP/TEST PATTERN: When the OSD menu is in use, press
these buttons to move within the menu. Outside of the OSD,
press these buttons together to instantly set the output timing to
1280×720@60Hz and display test patterns on both outputs.
7
ENTER: Press to conrm a selection or to go deeper into a menu item.
6.2 Transmitter Rear Panel
DC 24V
LAN HDMI OUT HDMI INCAT5e/6/7 OUT
IR OUTIR IN
L
R
+ −
RX TX
+ −
AUDIO OUTRS232
1 2 3 4 5 6 7 8 9
1
LAN: Connect to an Ethernet supporting device or to your local
network as appropriate. The yellow LED will illuminate to indicate a
successful LAN connection between the Transmitter and Receiver,
however, if the yellow LED blinks irregularly it indicates a data link
error. The green LED will illuminate when the connected Ethernet
speed is 100Mbit/s.
