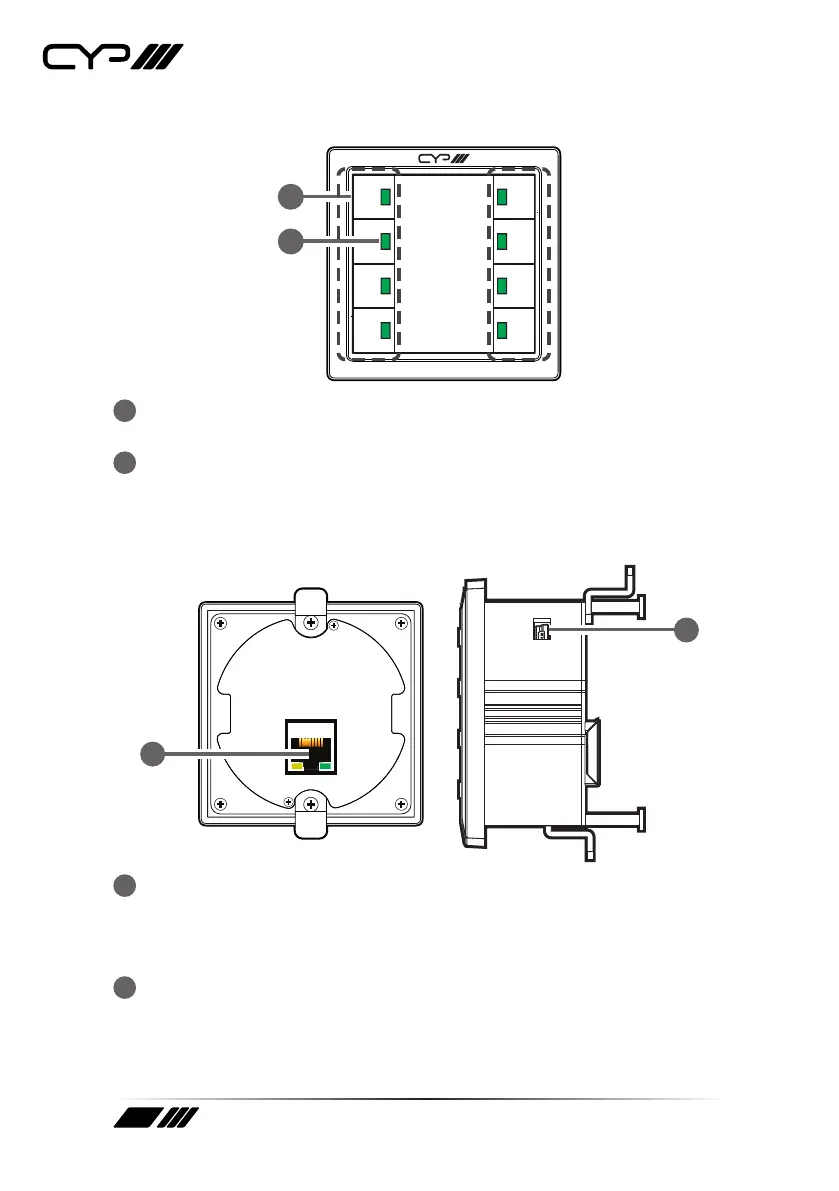

6.6 Front Panel (Keypad)
HDMI
INPUT
DISPLAY
ON
VOLUME
UP
VOLUME
DOWN
AUDIO
MUTE
AUDIO
SWITCH
DISPLAY
OFF
VGA
INPUT
2
1
1
Control Buttons 1~8: Press any of these buttons to activate the
associated function.
2
Control Button LEDs: Each button’s LED will light up green when the
button is pressed and the associated trigger function is activated.
6.7 Rear Panel (Keypad)
CONTROL
KEYPAD
1
2
1
KEYPAD CONTROL Port: Connect directly to the Keypad Control port
on the transmitter to provide a direct control interface for that unit.
Note: The signal carried over the RJ-45 cable is RS-232 plus power. It is not
compatible with any standard Ethernet products.
2
USB 2.0 Port (Mini-B): This port is reserved for firmware update use
only.
Note: This port is located on the top of the unit and will be unavailable
when installed in a wall.
