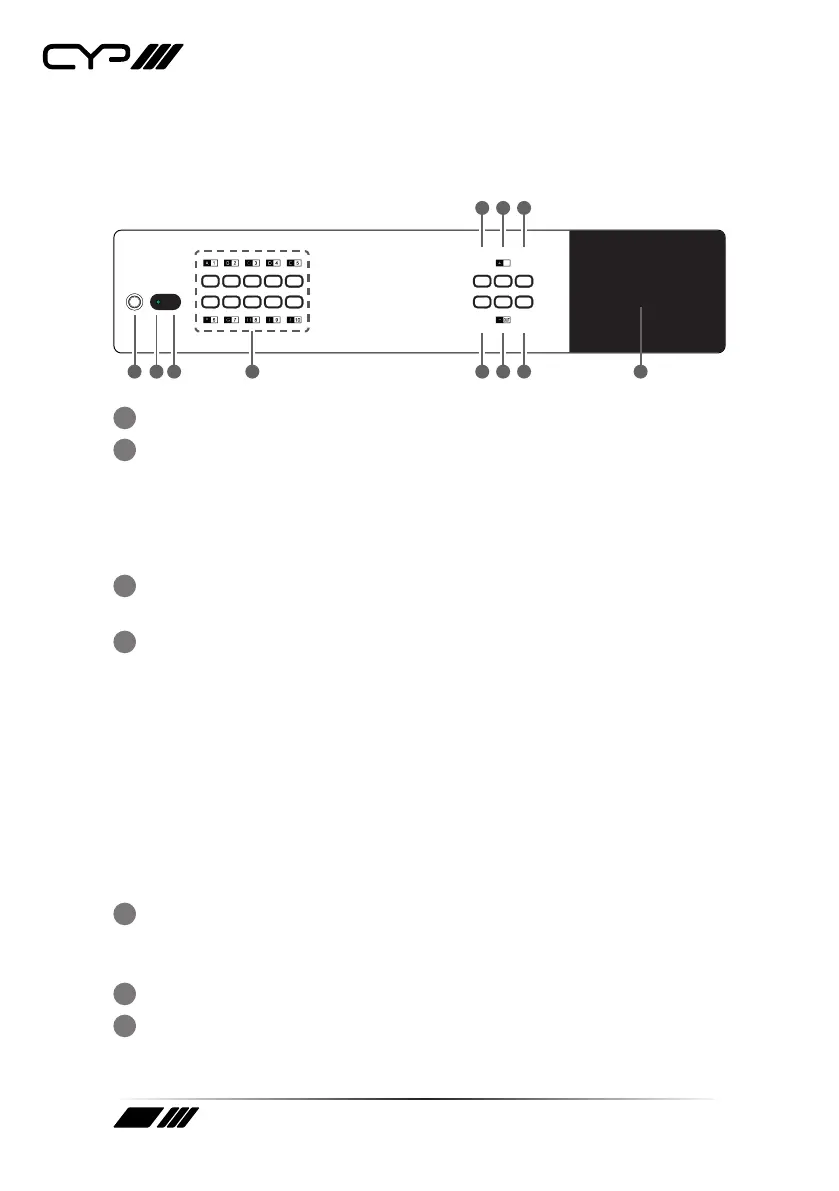

6. OPERATION CONTROLS AND FUNCTIONS
6.1 Front Panel
POWER
ENTER
PRESET
MENU
/CANCEL
LOCK
IN
PUV-1082PL-4K22
IP:192.168.0.254
21 3 6 8 10
5 7 9
114
1
POWER: Press this button to power on/ o device.
2
POWER LED: The LED will illuminate in green when the power is on,
and shown in red when power o this device.
The network function will remain active once press this power o
button. This is for connected Receiver can get power when matrix unit
be power o.
3
IR WINDOW: Receiving remote control signal to control this device,
please use the remote control unit supplied in the package.
4
OUTPUT A~J & INPUT 1~10: Press “OUT” button to select the output
source (A~J). Next, press output keys (A~J) to select output source;
then press “IN” key to select input source (1~10). Finally, press “ENTER”
to conrm selection.
For example, if outputs A~D need to be assign to input 1, following
sequences of button presses need to be performed:
OUT
→
A,B,C,D
→
IN
→
number key “1”
→
ENTER
If all output source would like to be assigned to single input, press
“OUT” button and all input buttons “A~J” then press “IN” and enter the
number key of input and enter to conrm the selection.
5
MENU & CANCEL: Press “MENU” button to access the LCM menu. The
menu tree please refers to section 17. Press “CANCEL” button to cancel
the selection.
6
ENTER: Press this button to conrm the selection.
7
PLUS (+)/IN: Press Plus “+” button to navigate up button selection.
Press “IN” button for input port sources selection.
