LAN PORT: Connect to an active Ethernet network to allow for Telnet
and WebGUI control of the matrix as well as to share the network
with connected compatible LAN equipped HDBaseT receivers.
This allows for any Ethernet equipped device (e.g. a smart TV or
game console) connected to the LAN port of a receiver to share the
network/Internet access.
11
RS-232 PORT: Connect directly to your PC/laptop to send RS-232
commands to control the unit.
12
SERVICE PORT: Used for firmware service updates in the field via
USB thumb drive. After connecting a USB thumb drive containing
appropriate firmware, please navigate via the front panel menu to:
5-Firmware
→
2-Update
→
YES to begin the firmware update.
13
MAIN 24V & PoH 24V PORTS: Plug one of the 24V power supplies
(included in the package) into the port marked “MAIN 24V” to power
the matrix unit. If you wish to connect PoH powered HDBaseT
receivers to the matrix, please plug the second 24V power supply into
the “POH 24V” port. This will allow the matrix to provide 48V PoH to all
connected HDBaseT receivers.
Note: The 48V PoH function is designed to power compatible Receiver
units only. Non-PoH Receivers will need their own power supply. Other
Receiver brands may not be compatible.
6.3 Side Panel
1
1

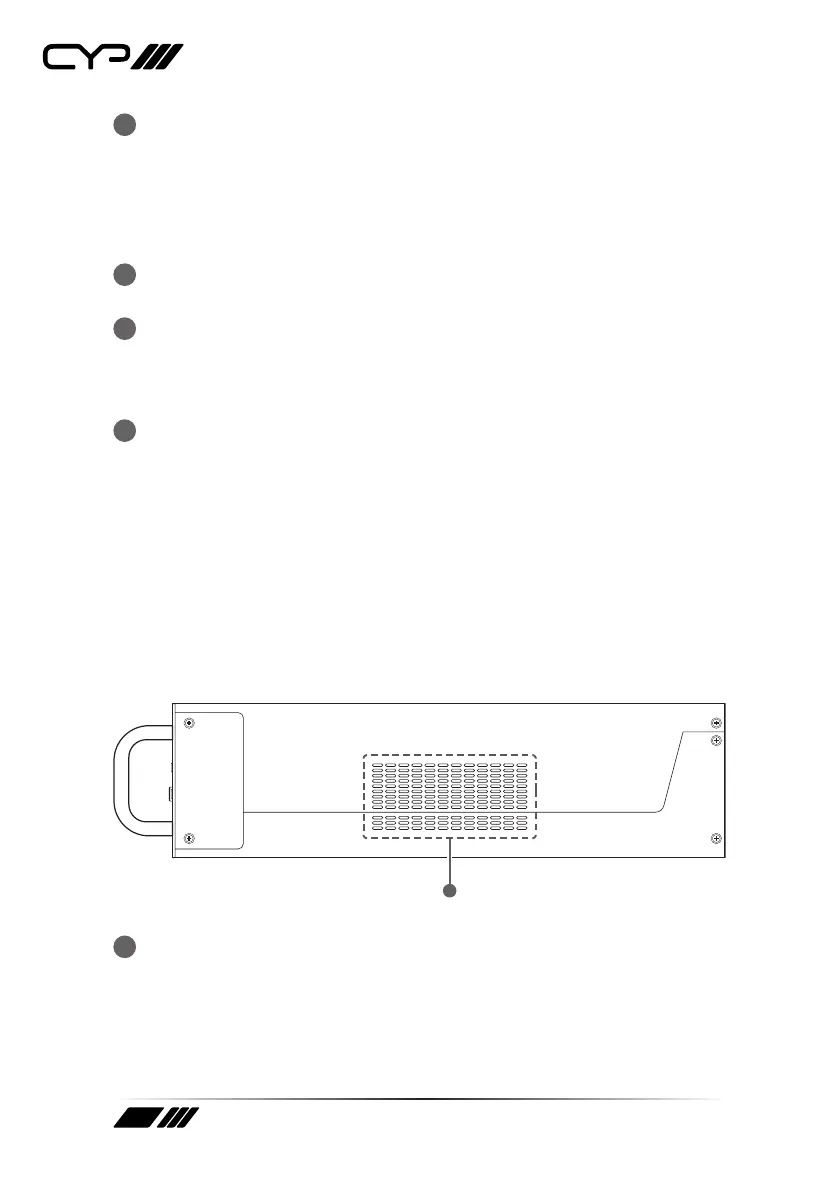

VENT FAN: These vents are for are for air ventilation. Please allow
adequate space around the unit for air circulation.
Warning: DO NOT block the airflow from these vents or cover them
with any objects.
