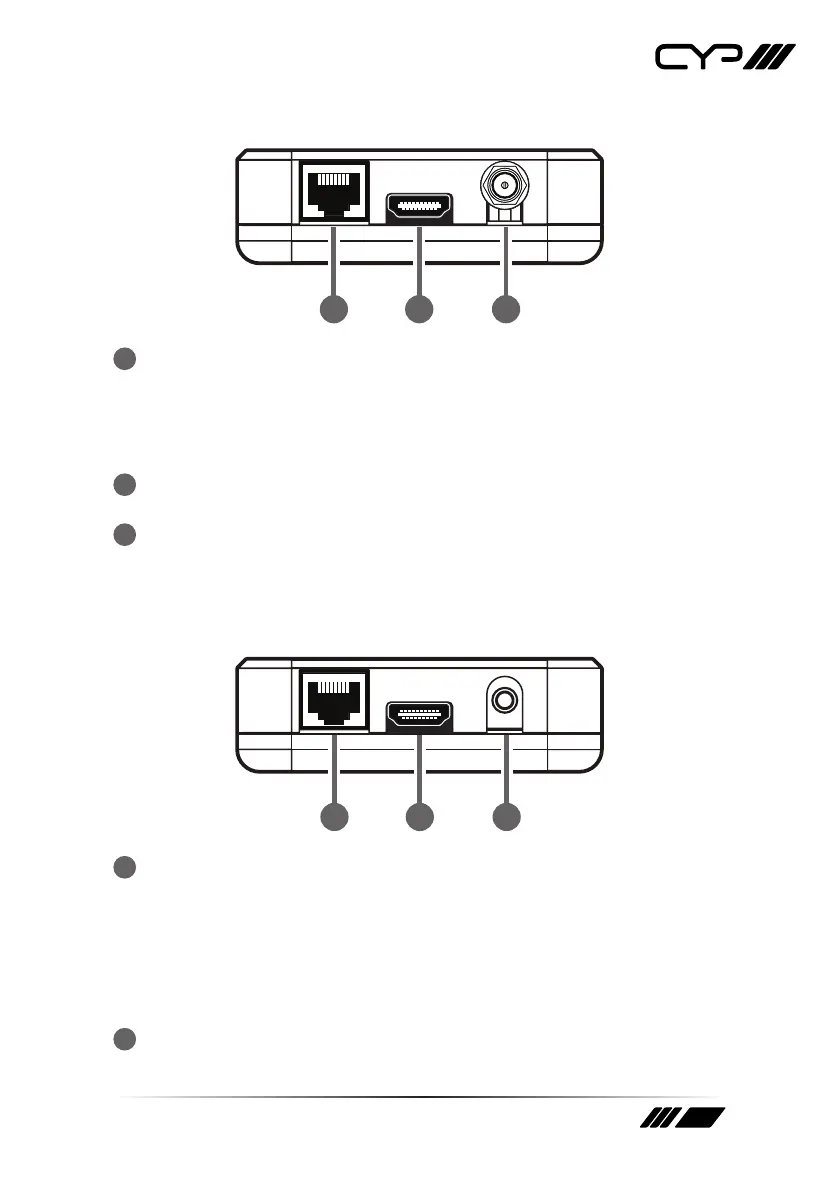

6.3 TX Rear Panel
CAT6 OUT
DC 12V
HDMI OUT
1 2 3
1
CAT6 OUT Port: Connect to a compatible receiver with a single Cat.6,
or better, cable for transmission of all data signals. PoC will also be
supplied to a connected compatible PD receiver.
Note: The PoC function is designed to send power to compatible receiver
units only. Other brands of receiver may not be compatible.
2
HDMI OUT Port: Connect to HDMI TVs, monitors, or ampliers for
digital video and audio output.
3
DC 12V Port: Plug the 12V DC power adapter into this port and
connect it to an AC wall outlet for power. The top LED will illuminate
red to indicate the unit is on and receiving power.
6.4 RX Rear Panel
CAT6 IN
EXTRACT
HDMI OUT
1 2 3
1
CAT6 IN Port: Connect to a compatible Cat.6 transmitter with a
single Cat.6, or better, cable for reception of all data signals. Power
via PoC is also supplied to this unit by the connected compatible PSE
transmitter.
Note: The PoC function is designed to receiver power from compatible
transmitter units only. Other brands of transmitter may not be
compatible.
2
HDMI OUT Port: Connect to HDMI TVs, monitors, or ampliers for
digital video and audio output.
