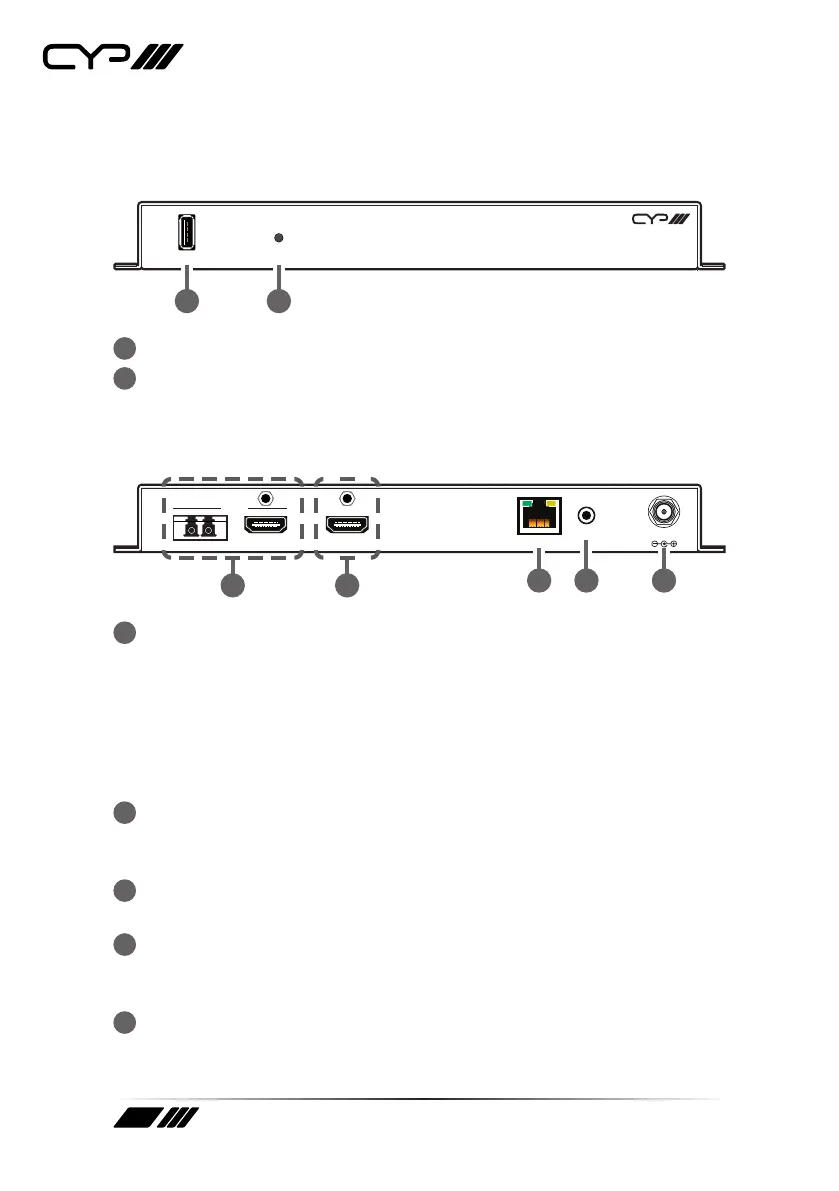

6. OPERATION CONTROLS AND FUNCTIONS
6.1 Front Panel
SERVICE POWER
PRO-F12TX
21
1
SERVICE: This slot is reserved for firmware update use only.
2
POWER LED: This LED will illuminate to indicate the unit is on and
receiving power.
6.2 Rear Panel
OUT
DC 5VRS-232
CONTROL
FIBER A
HDMI 1HDMI B
3
21
4 5
1
FIBER A & HDMI B OUT: Connect the HDMI output to an HDMI TV,
monitor or amplifier for digital video and audio output. Connect
the fiber (paired LC) output to the fiber input on a compatible fiber
Receiver or Transceiver unit.
Note: HDMI sources with bandwidth higher than 10.2Gbps are
automatically chroma and/or bit-depth subsampled for transmission
over the fiber output.
2
HDMI IN: Connect to HDMI source equipment such as a media player,
game console or set-top box. DVI sources are supported with the use
of an HDMI to DVI adapter.
3
CONTROL: Connect directly, or through a network switch, to your PC/
laptop to control the unit via Telnet/WebGUI.
4
RS-232: Connect, via the provided 9-pin adapter cable, to a PC, laptop
or other serial control device to send RS-232 commands to control the
unit.
5
DC 5V: Plug the 5V DC power adapter into the unit and connect it to
an AC wall outlet for power.
