9
12
MUTE: The “MUTE” button functions as a blank audio/video source.
To use it, follow the standard matrix routing instructions, but use the
“MUTE” button as the input to blank out the selected outputs. When a
“MUTE” input is in use it will show up as “M” within the routing display.
13
LCD WINDOW: Displays the unit’s menu, settings and information.

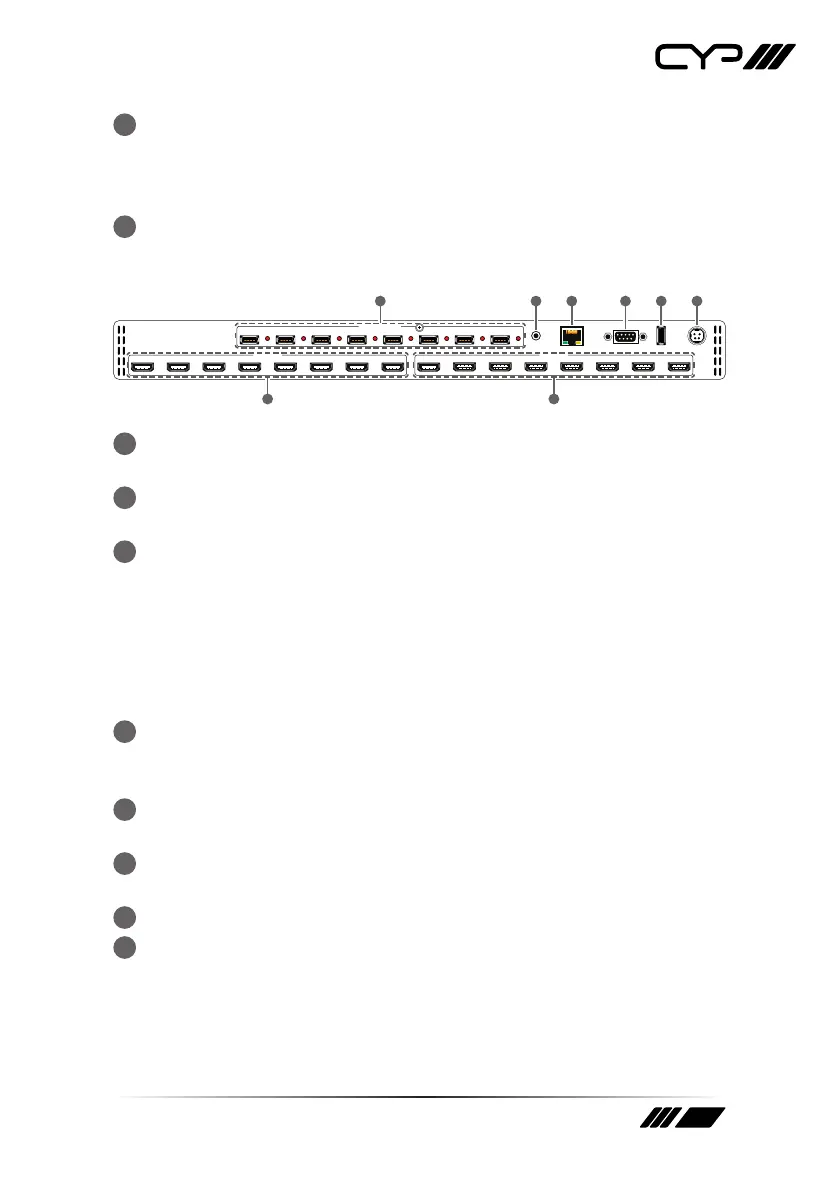

6.2 Rear Panel
12345678
HDMI IN
ABCDEFGH
HDMI OUT
USB 5V/1A OUT
1 2345678
CONTROL RS232 SERVICE DC 24V
IR IN
1 2
3 6
5
4
7 8
1
HDMI IN 1~8: Connect to HDMI source equipment such as media
players, game consoles or set-top boxes.
2
HDMI OUT A~H: Connect the HDMI outputs to devices such as HDMI
TVs, monitors or amplifiers for digital video and audio output.
3
USB POWER OUTPUT 1~ 8: Each USB port provides 5V/1A of power
intended for use with HDMI over AOC (Active Optical Cables) fiber
optic video extension cables. Power on each port may be individually
enabled/disabled.
Note: If a USB device requiring more than 1A is connected, the port will
automatically shut off to prevent an overload and the red LED will turn
on.
4
IR IN: Connect to the provided IR Extender to extend the IR control
range of the unit. Ensure that the remote being used is within direct
line-of-sight of the IR Extender.
5
CONTROL: Connect directly, or through a network switch, to your PC/
laptop to control the unit via Telnet/WebGUI.
6
RS-232: Connect directly to a PC, laptop or other serial control device
to send RS-232 commands to control the unit.
7
SERVICE: This slot is reserved for firmware update use only.
8
DC 24V: Plug the 24V DC power adapter into the unit and connect it
to an AC wall outlet for power.
