Je bekijkt pagina 9 van 64
4

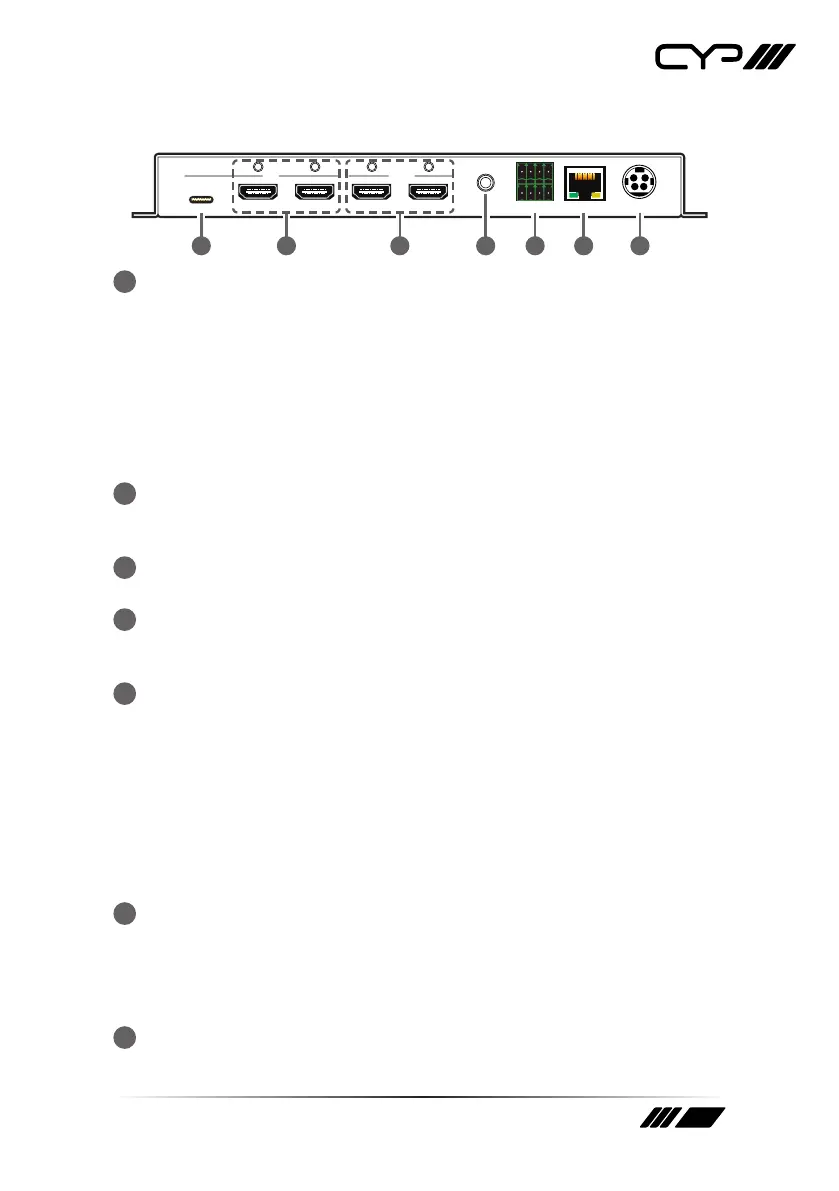

6.2 Rear Panel
DC 24VLAN
LINE OUT
OUT
HDMI B HDMI A
IN
HDMI 1 HDMI 2 RS-232
CTL
CLI
USB-C
21 3 4 5 6 7
1
USB-C IN Port: Connect to USB Type-C host or video source
equipment such as a PC or laptop. When the USB-C port has “Super
Speed” support active, this port can support 4K30 A/V, Ethernet, and
USB simultaneously. When “Super Speed” is disabled, this port will
support full bandwidth 4K60 A/V content but USB data functionality
will be limited to USB 2.0 levels.
Note: Not all devices with USB Type-C ports can support video output.
Please verify that the device supports video output from the USB Type-C
port before attempting to use it as a video source.
2
HDMI IN 1 & 2 Ports: Connect to HDMI source equipment such as
media players, game consoles, or set-top boxes. DVI sources are
supported with the use of an HDMI to DVI adapter.
3
HDMI OUT A & B Ports: Connect to HDMI TVs, monitors, or amplifiers
for digital video and audio output.
4
LINE OUT Port: Connect to powered speakers, headphones, or
an amplifier for analogue stereo audio output extracted from the
selected HDMI output (LPCM 2.0 sources only).
5
RS-232 CTL 4-pin Terminal Block: Connect to the device you wish to
control via a 3-pin adapter cable to receive event automation RS-232
commands from the unit.
RS-232 CLI 4-pin Terminal Block: Connect directly to a PC, laptop, or
other serial control device with a 3-pin adapter cable to send RS-232
commands to control the unit.
Note: The 24 volt pins are included to provide power to a dedicated
external control product and should NOT be used when connecting a
standard RS-232 device.
6
LAN Port: Connect directly, or through a network switch, to your
PC/ laptop to control the unit via Telnet/WebGUI and to extend the
network across the USB Type-B and Type-C ports.
Note: The USB Type-C port must be in “Super Speed” mode to support
Ethernet extension.
7
DC 24V Port: Plug the 24V DC power adapter into this port and
connect it to an AC wall outlet for power.
