8

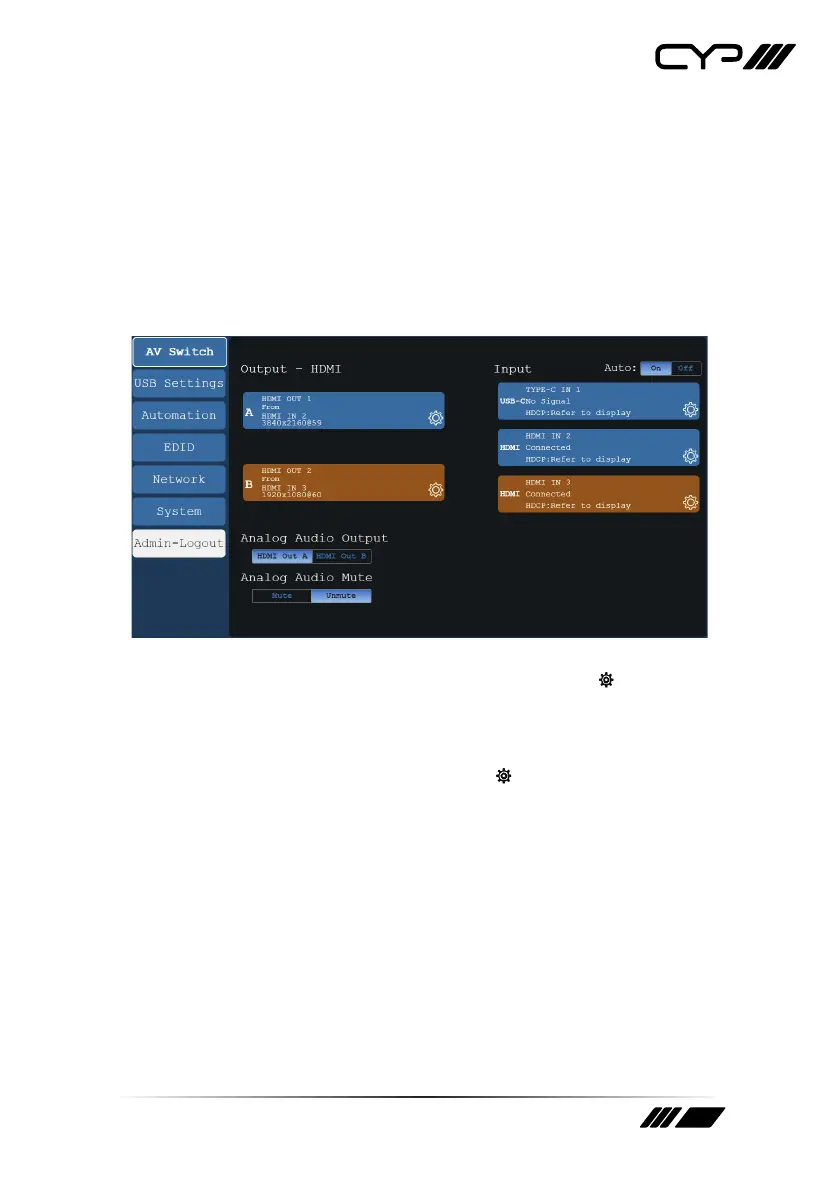

6.4.1 AV Switch Tab
This tab provides A/V routing control, HDCP management, auto switch
control, analogue audio controls, and I/O renaming options. To assign a
new
A/V route, select one or both output buttons on the left and then click on
the button of the preferred input source on the right. As each button is
selected they will become highlighted. The new route will become active
immediately and the routing information displayed on the buttons will
change accordingly.
1) Output: These buttons display each output’s name and details about
the currently routed inputs. Clicking on the “Edit” icon ( ) opens up
the Output Edit window.
2) Input: Buttons for selecting the input to route to an output. Details
about each input’s name and current sync/HDCP settings are also
displayed here. Clicking on the “Edit” icon ( ) opens up the Input Edit
window.
3) Auto: Auto input switching may be enabled or disabled by clicking on
the On/Off slider to toggle the setting.
Note: This setting affects the source selection behavior for both outputs at
the same time.
4) Output Edit: Provides control over the name of the output and, for
output A only, control over the 4K downscale options.
