37
green, and blue. Click the “Save” button to store the current keying
color ranges to the selected User Preset. Click the “Test” button see
the eect of changes made to the keying ranges without saving them.
Press the “Revert” button to return all ranges to the values saved in the
current User Preset.
Note: If a fixed preset is currently selected, the values will be displayed, but
cannot be modified.

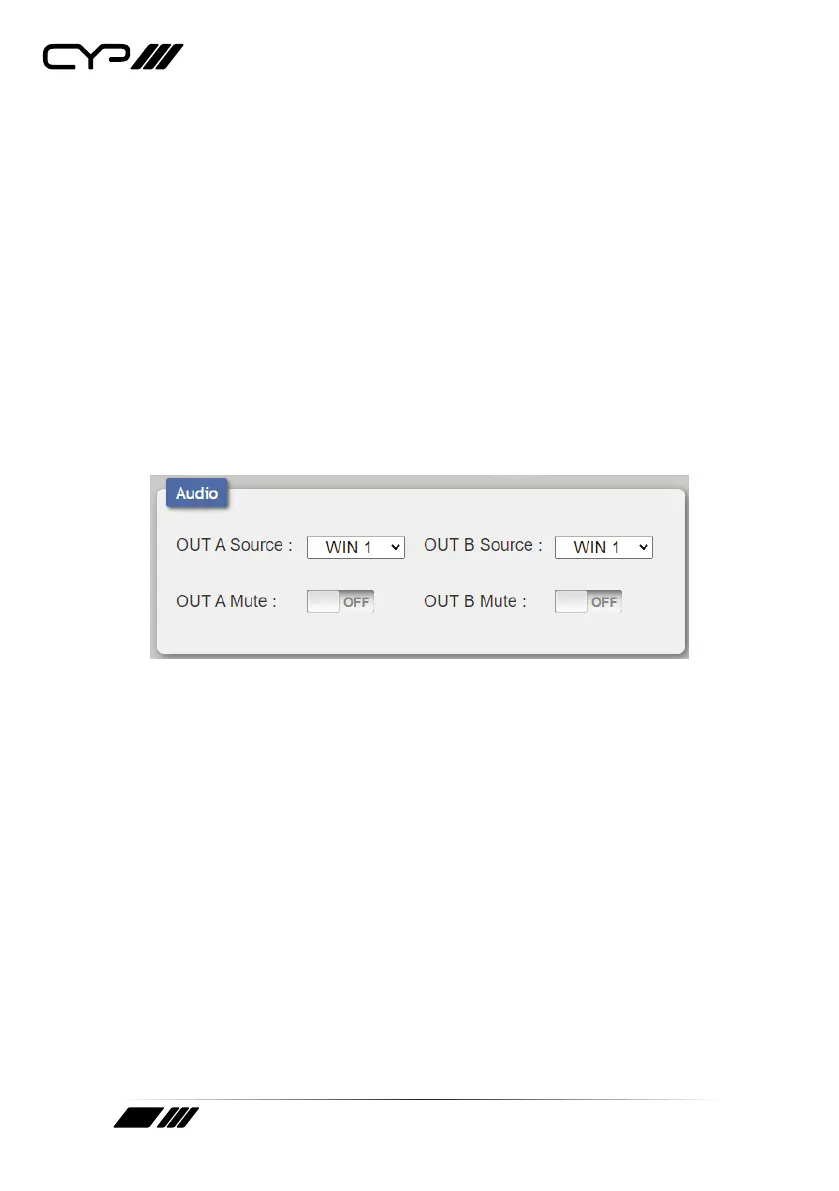

6.4.5 Audio Tab
This tab provides control over the audio output behavior of the unit,
including routing selection and muting.
Note: Due to Matrix mode only supporting a single “window”, changing
modes between a multi-windowing mode and Matrix mode when an audio
source is set to windows 1~3 will result in the source reverting to window 1.
1) OUT A Source: Use the dropdown to choose the audio source to pair
with video output A.
■
IN 1~3: Always use the audio from the specied input.
■
WINDOW: Always use the audio from the currently selected input.
Note: WINDOW is only available in matrix mode.
■
WIN 1~3: Always use audio from the source currently displayed in
the specied window.
Note: WIN 1~3 is not available as a source in Matrix mode.
2) OUT B Source: Use the dropdown to choose the audio source to pair
with video output A.
■
IN 1~3: Always use the audio from the specied input.
■
WINDOW: Always use the audio from the currently selected input.
Note: WINDOW is only available in matrix mode.
■
WIN 1~3: Always use audio from the source currently displayed in
