33
Side-by-Side Big Small Big Small 2
Note: Only available when Auto mode is active.

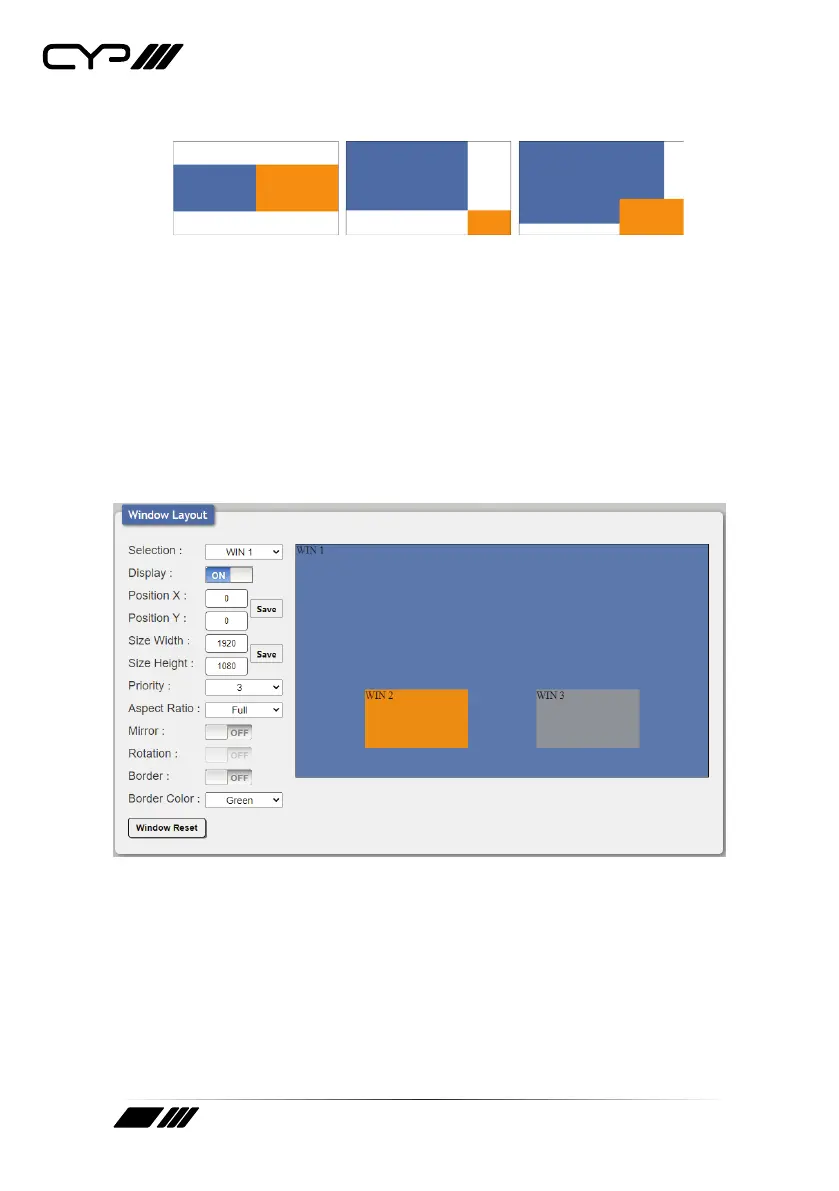

6.4.2 Window Layout Tab
This tab provides control over the position, size, aspect, priority, and
other settings of each window in multi-viewer modes. A graphical
representation of the layout is also provided. When the unit is in the
Matrix or Auto modes, only a limited selection of controls are available.
Note: Only the information from the currently selected window/input is
displayed. A window’s position and size cannot exceed the current output
resolution.
1) Selection: In multi-windowing modes, use the dropdown to select
the window to modify. In Matrix mode select the input to modify.
Note: Changes made while a “Preset” video mode is selected will
automatically be applied and saved to that preset.
2) Display: Enable or disable the currently selected window.
Note: Not available in Matrix or Auto modes.
3) Position X/Y: Set the X and Y coordinate position of the upper left
