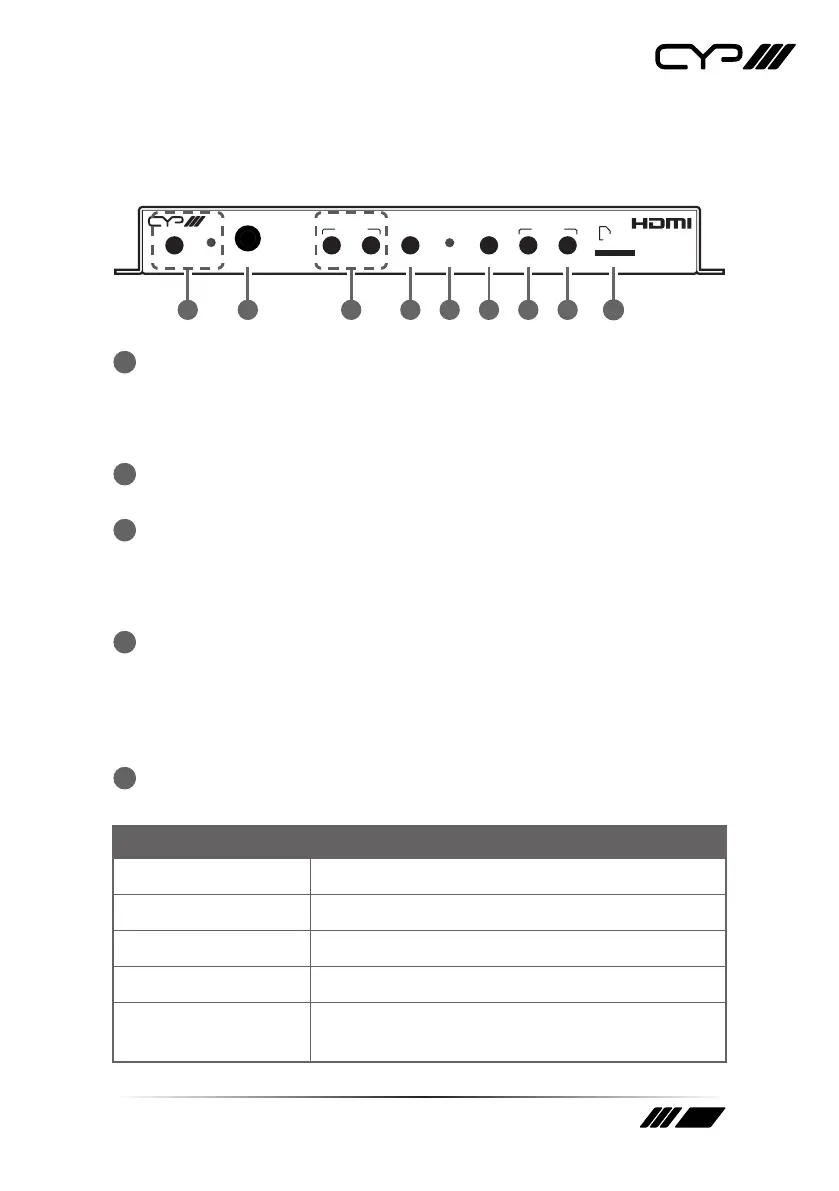

6. OPERATION CONTROLS AND FUNCTIONS
6.1 Front Panel
SELECTSTARTPOWERIRSTOP SOURCE START IP-XTREAM-R
AUDIO
RECORD STREAM
STORAGE
Micro SD
STOP
1 2 4 5 6 7 8 93
1
POWER Button & LED: This LED will illuminate green to indicate the
unit is on and receiving power. When the unit is in stand-by mode the
LED will illuminate red.
Note: The Power LED will blink while video recording is active.
2
IR Window: Accepts IR signals from the included IR remote for control
of this unit only.
3
RECORD START Button: Press this button to immediately start
recording to the designated recording target.
RECORD STOP Button: Press this button to immediately stop any
current recording session.
4
SOURCE Button: Press this button to toggle between the HDMI
and VGA inputs. The status LED will change depending on the input
selection.
Note: Changing the input source will cause the video stream to restart.
Connected stream targets may need to be restarted or reconnected.
5
Status LED: This multi-function LED indicates the current video
source selection, audio mixer state and RTMP streaming client status.
LED State Description
●
RED
Video source is VGA
●
BLUE
Video source is HDMI
●
PURPLE
Video source is HDMI, Audio Mixer is enabled
Solid (any colour)
RTMP streaming client is inactive
Blinking (any co-
lour)
RTMP streaming client is active
