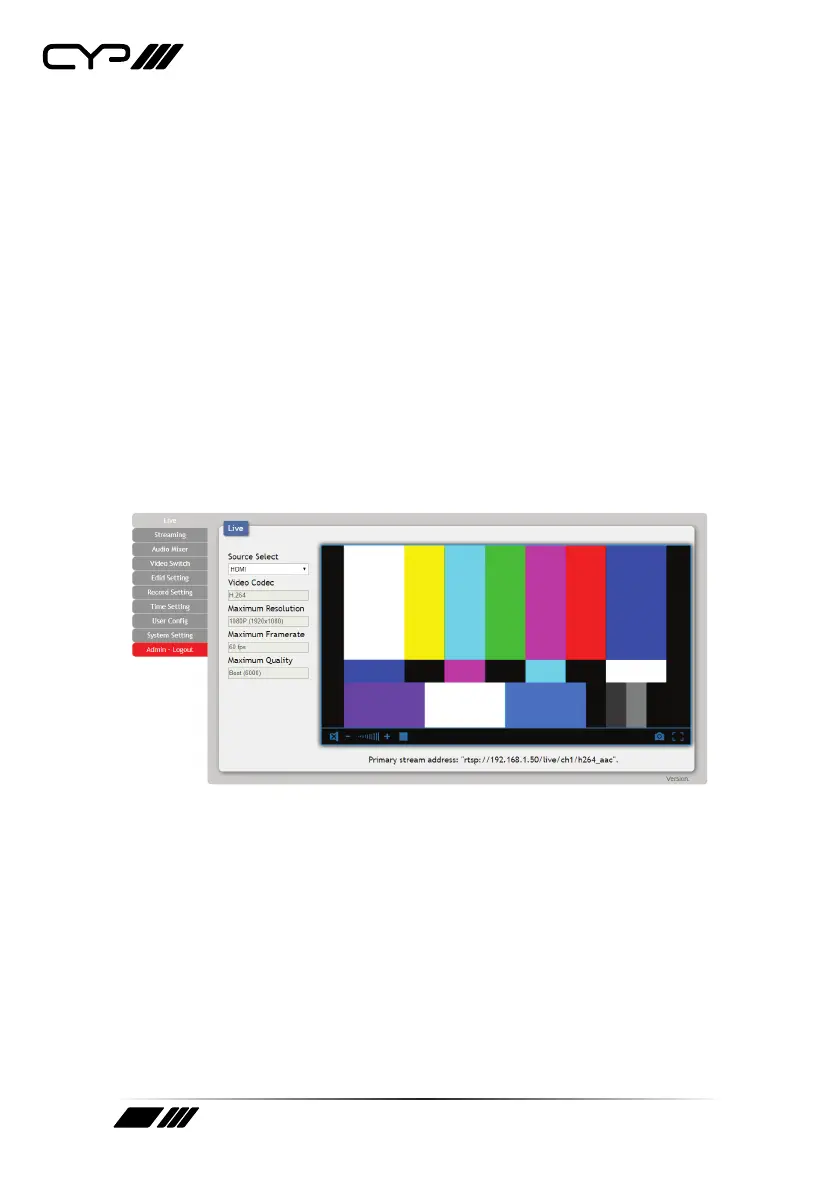

6.5.1 Live Tab
This tab provides viewing access to the first local video stream channel (of
4 channels total) generated by the unit. The video source can be selected
here and the stream resolution, framerate and bitrate is also displayed.
At the bottom of the page, a connection address for local video stream
channel 1 is displayed in the format: “rtsp://xxx.xxx.xxx.xxx/live/ch1/h264_
aac” (xxx.xxx.xxx.xxx = the unit’s current IP address). When 3rd party video
player software with RTSP streaming support is used to view streams
from this unit, this is the URL that should be used to connect. To view
streaming channels 2~4, change “ch1” in the address to “ch2”, “ch3”, or “ch4”,
as appropriate.
Note: The Channel 1 configuration is set on the “Record Setting” tab. Channels
2~4 contain the same video content presented at different streaming
resolutions. Channel 2 matches the current settings from the “Streaming” tab,
Channel 3 is 640x480@30fps, and Channel 4 is 320x240@30fps.
1) Source Select: Select the video input (HDMI or VGA) to stream.
Note: Changing the input here will change it globally across the unit.
2) Video Codec: Indicates the video codec used for the video stream.
Note: Currently, only H.264 is supported.
3) Maximum Resolution: Displays the current maximum resolution for
streaming channel 1.
4) Maximum Framerate: Displays the current maximum framerate for
streaming channel 1.
