9

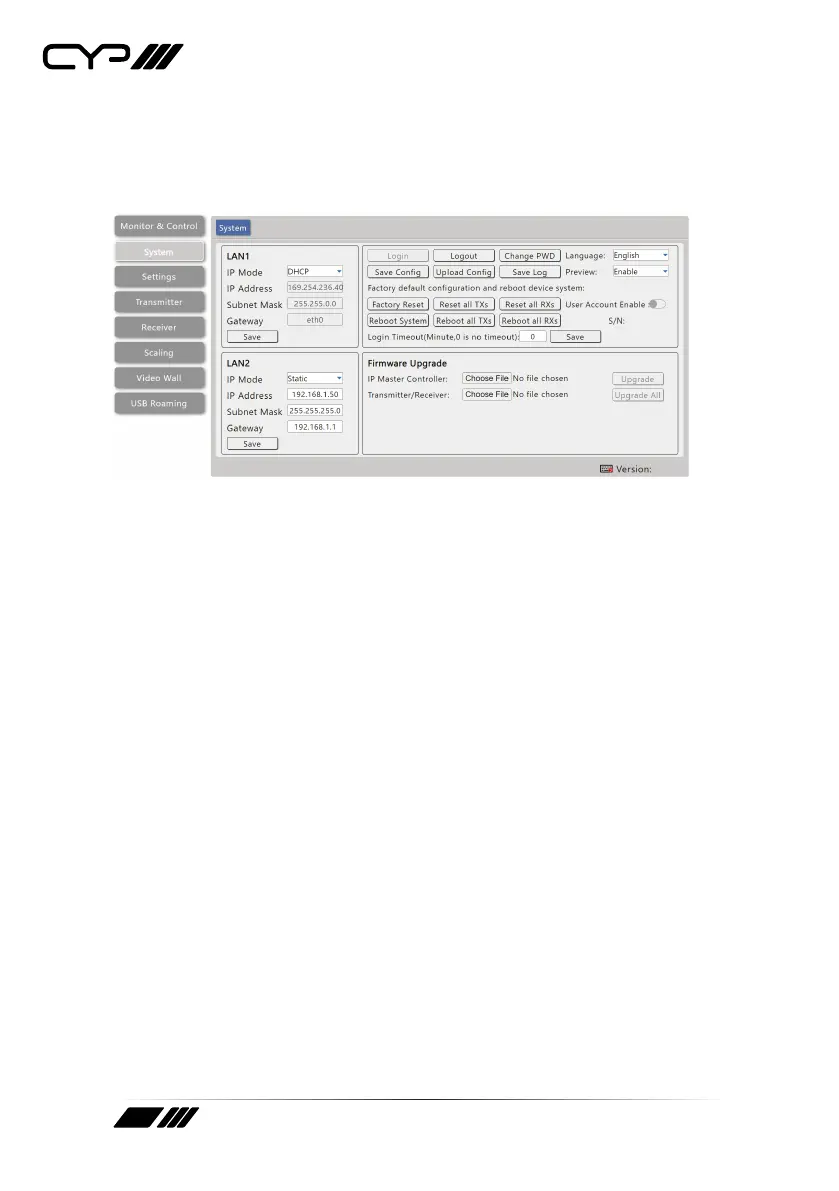

6.6.1 System Tab
This tab provides access to system conguration options including IP
conguration for both LAN ports, interface language, preview control,
login and user management, and rmware update functionality.
1) LAN 1 & LAN 2: The IP mode for each LAN port (DHCP, Auto IP, or
Static IP), IP address, netmask, and gateway can be set here. When a
LAN port is set to “DHCP” mode, it will automatically attempt to obtain
proper conguration information from a DHCP server. When the unit is
set to Auto IP mode it will automatically assign itself an APIPA address
from the 169.254.xxx.xxx range. To congure the network settings
manually, please set the LAN port to “Static IP” mode and enter the
information as appropriate for the connected network. Press “Save” to
activate the changes. The MAC address for each port is also displayed
here.
Note: If the devices being controlled have been set to “Auto IP” mode then
LAN 1 should be set to DHCP. With no DHCP server available, LAN 1 will
automatically assign itself an APIPA address from the 169.254.xxx.xxx
range allowing it to discover and control Auto IP devices.
2) System Commands:
Login/Logout: Click these buttons to log into or out of the WebGUI
interface.
Note: When not logged in, only the “Monitor & Control” and “System”
tabs are available.
Change PWD: Click this button to change the WebGUI’s
administrator login password.
Note: The default administrator user name and password is “admin”.
The administrator user name cannot be changed.
