6. OPERATION CONTROLS AND FUNCTIONS

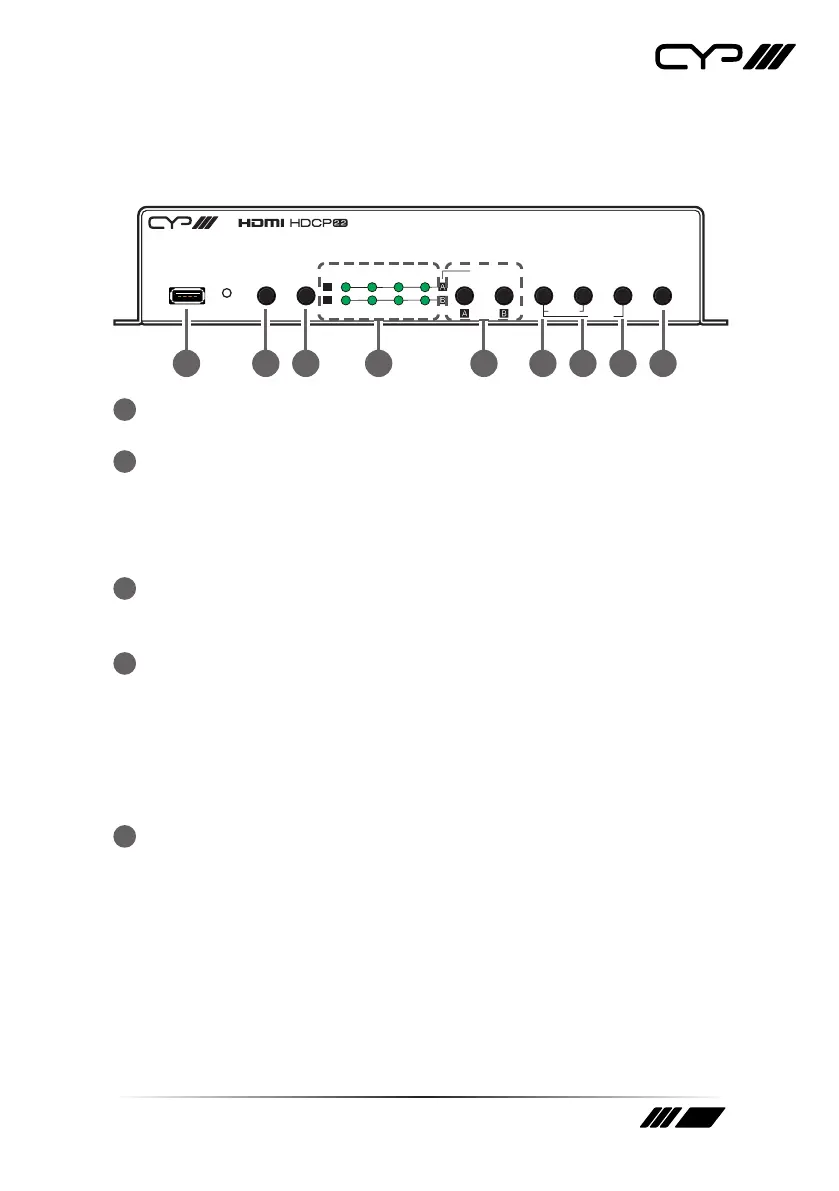

6.1 Front Panel
A
B
SERVICE
POWER
1080P
XGA
IN 1
IN 1 IN 2 IN 3 IN 4
MENU -+ENTER
IN 2 IN 3 IN 4 OUT
VIDEO
MODE
EL-XTREAM-PIP
1234 56789
1
SERVICE Port: This port is reserved for firmware update and user
EDID/ logo upload use only.
2
POWER LED & Button: Press this button to power the multiviewer
component of the unit on (green LED) or place it into stand-by mode
(red LED).
Note: Ethernet and RS-232 remain active when the unit is in stand-by
mode. Does not aect the video capture component of this unit.
3
VIDEO MODE Button: Press this button to sequentially switch the
multiviewer component’s operational mode between Matrix, PiP, PoP,
and Quad.
4
OUT A~B/IN 1~4 LED Array: In Matrix mode, these LED’s indicate
the currently selected sources (IN 1~4) routed to each of the two
outputs (OUT A~B). When the multiviewer component is in a multi-
windowing mode (PiP/PoP/Quad/ Preset) all LEDs will be illuminated
simultaneously.
Note: When source selection is active the associated output’s LED(s) will
blink.
5
OUT A/B Buttons: In Matrix mode, either of these buttons to activate/
deactivate discrete source selection for the associated output. In
multi- windowing modes (PiP/PoP/Quad/Preset) either button will
activate/ deactivate sequential source selection for the 4 windows.
Note: These buttons only activate/deactivate the ability to change
sources. Actual source selection is accomplished using the IN 1~4 buttons.
