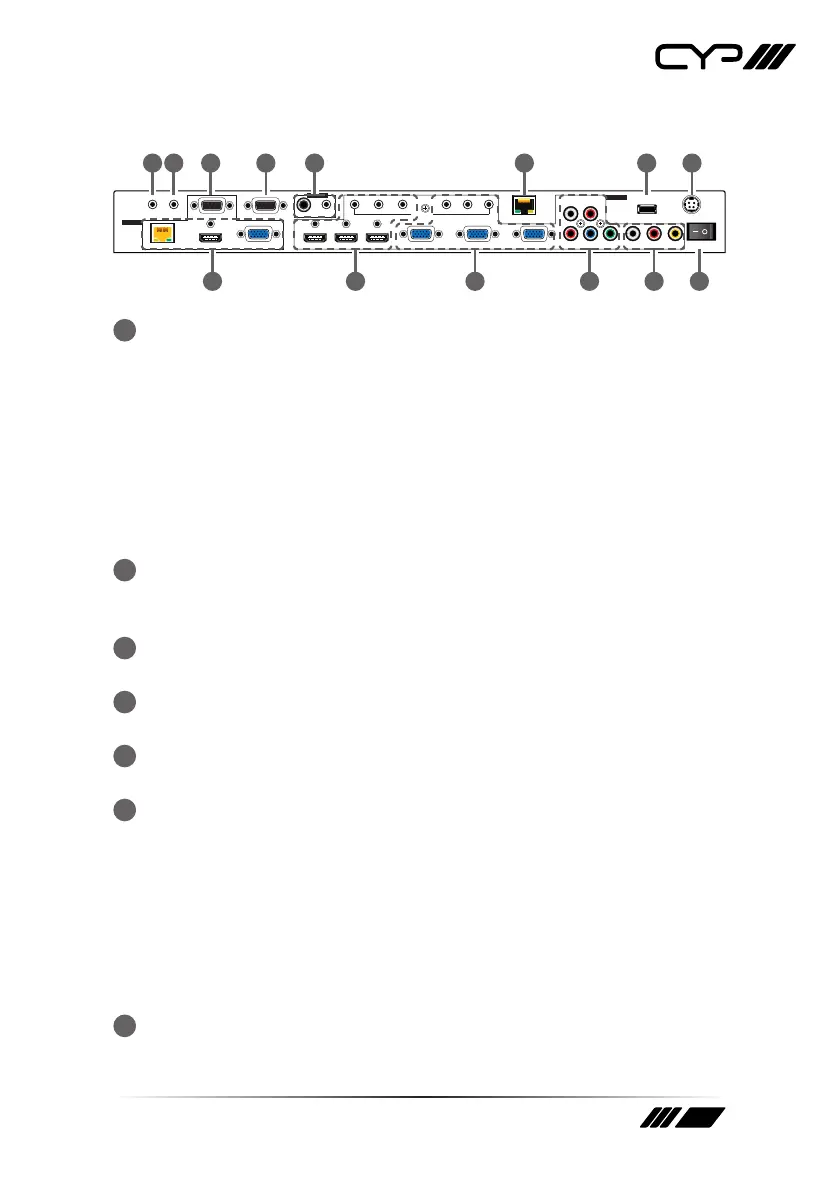

6.2 Rear Panel
RS-232 BYPASS RS-232
COAX. AUDIO
LAN
AUDIO
INPUT
SERVICE
HDMI HDMI 1 HDMI 2 HDMI 3PC 1PC 2PC 3Cr/Pr Cb/Pb YRLCVPOWER
DC 24V
PC/HD
OUTPUT
IR
BLASTER
IR
RL
EXTENDER
CAT5e/6/7
OUTPUT
1 7
8
9 10 13
2 3 4 5 6
11 12 14
1
CAT5e/6/7 OUT: Connect to a compatible HDBaseT Receiver with a
single Cat.5e/6/7 cable for transmission of all data signals.
HDMI OUT: Connect to an HDMI TV, monitor or amplifier for digital
video and audio output.
PC/HD OUT: Connect to a monitor/display for video output. For HD
(Component) output, use the supplied D-Sub 9-pin to 3 RCA adaptor
cable for HD resolutions from 480p~1080p.
Note: When the selected HDMI input source signal has HDCP content the
VGA/Component output will not display any image.
2
IR EXTENDER: Connect to the provided IR Extender to extend the
IR control range of remotely located devices. Ensure that the remote
being used is within direct line-of-sight of the IR Extender.
3
IR BLASTER: Connect to an IR Blaster to transmit IR signals to devices
within direct line-of-sight of the IR Blaster.
4
RS-232 BYPASS: Connect to a PC, laptop or other serial control device
for the extension of RS-232 signals across the HDBaseT connection.
5
RS-232: Connect directly to a PC, laptop or other serial control device
to send RS-232 commands to control the unit.
6
COAX OUT: Connect to an amplifier or active speakers for digital
audio output.
Note: When the AUDIO SOURCE setting is set to “AUTO” the coaxial output
supports passing standard HDMI 1.2 bitstream formats.
AUDIO OUT: Connect to an amplifier or active speakers for audio
output in stereo format.
Note: If the source format is bitstream, this output will be muted
automatically.
7
HDMI IN 1~3: Connect to HDMI source equipment such as media
players, game consoles or set-top boxes.
