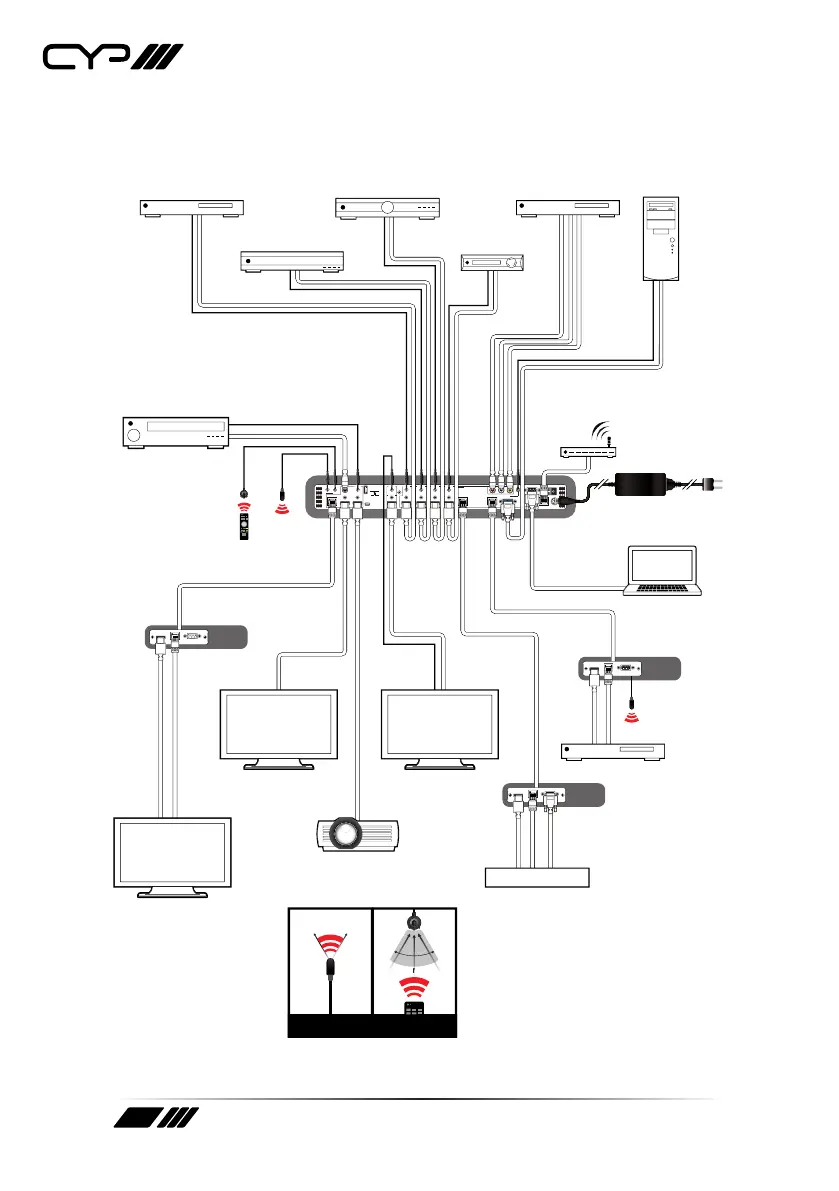

7. CONNECTION DIAGRAM
IR IN
HDMI 1 HDMI 2
SERVICE 2
COAX
AUDIO
AUDIO AUDIO 7AUDIO 1AUDIO 2AUDIO 3AUDIO 4
HDMI
BYPASS
CAT5e/6/7CAT5e/6/7 CAT5e/6/7PC
HDMI 1HDMI 2HDMI 3HDMI 45 67
INPUT
RLCV
8
LAN
RS-232
DC 24 V
OUTPUT
IR OUT
SERVICE 1
ON OFF
DSP PROG.
RS-232 Out
LA
N
HDMI Out
CAT5e/6 to HDMI with LAN/IR/RS232
Receiver
RS-232 In
LAN
HDMI In
HDMI to CAT5e/6 with LAN/IR/RS232
Transmitter
RS-232 In
LAN
HDMI In
HDMI to CAT5e/6 with LAN/IR/RS232
Transmitter
IR BLASTER
1.5m
60°
IR RECEIVER
7m
3m 3m
60°
m
Blu-ray Player
DVD Player
PC
Satellite
Receiver
Set-top Box
HDMI &
Analogue
Audio
Bypass
Outputs
HDMI &
Analogue
Audio
Inputs
Coaxial
Digital &
Analogue
Audio
Outputs
HDMI
Outputs
HDMI & LAN
Connections
HDMI, LAN
and RS-232
Connections
HDMI, LAN
and IR Out
Connections
CV &
Analogue
Audio
Inputs
VGA &
Analogue
Audio
Inputs
Power Supply
CAT5e/6/7 Inputs
CAT5e/6/7 Output
AV Receiver
HDTV
HDTV
Smart TV
Media Server
Blu-ray Player
Projector
TX
PC/Laptop
or RS-232
Control
System
Router with
Internet
Connection
Games Console
TX
RX
